Max 2000 Meters Control Distance
Same FHSS* spread spectrum algorithm as AT9S and 67-channel pseudo-random frequency hopping help reduce overall signal interference. 2000 meters* range enables all possible RC fun. The maximum PWM jitter is 1.84us with a standard of just 0.5us.
- * Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.
- * Maximum range is tested in an unobstructed area free of interference.
Mini Enough for Mini Racing Drone
Weight of 2g and small size of 18x13mm make the R8SM receiver tiny enough even for mini racing drone and glider.
SBUS or PPM Signal Output
8 channels of SBUS/PPM signal output. Compatible with flight controllers such as PIXHWAK, MINI PIX, TURBO PIX, APM, F4, F7 and etc.

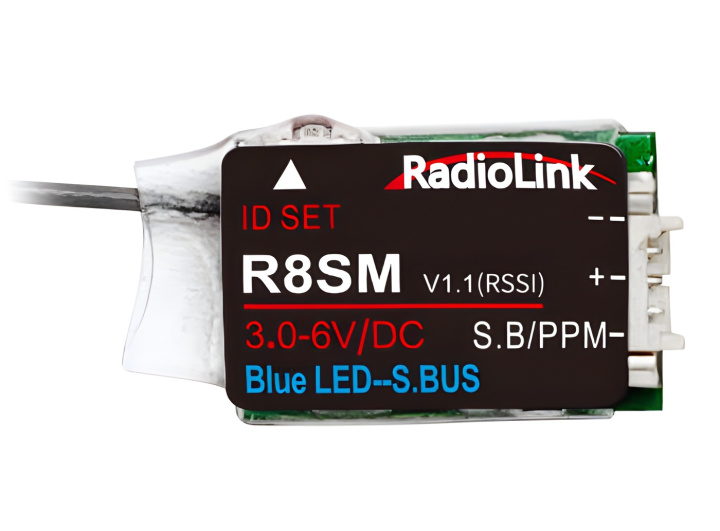

R8SM Receiver Specs:
- Size: 18x13mm
- Antenna Length: 90mm
- Weight: 2g
- Channels: 8
- Operating Voltage: 3~6V
- Operating Current: 38-45mA@5V
- Signals: SBUS/PPM
- Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum Mode: FHSS, 67 channels pseudo-random frequency hopping
- Section Precision: 4096, 0.25us per section
- Applicable Model Types: Racing Drone, Multicopter
- Control Distance: Max 2KM in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
- Operating Temperature: -30° to 85°C
- Compatible Transmitters: T8FB(BT), T8S(BT), T8FB(OTG), T8S(OTG), RC8X, RC6GS V3, RC6GS V2, RC6GS, RC4GS V3, RC4GS V2, RC4GS (must work with flight controller)
