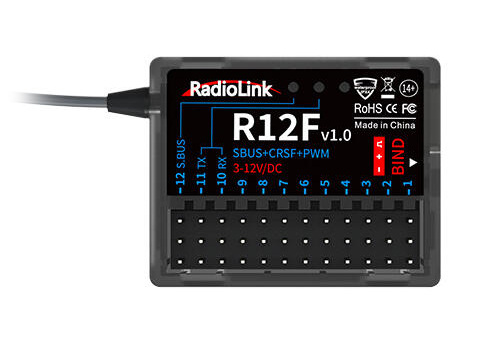

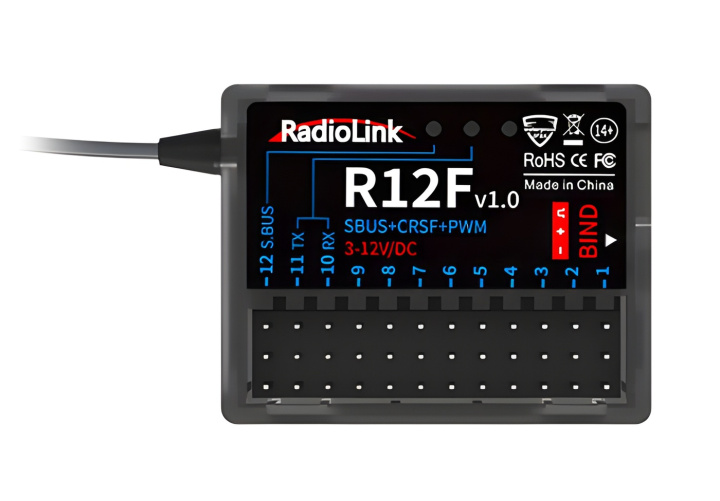

RadioLink R12F Receiver
4000 Meters Control Distance
FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously, and helps protect from fuel engine spark and ensures the safety of enjoying fuel-powered model cars. 600 meters stable offshore control distance and 4000 meters air control distance.
Built-in Simulator Communication
R12F come with built-in PC Game Joystick communication program(requires a firmware upgrade to V1.6), so it supports the latest simulator by connecting to the computer directly via Type-C port,such as TRYP FPV, AeroFly, Uncrashed, liftoff, FPV LOGIC, Velocidrone (Black Sheep Simulator) and other open source simulators. No need to supply additional power to the receiver.It can be used on both Apple and Windows computers.
Compatible transmitters：T16D/T12D/T8FB/T8S/RC8X/RC4GS V2/RC4GS V3/RC6GS V2/RC6GS V3
PWM, SBUS, and CRSF Signal-supported
- PWM working mode: Red LED always on indicates PWM signal output, 12 channels total.
- PWM+SBUS working mode: Blue and red LED always on indicates PWM+SBUS signals output. CH1 to CH11 is with PWM signal output while CH12 is with SBUS signal output. Users can personalize signal output mode to fully enjoy the fun of a model bait boat or car with FPV.
- PWM+CRSF+SBUS working mode: Blue, green, and red LED always on indicates PWM+CRSF+SBUS signals output. CH1 to CH9 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol, and CH12 outputs the SBUS signal.
- CRSF+PWM working mode: Green and red LED always on indicates PWM+CRSF signals output. CH1 to CH9, and CH12 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol.
R12F Receiver Specs:
- Dimensions: 35.6x25x13.6mm
- Weight: 11.8g
- Antenna Length: 205mm
- Channels: 12
- Operating Voltage: 3-12V
- Operating Current: 37±3mA @5V
- Signal Output: SBUS, CRSF & PWM
- Output Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping
- Channel Resolution: 4096 with regular jitter of 0.25us
- Adaptable Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, Robot
- Control Distance: Up to 4000 meters in the air (Maximum range is tested in an unobstructed area free of interference)
- Upgrade Online: With a Type-C cable (for data transmission) connecting the R12F to the computer, the latest cutting-edge functions can be easily added without any extra devices.
- Response Latency: 3ms, 4ms, 14ms can be selected
- Simulator Function: R12F comes with a built-in PC Game Joystick communication program(requires a firmware upgrade to V1.7), so it supports the latest simulator by connecting to the computer directly via Type-C port, such as TRYP FPV, AeroFly, Uncrashed, liftoff, FPV LOGIC, Velocidrone (Black Sheep Simulator), and other open-source simulators. No additional power is needed for the receiver. It can be used on both Apple and Windows computers.
- Operating Temperature: -30° to 85°C
- Compatible transmitters: T16D, T12D, T8FB, T8S, RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS & RC4GS
