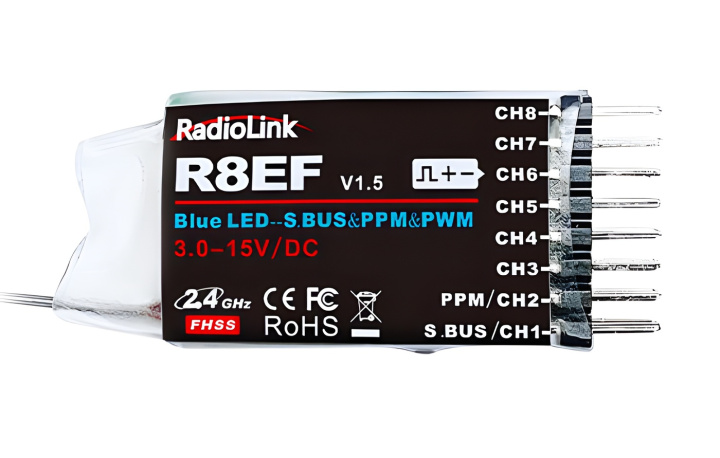

RadioLink RLR8EF - 8 Channel Receiver
2000 Meters Control Distance
Same FHSS* spread spectrum algorithm as AT9S Pro and 67-channel pseudo-random frequency hopping help reduce overall signal interference. 2KM* Range enables all possible RC fun. The maximum PWM jitter is 1.84us with a standard of just 0.5us.
- Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.
- Maximum range is tested in an unobstructed area free of interference.
SBUS/PPM and PWM Signals Output
8 channels. SBUS/PPM and PWM can operate simultaneously for seamless user control. Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat and Robot. Wide operating voltage tolerance that from 3 to 12 volts.
Specs:
- Size: 41.5x21.5x11.5mm
- Antenna Length: 210mm
- Weight: 7g
- Channels: 8
- Signals: SBUS&PPM&PWM
- Operating Voltage: 3-15V
- Operating Current: 38-45mA @ 5V
- Output Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping
- Section Precision: 4096, 0.25us per section
- Adaptable Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, Robot
- Control distance: 2000 meters in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
- Compatible transmitters: T16D, T12D, T8FB, T8S, RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS, RC4GS
- Operating Temperature: -30° to 85°C
