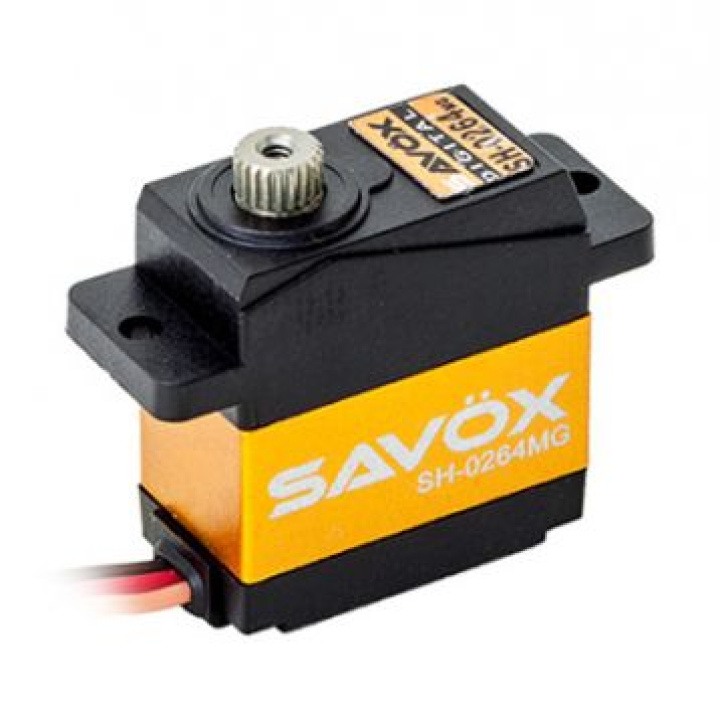

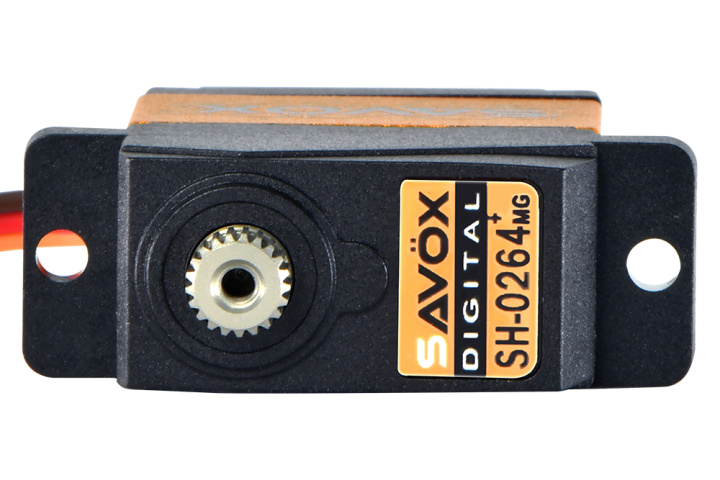

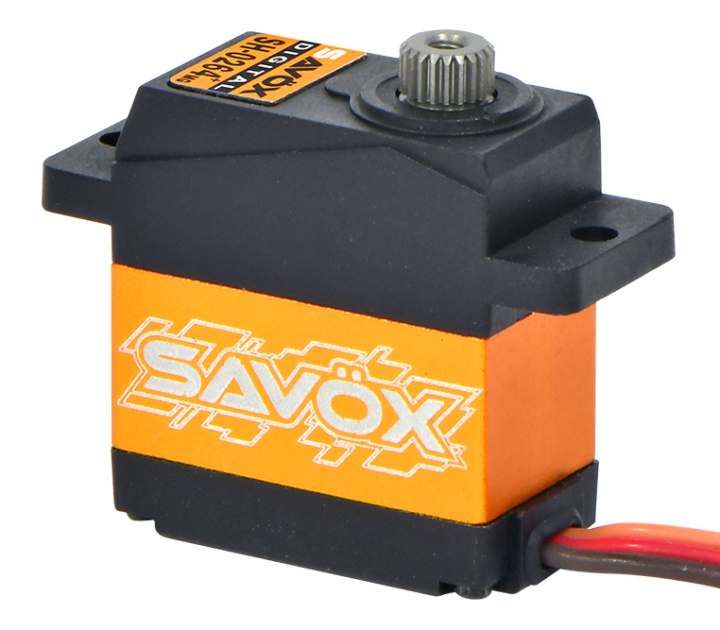

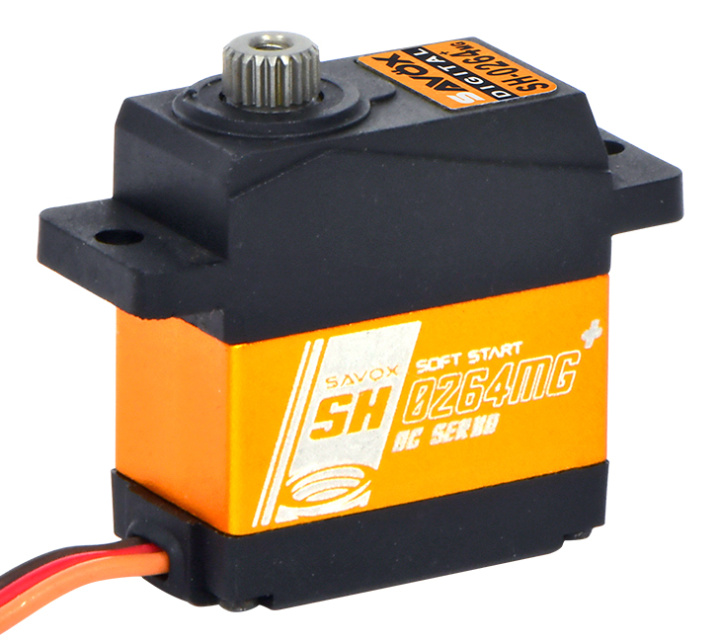

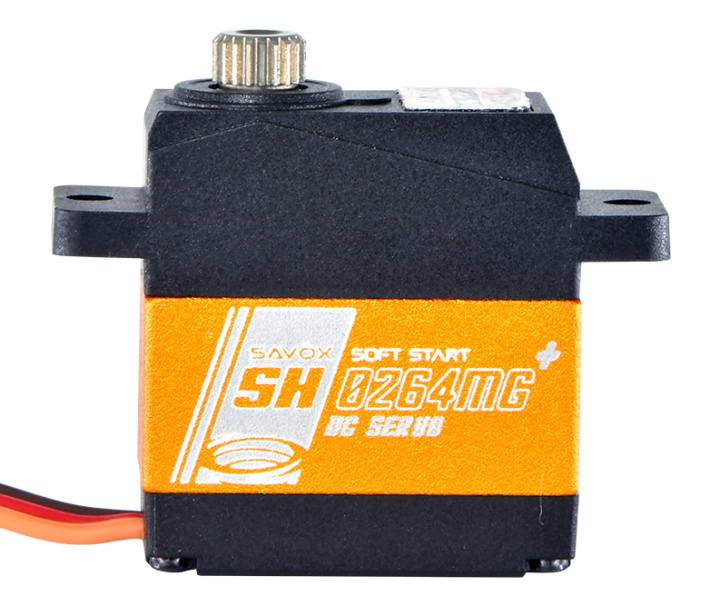

SAVÖX SAV-SH0264MGPLUS - Micro Servo
Savöx Original Line
Known for its iconic orange design, the Original Line covers a wide spectrum of performance - from reliable value models to proven competition-grade servos. These are the workhorses of the Savox lineup, used across countless RC platforms.
Whether you're racing, bashing, or boating, the Original Line offers dependable control backed by years of real-world use. It’s our most versatile range - and the backbone of the Team Savox ecosystem.
Specifications:
- Line: ORIGINAL LINE
- Application: CAR/HELI/AIRPLANE
- Servo Size: Micro
- Operating Voltage: 4.8V-6.0V
- Speed @ 4.8V: 0.08 s/60°
- Torque @ 4.8V: 0.8 kg/cm
- Speed @ 6.0V: 0.06 s/60°
- Torque @ 6.0V: 1.2 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: DC
- Case Type: Hybrid (Aluminium/Composite)
- Protection: Dust Resistant

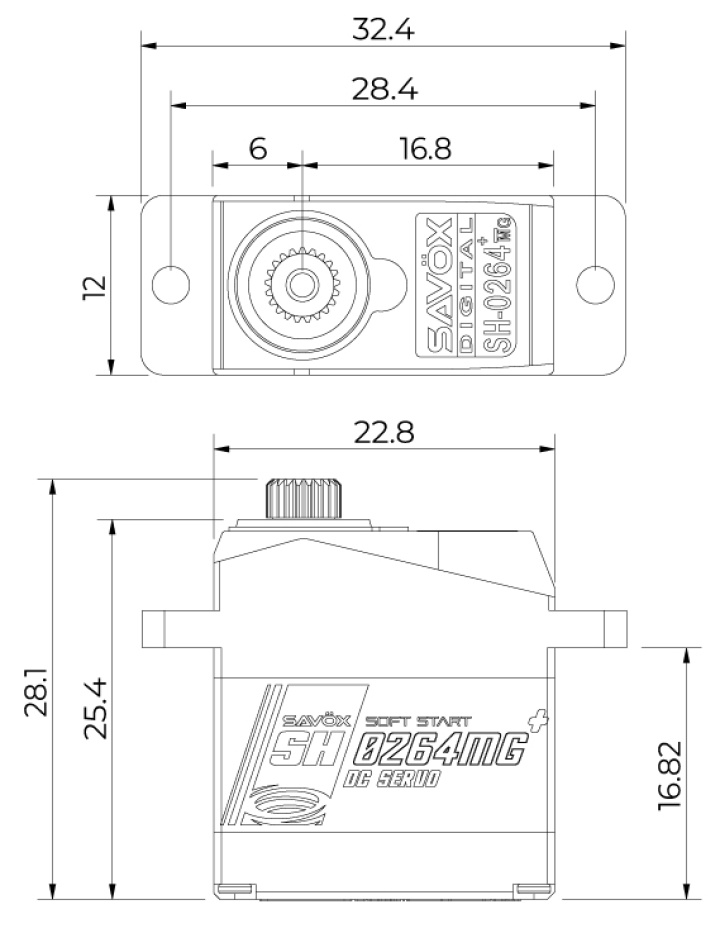

- Dimensions (L x W x H): 22.8x12x25.4mm
- Weight: 15g

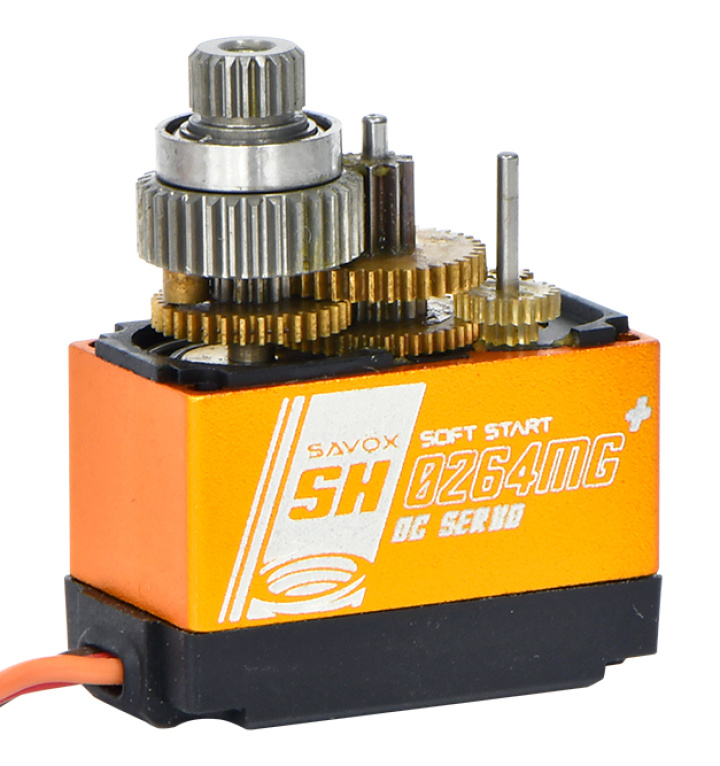

- Gear Type: Heavy-Duty Metal
- Compability: Normal
- PCB Board: 10-bit
- Horn Gear Spline: 21T (Φ4.8)
- Rotating Direction: Clockwise (when 1000→2000 μsec)
- Max Travel: ~130° (when 800→2200 μsec)
- Operating Travel: 90° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearings: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 26AWG
- Cable Length: 250 ±5mm
- Connector: JR/Universal Connector
- Stall Current @ 4.8V: 1200mA
- Operating Current @ 4.8V: 150mA
- Stall Current @ 6.0V: 1400mA
- Operating Current @ 6.0V: 180mA
- Idle Current: 5 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360Hz
- Control System: Pulse width modification
- Operating Temperature: -10°C to 50°C
