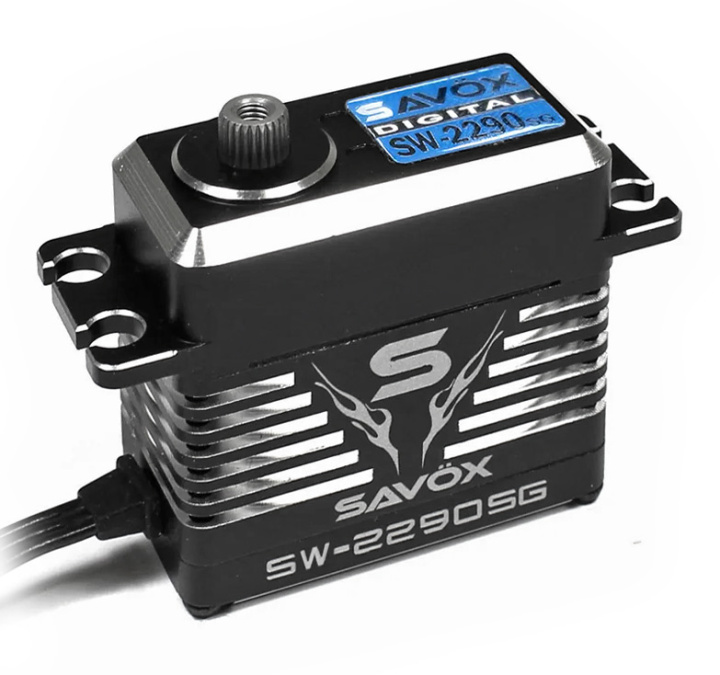

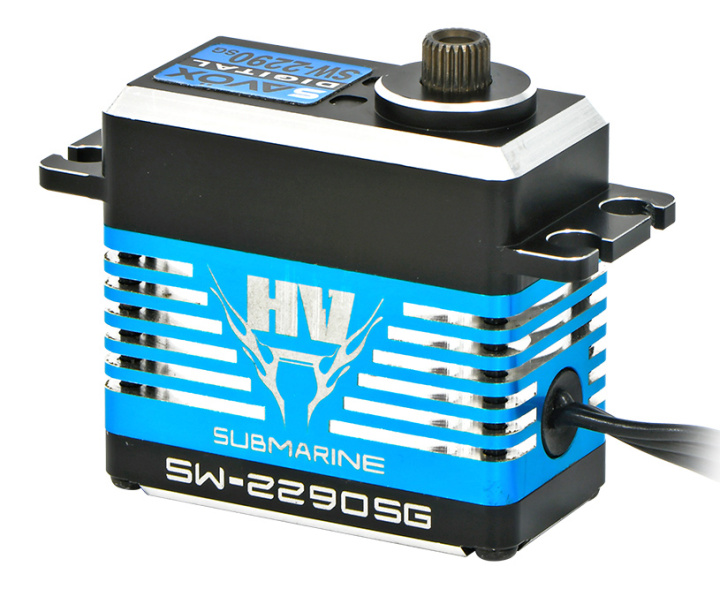

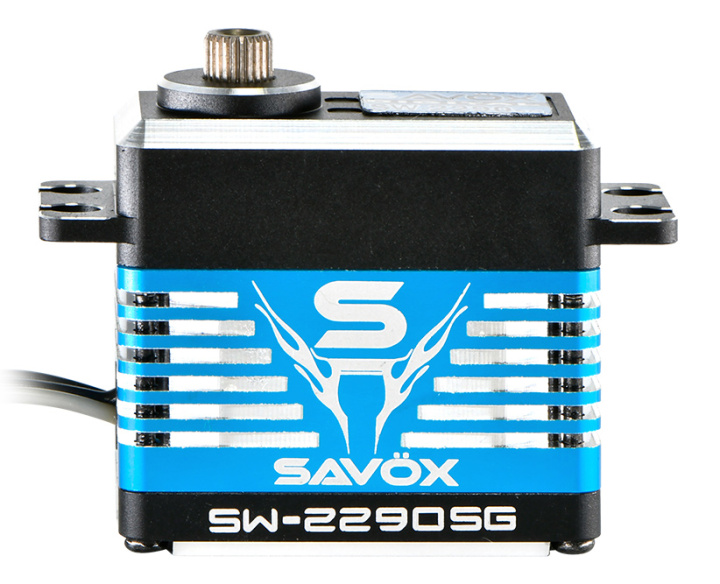

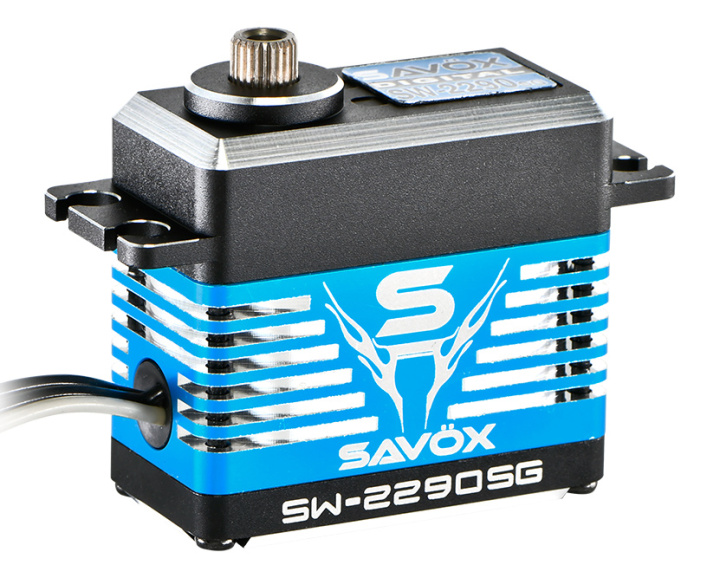

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.Features:
- Waterproof (IP67)
- Full Aluminum Case
- 3 Precision Ball Bearings
- Unique steel gears
Specifications:
- Line: BLUE LINE
- Application: CAR/BOAT
- Servo Size: Standard
- Operating Voltage: 6.0V-8.4V
- Speed @ 6.0V: 0.16s/60°
- Torque @ 6.0V: 45.0kg/cm
- Speed @ 7.4V: 0.13s/60°
- Torque @ 7.4V: 55.0kg/cm
- Speed @ 8.4V: 0.11s/60°
- Torque @ 8.4V: 70.0kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Patented Lightweight Brushless
- Case Type: Aluminum
- Protection: Waterproof (IP67)

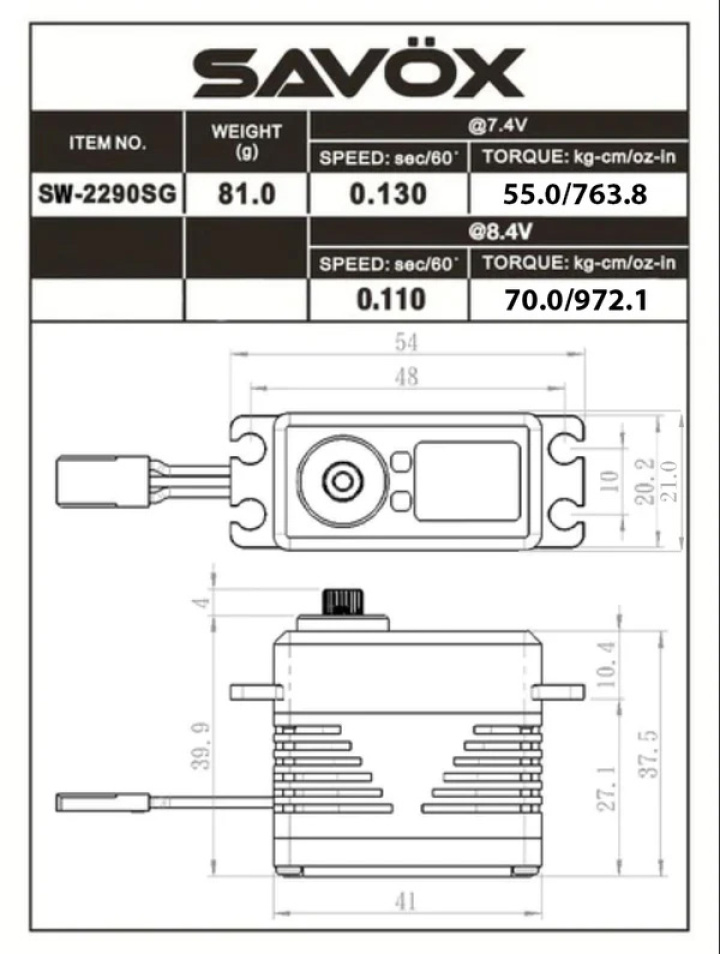

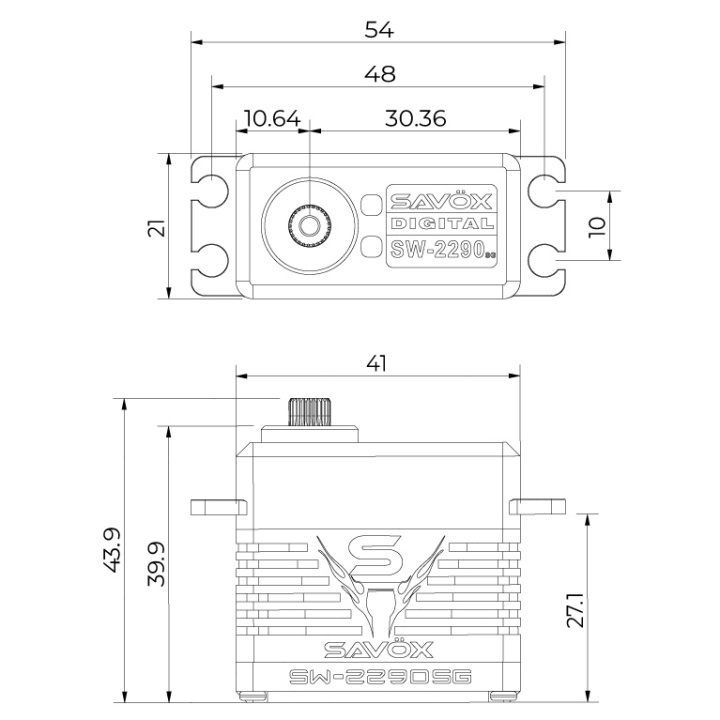

- Dimensions (LxWxH): 41x21x39.9mm
- Weight: 88g

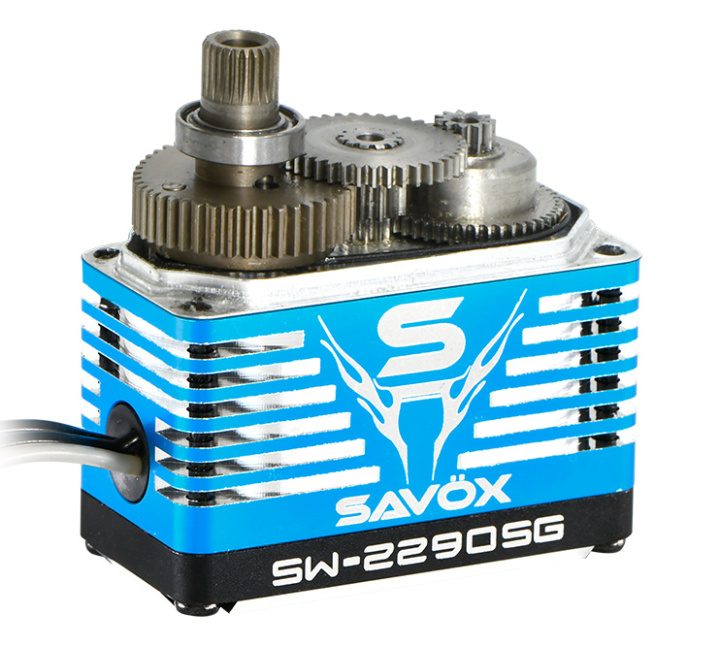

- Gear Type: Special Steel
- Compatibility: Normal
- PCB Board: 12bit 4096, Softstart, Lock protection
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000μsec)
- Max Travel: ~130° (when 900→2100μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 3x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 450mm ±5 mm
- Connector: JR
- Stall Current @ 6.0V: 7200mA
- Operating Current @ 6.0V: 200mA
- Stall Current @ 7.4V: 9200mA
- Operating Current @ 7.4V: 220mA
- Stall Current @ 8.4V: 10500mA
- Operating Current @ 8.4V: 250mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
