Viper Jet MKII EDF (120 mm)

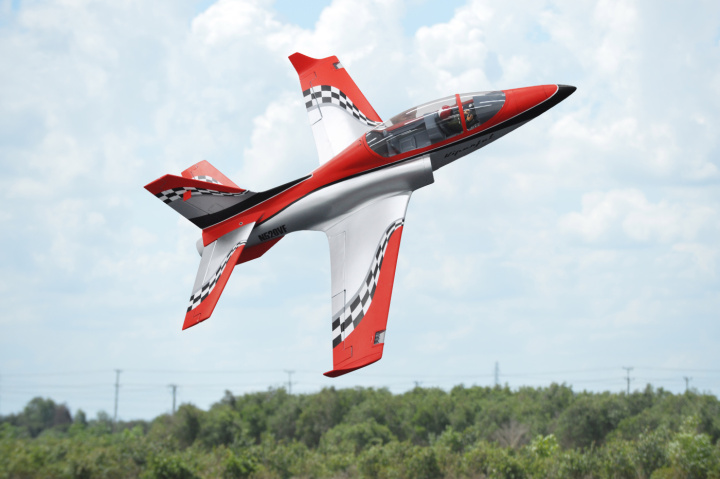

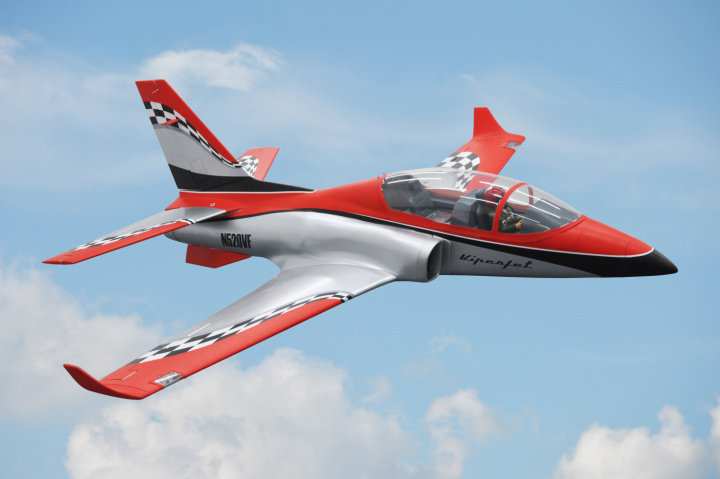

The Viper Jet is a streamlined civil jet with a distinctive scale silhouette. This new edition of the Black Horse Viper Jet MKII for 120 mm EDF comes in a silver and red livery and keeps the familiar 1885 mm span. It is built from balsa and plywood and covered in polyester film that is durable, light and easy to repair.
New on this edition is the Smart lock system: wings and stabiliser fit without any tools. Fuselage and wing separate for compact transport, and the removable canopy gives quick access for battery changes and radio set-up. With electric retracts and oleo struts, this is a jet for expert pilots. Supplied almost ready to fly (ARTF) with CNC metal suspension struts and a retract controller box.
Highlights
- Smart lock quick assembly – wings and stabiliser without tools (new)
- Separate fuselage and wing for compact transport
- Removable canopy for easy battery changes and radio set-up
- Full-depth cockpit with instrument panel and pilot
- All balsa and plywood construction, covered in polyester film
- Electric retracts with CNC full-metal suspension struts and controller box (included)
- High-quality hardware package included
Specifications
| Wingspan | 1885 mm |
| Length | 1820 mm |
| Flying weight | 8.9–9.1 kg |
| Wing area | 62.2 dm² |
| Wing loading | 143.1 g/dm² |
| Wing profile | NACA Airfoil |
| Landing gear | Electric retracts with oleo struts and controller box (incl.) |
| Covering | Polyester film |
| Colour | Silver/red |
| Box dimensions | 1700 × 490 × 435 mm |
What you need (not included)
| Radio | 8+ channels |
| Servos | 8x standard high-torque (33 × 17 mm) |
| Ducted fan (EDF) | 120 mm |
| Speed controller (ESC) | 160 A |
| Battery (LiPo) | 10–12S (37–44.4 V) |
| Option 1 | JETFAN-120 eco (Ejets+) with HET 800-68-685 motor, 12S LiPo ≥ 6000 mAh 70C |
| Option 2 | Schübeler DS-86-AXI HDS 120 mm with TP 5660-9D motor, 10S LiPo ≥ 6000 mAh 70C, Castle Phoenix 160 A |
Specifications according to the manufacturer. Fan, motor, ESC, radio, servos and battery are not included unless otherwise stated.
