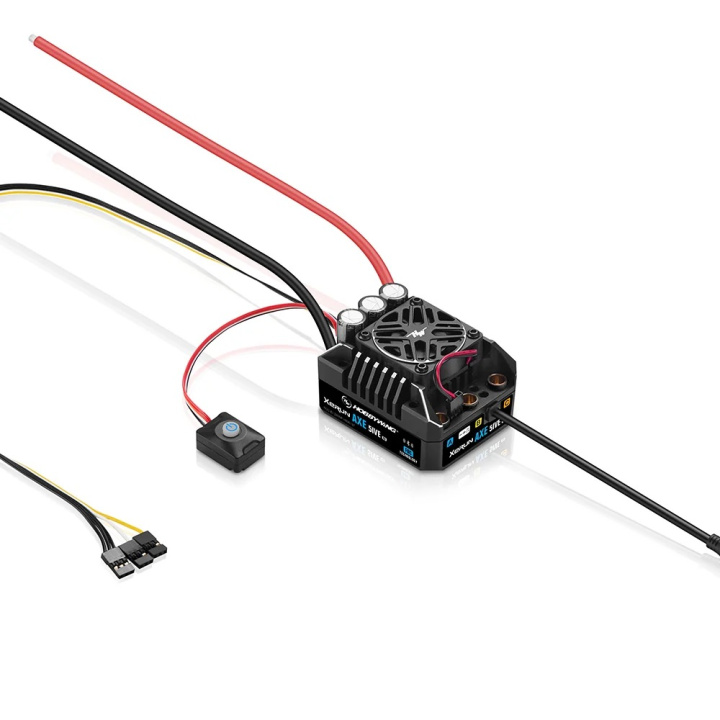

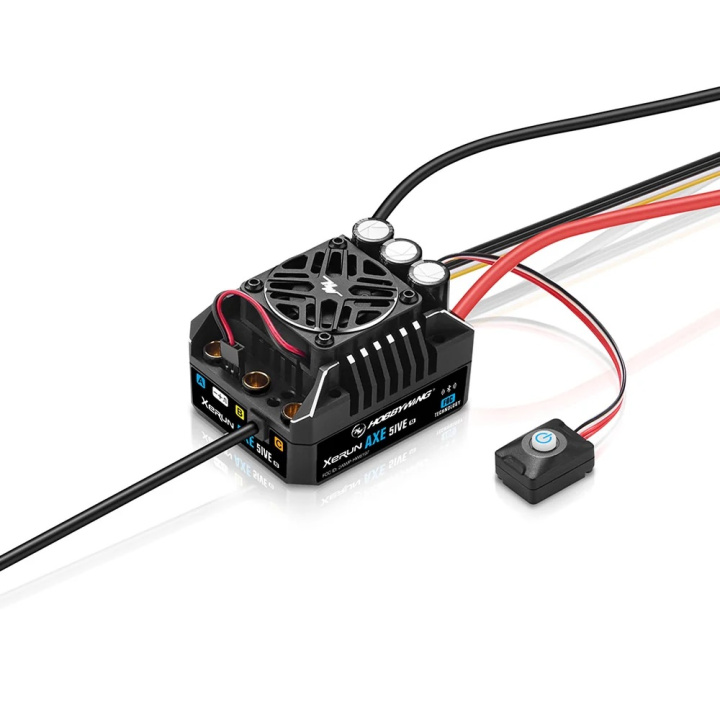

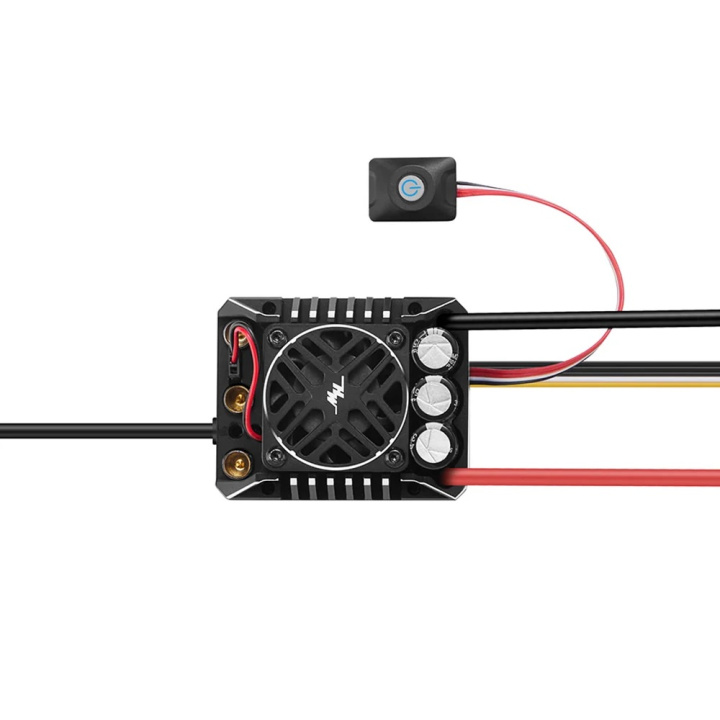

Hobbywing 30114000 – XeRun AXE 5IVE R3 220A 3-8S Crawler ESC
Sensored FOC brushless crawler ESC for 1/5 and 1/6 scale crawlers: 3–8S LiPo, 220 A continuous, 6–14 V BEC and built-in Bluetooth.
The XeRun AXE 5IVE R3 is Hobbywing's high-power FOC ESC for large-scale crawlers. FOC (Field Oriented Control) gives very strong, smooth torque at the lowest speeds and runs almost silently. Intelligent torque control and closed-loop speed control keep motor rpm steady under changing loads – adding torque uphill and holding back the speed downhill. The ESC is designed for the XeRun AXE 4987 R3S motor and also works with the AXE 4274 R3.
Features
- 3–8S LiPo, 220 A continuous / 900 A peak current
- Ultra-high-voltage BEC, adjustable from 6 to 14 V in 0.1 V steps (15 A, up to 35 A max) – for HV servos, lights and winches
- Two auxiliary channels (white and yellow signal wires) for adjusting settings such as drag brake from the transmitter while driving
- Drag brake up to 200% for strong holding power on slopes
- Built-in Bluetooth – settings, live data and firmware updates via the HW Link app, no extra module required
- Four driving modes, 22 adjustable parameters and up to 24° Turbo timing
- Smart fan that only runs when needed (can be disabled)
- IP67-rated water and dust protection
- Protections: low-voltage cutoff, thermal protection, fail-safe and motor lock-up protection
- Telemetry and ESC tuning with FlySky NB4 series radios (requires a FlySky firmware update)
Specifications
- Input: 3–8S LiPo
- Current: 220 A continuous / 900 A peak
- BEC: 6–14 V adjustable, 15 A
- Input wires: 10 AWG, 300 mm (no battery connector fitted)
- Motor connectors: 6.5 mm female
- Fan: 40 × 40 × 10 mm, powered by the BEC
- Programming: built-in Bluetooth (HW Link app)
- Size: 70.2 × 56.3 × 45.5 mm
- Weight: 308.2 g (incl. wires)
- Scale: 1/5 and 1/6 rock crawlers
- Compatible motors: XeRun AXE 4987 R3S and AXE 4274 R3 (4274 R3: 3–6S only)
Note: most receivers are rated for 9 V or less. Check your receiver before setting the BEC above 8.4 V.
In the box
- 1 × XeRun AXE 5IVE R3 ESC
