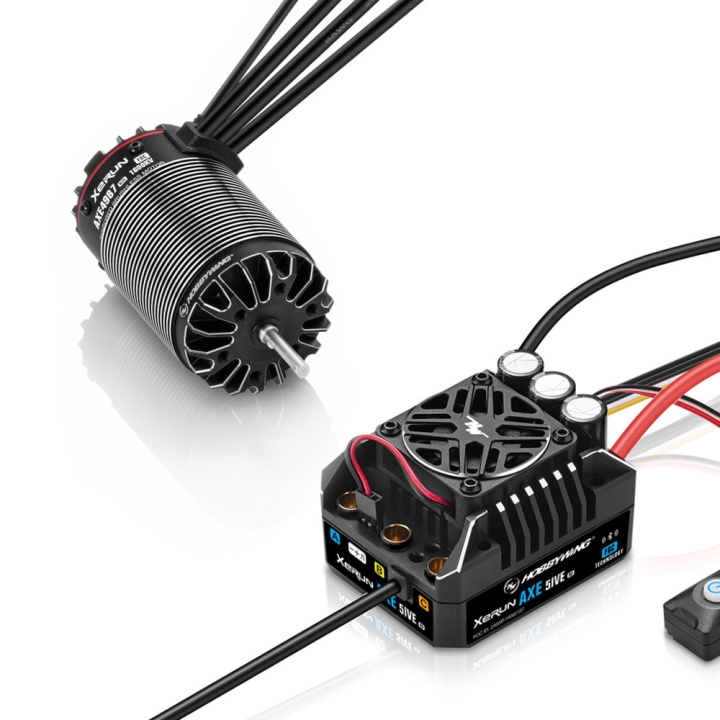

Hobbywing 38020600 – XeRun AXE 5IVE R3 + AXE 4987 R3S 1600 kV Crawler Combo
Sensored FOC brushless system for 1/5 and 1/6 scale crawlers: XeRun AXE 5IVE R3 ESC (3–8S, 220 A) with XeRun AXE 4987 R3S motor (1600 kV).
The AXE 5IVE R3 combo is Hobbywing's high-power FOC system for large-scale crawlers. FOC (Field Oriented Control) gives very strong, smooth torque at the lowest speeds and runs almost silently. Intelligent torque control and closed-loop speed control keep motor rpm steady under changing loads – adding torque uphill and holding back the speed downhill.

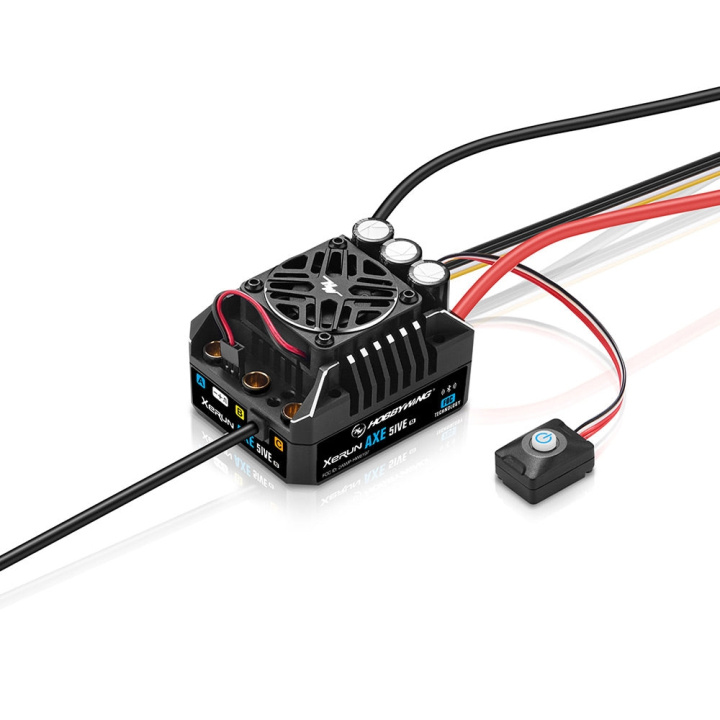

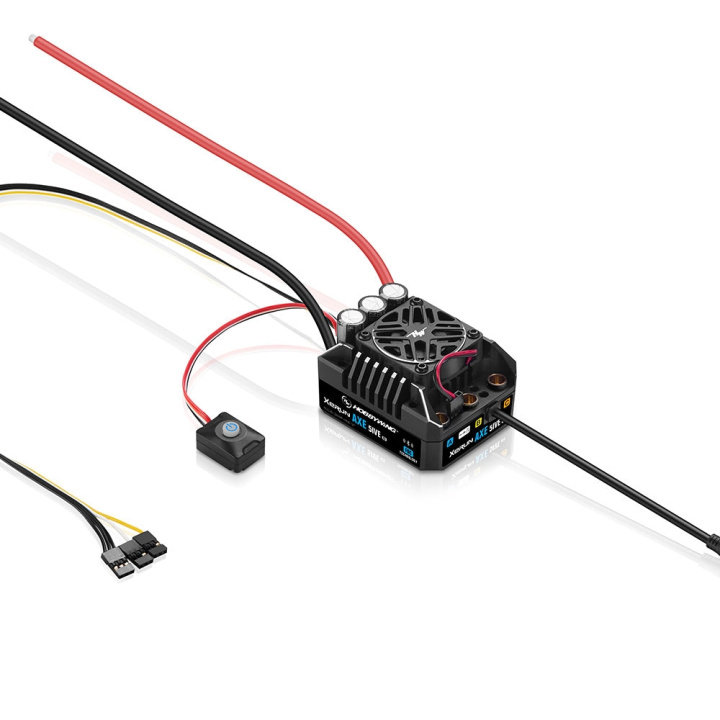

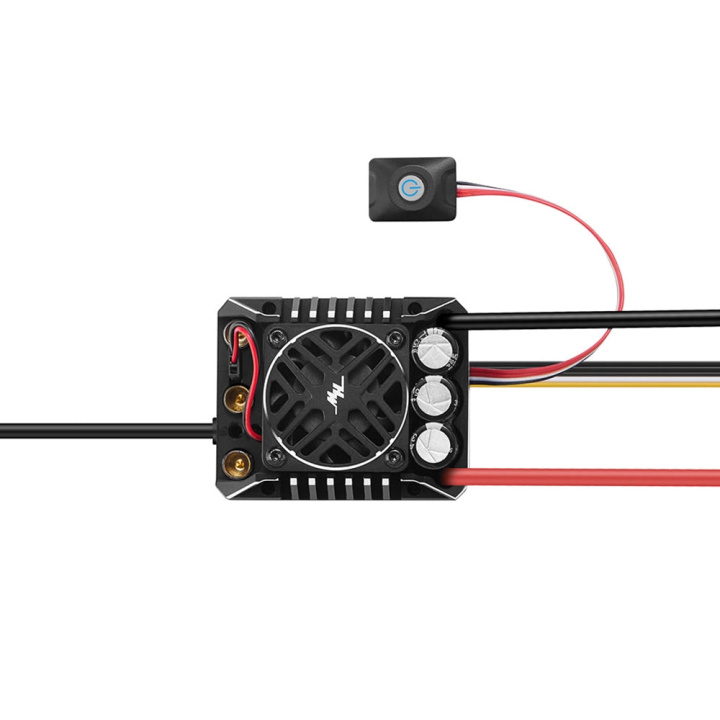

XeRun AXE 5IVE R3 ESC (30114000)
- 3–8S LiPo, 220 A continuous / 900 A peak current
- Ultra-high-voltage BEC, adjustable from 6 to 14 V in 0.1 V steps (15 A, up to 35 A max) – for HV servos, lights and winches
- Two auxiliary channels (white and yellow signal wires) for adjusting settings such as drag brake from the transmitter while driving
- Drag brake up to 200% for strong holding power on slopes
- Built-in Bluetooth – settings, live data and firmware updates via the HW Link app, no extra module required
- Four driving modes, 22 adjustable parameters and up to 24° Turbo timing
- Smart fan that only runs when needed (can be disabled)
- IP67-rated water and dust protection
- Protections: low-voltage cutoff, thermal protection, fail-safe and motor lock-up protection
- Telemetry and ESC tuning with FlySky NB4 series radios (requires a FlySky firmware update)

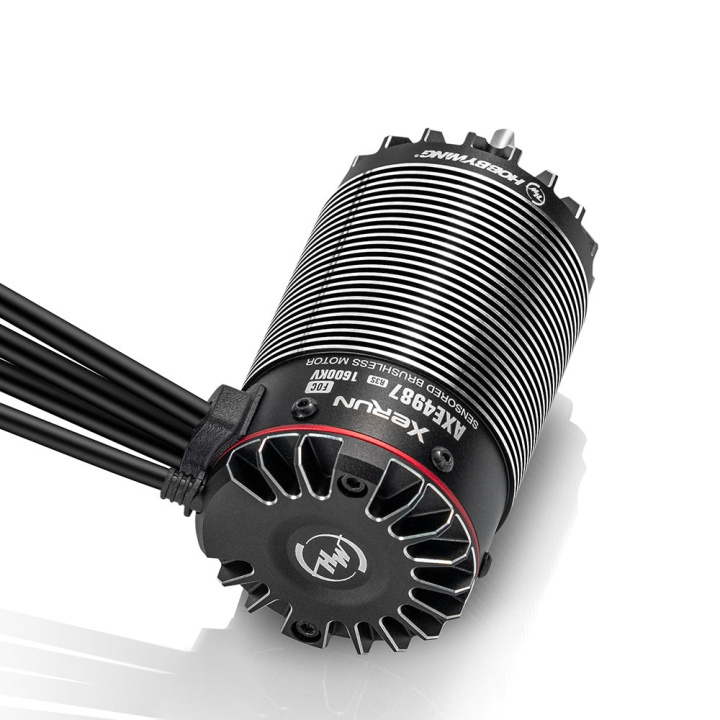

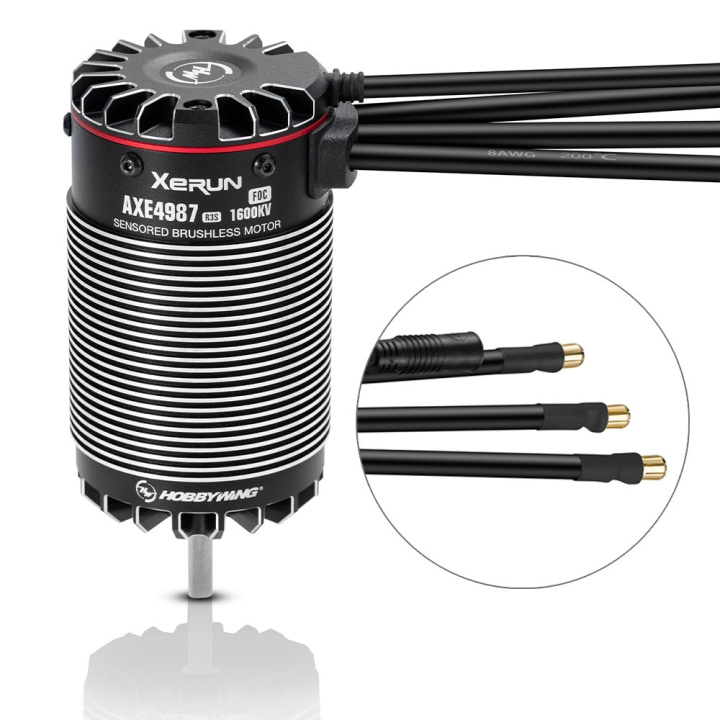

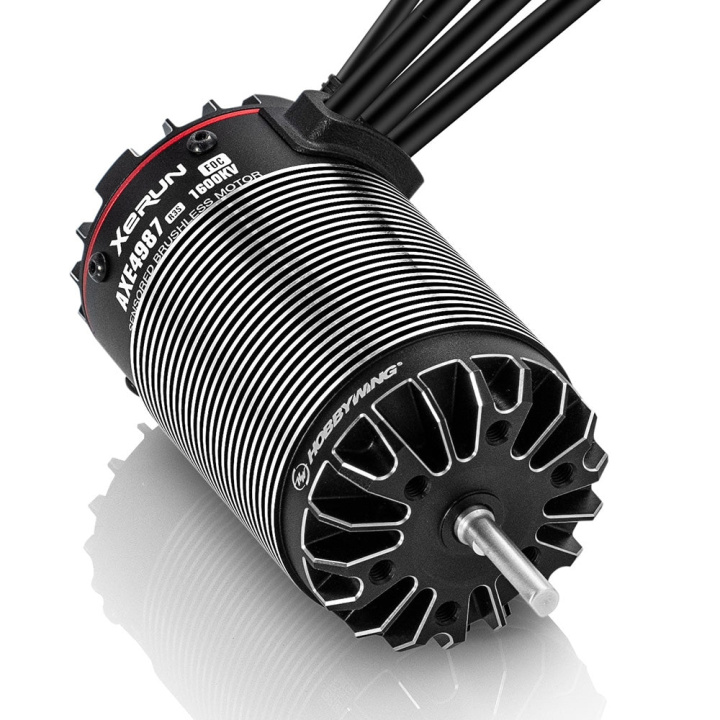

XeRun AXE 4987 R3S motor (30401402)
- 1600 kV on 3–8S LiPo, purpose-built for 1/5 and 1/6 scale crawlers
- Built-in high-precision magnetic encoder – according to Hobbywing 60× more accurate rotor-position data than conventional Hall sensors – for smooth, cogging-free low-speed control
- Compact size: 49.5 × 87 mm
- IP66-rated for rain, snow, mud and sand
- CNC-machined aluminium housing, top-tier bearings, 200 °C-rated enamelled wire and high-strength alloy shaft
Specifications
ESC:
- Input: 3–8S LiPo
- Current: 220 A continuous / 900 A peak
- BEC: 6–14 V adjustable, 15 A
- Input wires: 10 AWG, 300 mm (no battery connector fitted)
- Motor connectors: 6.5 mm female
- Fan: 40 × 40 × 10 mm, powered by the BEC
- Programming: built-in Bluetooth (HW Link app)
- Size: 70.2 × 56.3 × 45.5 mm
- Weight: 308.2 g (incl. wires)
- Compatible motors: XeRun AXE 4987 R3S and AXE 4274 R3 (4274 R3: 3–6S only)
Motor:
- KV: 1600 kV
- LiPo: 3–8S
- No-load current: 12.1 A
- Diameter × length: 49.5 × 87 mm
- Shaft: 5 mm
- Wires: 10 AWG × 300 mm × 3
- Connectors: 6.5 mm male
- Weight: 660 g
- Protection: IP66
In the box
- 1 × XeRun AXE 5IVE R3 ESC
- 1 × XeRun AXE 4987 R3S motor
