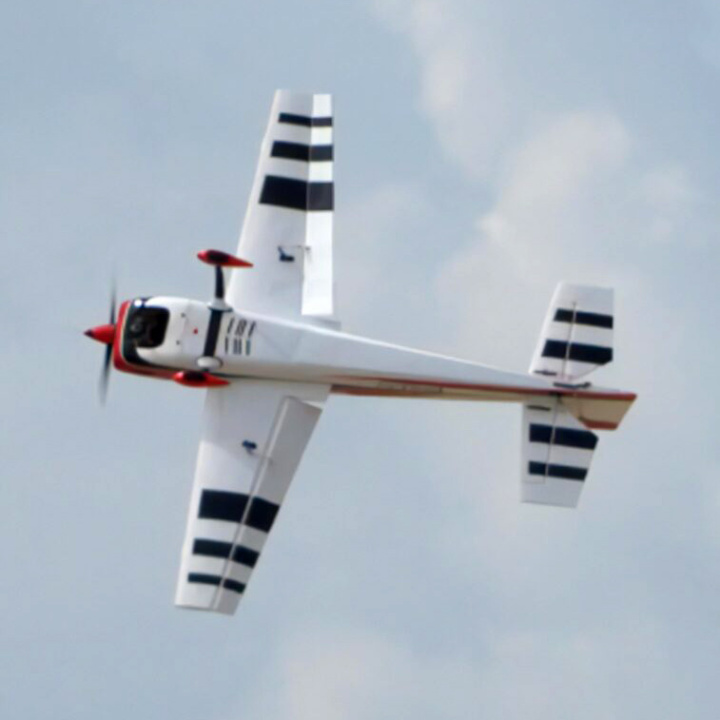

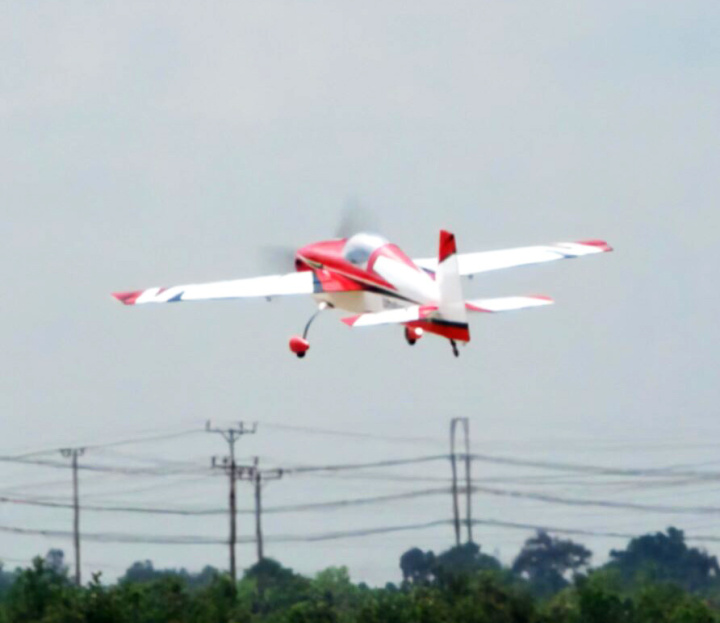

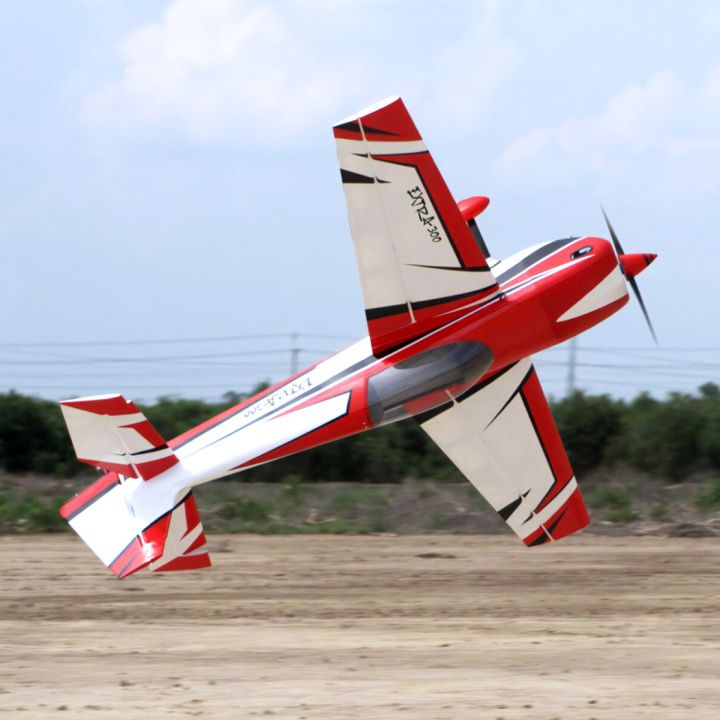

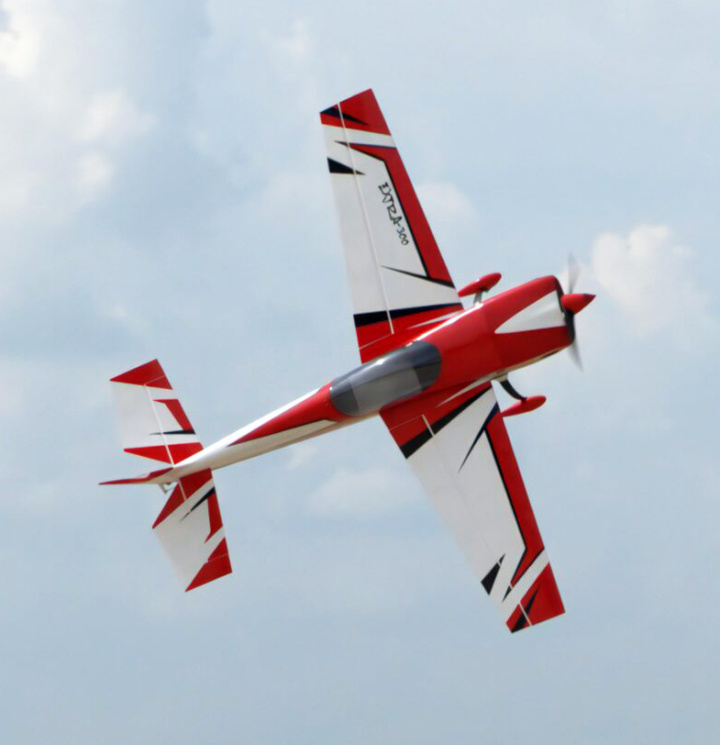

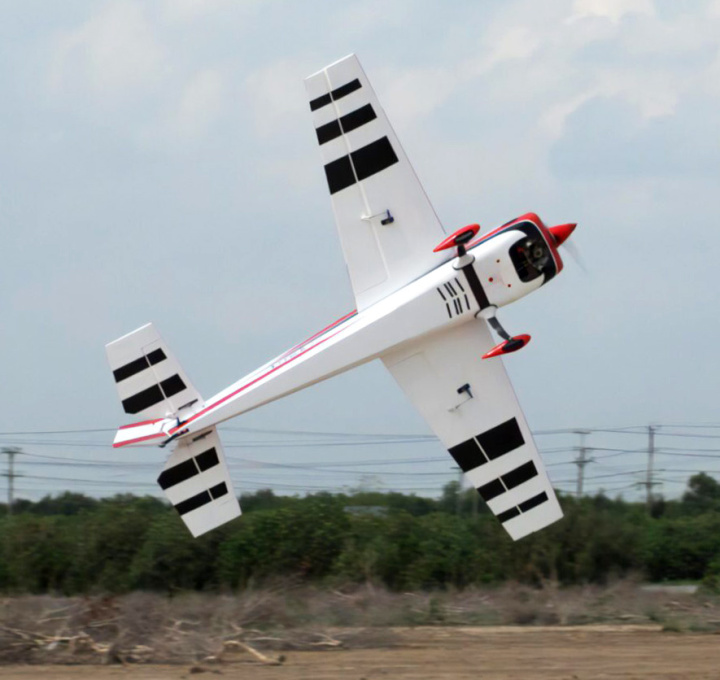

Black Horse BH194 - EXTRA 300 76cc Gas 226cm ARF
- ALL BALSA AND PLYWOOD CONSTRUCTION
- COVERED WITH ORACOVER
SPECIFICATION:
- Wingspan: 2260 mm
- Length: 2250 mm
- Weight: 8.5 kg
- Wing area: 87.9 dm2
- Wing loading: 96.7 g/dm2
- Servo mount: 42 x 21mm
- Wing type: Naca Airfoil
- Spinner: 95 mm (included)
- Gear type: Carbon fiber for main gear (included) and Carbon fiber tail gear (included)
- Covering type: Genuine Oracover
Parts listing required (not included):
- Radio: 6 channels minimum
- Servos: 6 pcs (HV High torque steel gear servos 30-40kg/cm)
- Engine: 76cc Gas
- Motor: Brushless outrunner: 5000–6500W, 230KV
- Propeller: Suit with your engine
Recommended Motor and Battery set up (not included):
- Motor: 60cc sized
- LiPo Battery: 12 cells 5000-7000mAh
- Receiver battery: 6-7.4V/ 2200-3200mAh LiPo
- ESC: 120A
