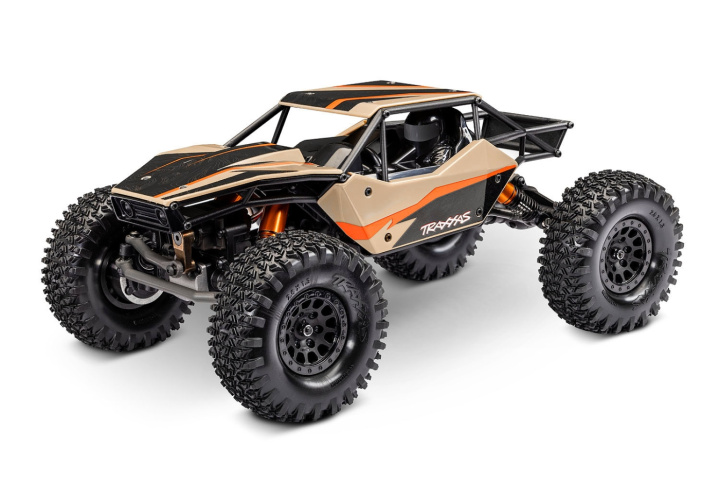

Traxxas 120074-1-TAN – TXC-4M 1/18 Extreme Crawler RTR – Tan
1/18 scale 4WD rock crawler with 3S brushless power, portal axles, oil-filled GTM Pro shocks and TQ™ 2.4 GHz radio. Ready-To-Drive® with 11.1 V 250 mAh 3S LiPo battery and USB charger with iD®.

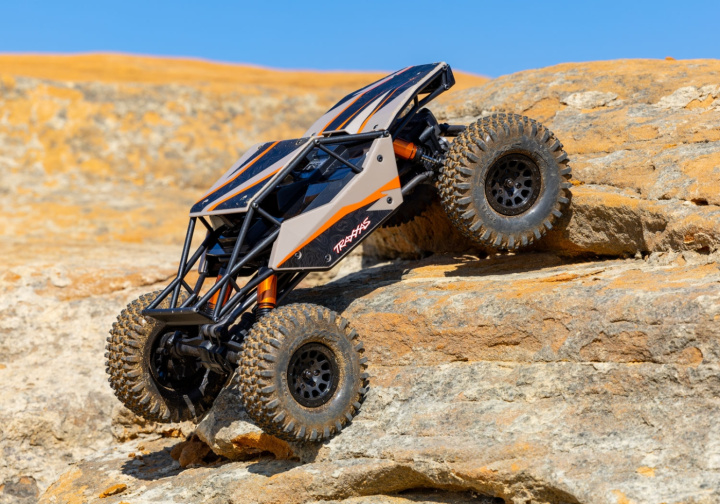

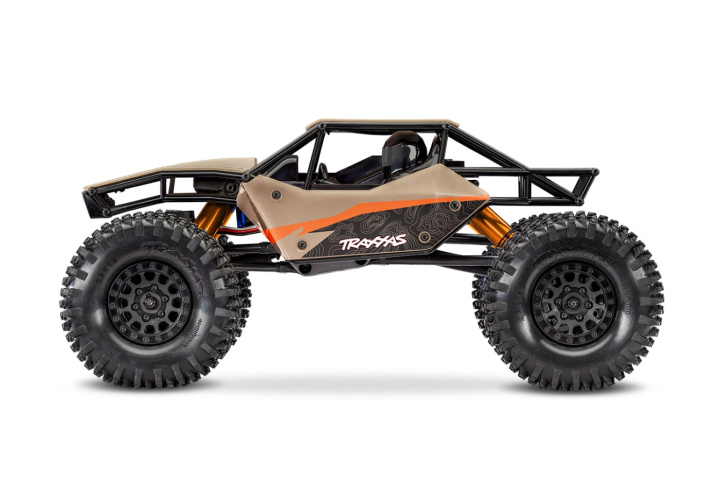

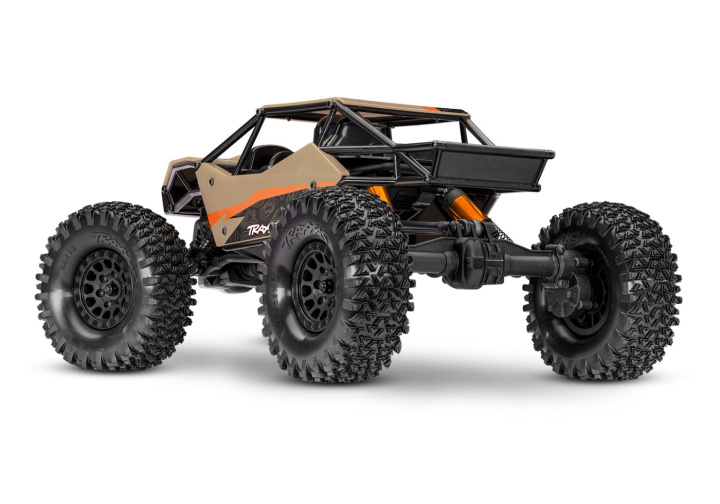

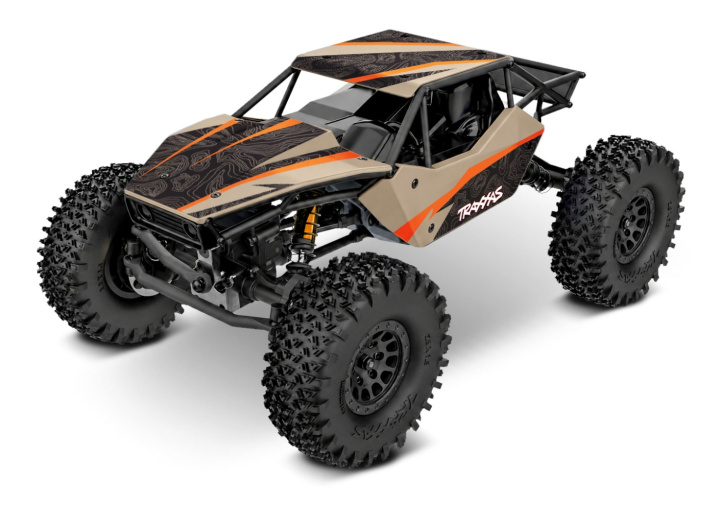

TXC-4M™ Extreme Crawler is a compact rock crawler built around a lightweight tube-frame body and a one-piece molded monocoque chassis. Portal axles, triangulated 4-link suspension and a 60° steering angle give it the clearance and agility for technical climbing lines, while the 3S brushless outrunner system combines precise low-speed control on the rocks with real trail speed between obstacles. This version comes with tan body panels and decals.
TXC-4M is rated skill level 1 and is delivered fully assembled with battery and charger. Only four AA batteries for the transmitter and a USB-A power source are needed to get started.
Features

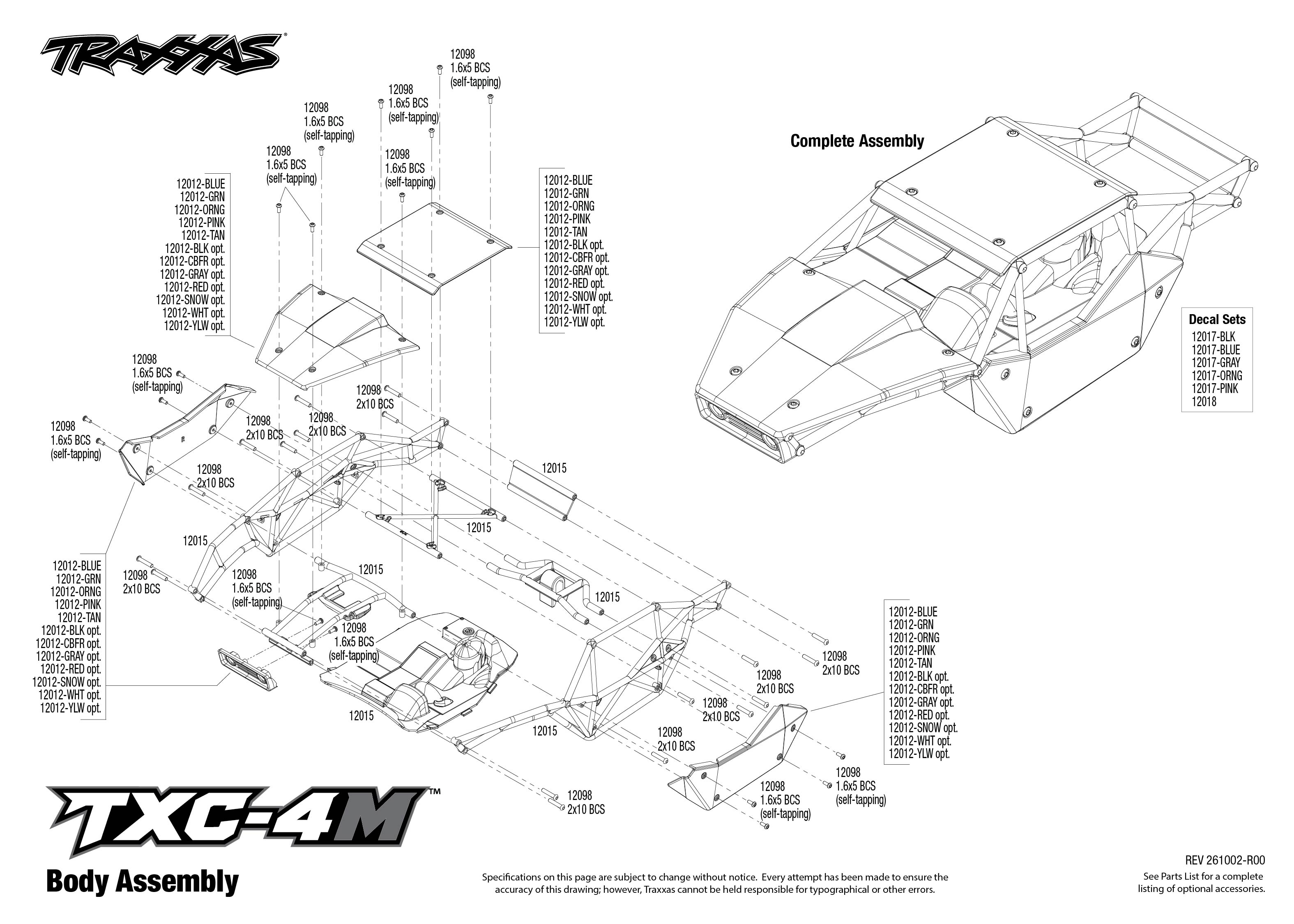

- Clipless tube-frame body with replaceable body panels, interior with driver figure and mounting points for accessory LED light kits
- One-piece molded composite monocoque chassis – battery and ESC sit low on opposite sides for balanced weight distribution

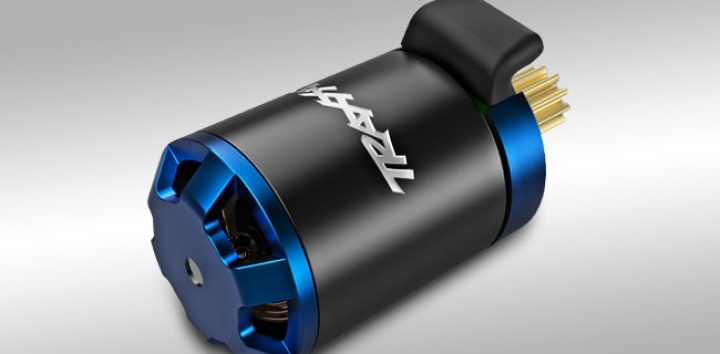

- 3S brushless outrunner motor, 3350 Kv, with laser-etched can and pre-installed pinion gear

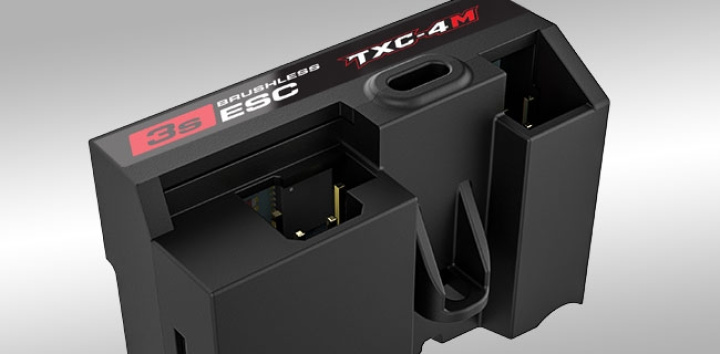

- Waterproof 3S brushless ESC with Field Oriented Control (FOC), 6 V BEC, LiPo overvoltage protection and two-stage low-voltage detection
- Three drive profiles: Sport, Trail with trail-tuned drag brake, and Crawl with instant reverse and 100 % hill-holding brake
- Full-time shaft-driven 4WD with locked steel spool axles and 25 % overdrive on the front axle

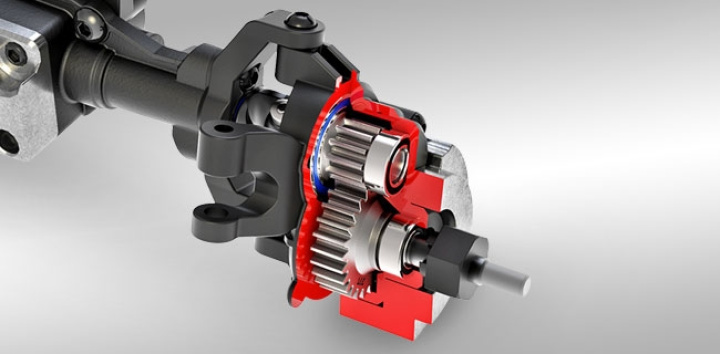

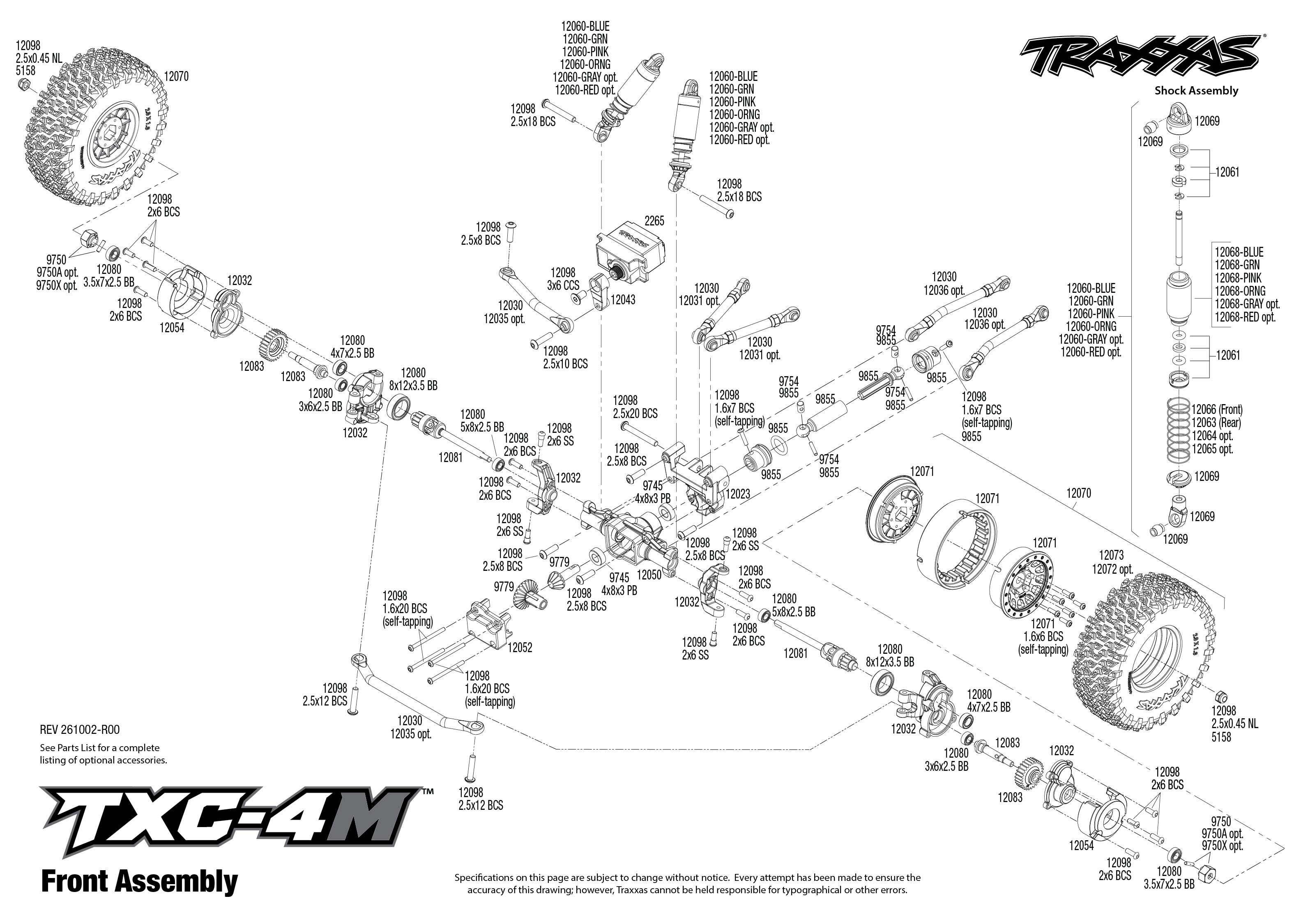

- Portal axles with 2-gear portals, all-metal gears and sealed ball bearings for more ground clearance and less torque twist
- Single-speed transmission with all-metal gears and ball bearings
- Heavy-duty CV center driveshafts, plus steel driveshafts and U-joints out to the wheels
- Triangulated 4-link suspension front and rear with high-clearance lower links and lay-down shocks

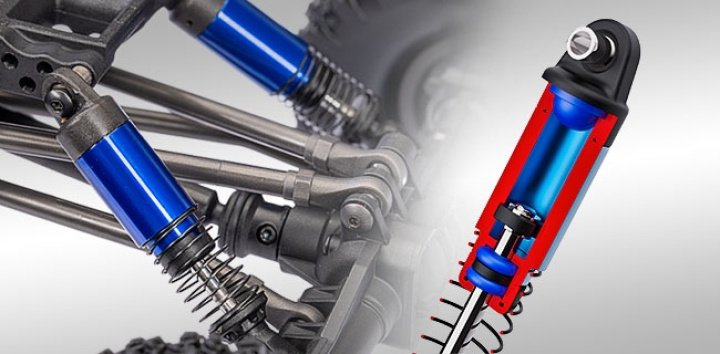

- Oil-filled GTM Pro shocks with anodized aluminum bodies and springs mounted under the shock body for a realistic look

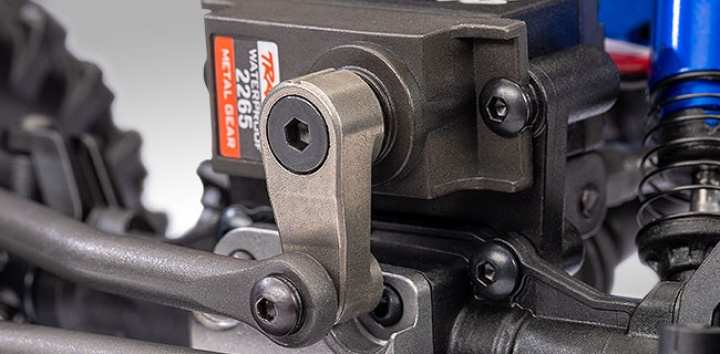

- 60° steering angle with waterproof high-torque 2265 metal-gear servo, high-throw metal servo horn and direct steering (no servo saver)
- Steel front portal weights and steel front axle cover for a low center of gravity and better resistance to rollovers
- 1.3-inch Method Race Wheels® 105 Beadlock replica wheels (3-piece, 7 mm hex) with 1.3 x 2.8-inch Stone Claw™ tires and foam inserts
- TQ™ Compact 2.4 GHz 2-channel transmitter with removable color-matched grip adapter. The receiver also works with TQi transmitters and has dual servo and LED channels
- Rust-resistant coated hex hardware and sealed ball bearings
Included
- TXC-4M Extreme Crawler, fully assembled and Ready-To-Drive®, with clipless tube-frame body
- 3S brushless power system (3350 Kv motor and waterproof ESC)
- TQ™ Compact 2.4 GHz 2-channel transmitter

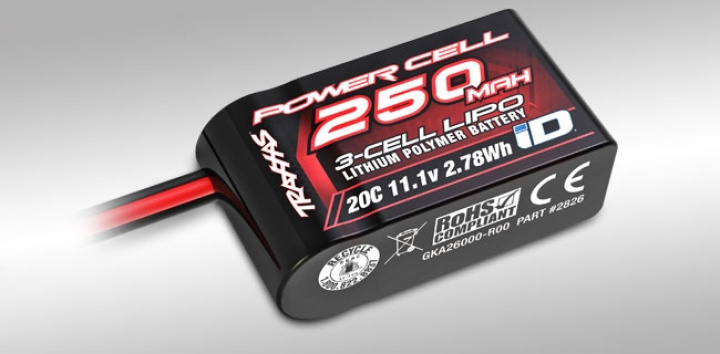

- 11.1 V 250 mAh 3S LiPo battery with iD®

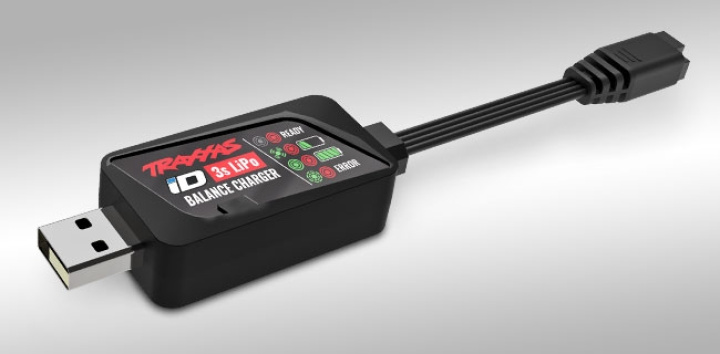

- USB quick charger with iD®
- Maintenance tools
Required (not included)
- 4 x AA alkaline batteries for the transmitter
- USB-A power source, 2 A and 5 V recommended as a minimum
Specifications
- Scale: 1/18
- Type: Trail / rock crawler, 4WD
- Skill level: 1
- Length: 234 mm
- Width / track: 149 mm
- Height: 107 mm
- Wheelbase: 168 mm
- Ground clearance (center): 43 mm
- Weight: 467 g
- Driveline: Shaft-driven 4WD, locked spools front and rear
- Transmission: Single speed, internal gear ratio 74.1:1
- Steering servo: 2265, waterproof, metal gear, 75 oz-in (approx. 5.4 kg-cm)
- Motor: 3S sensorless brushless outrunner, 3350 Kv, 24 x 16 mm, 18 g
- ESC: 3S brushless, waterproof, 6 V BEC, 34 x 25 x 14 mm, 26 g
- Battery: 3S LiPo 11.1 V 250 mAh with iD®
- Battery compartment: 41 x 22 x 14 mm
- Radio system: TQ™ Compact 2.4 GHz, 2 channels
