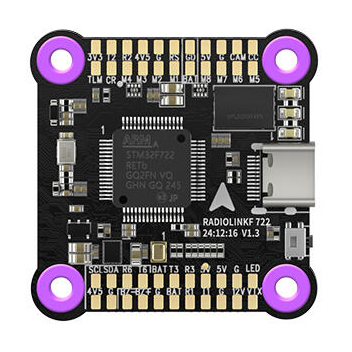

RadioLink F722 - The Racing Master Flight Controller
RadioLink F722 - The Racing Master Flight Controller
- Supports Betaflight and INAV Firmware
- High Configuration
- Optimal PCB Layout and Routing
- Unique Automation Software Testing System
- Multiple Image Transmission Support
- Combine Soldering Plate and Socket

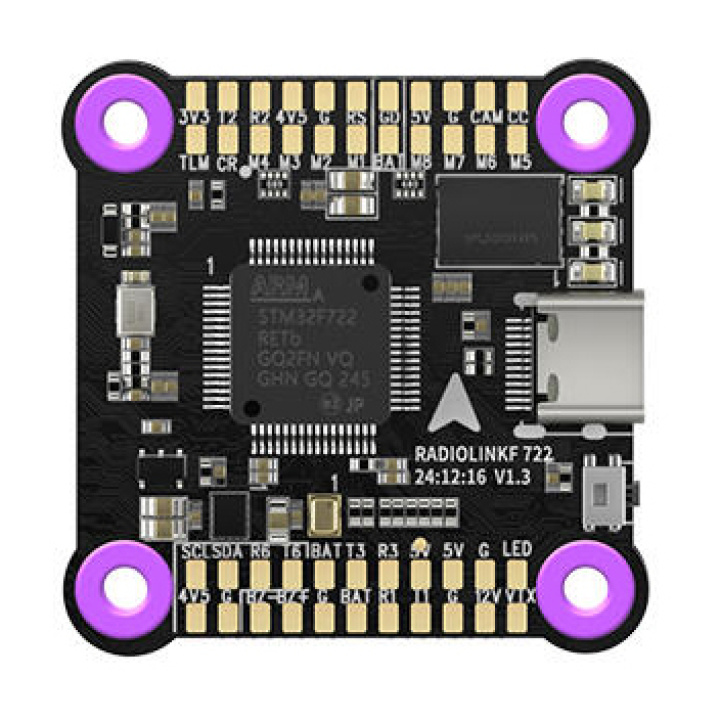

High Configuration

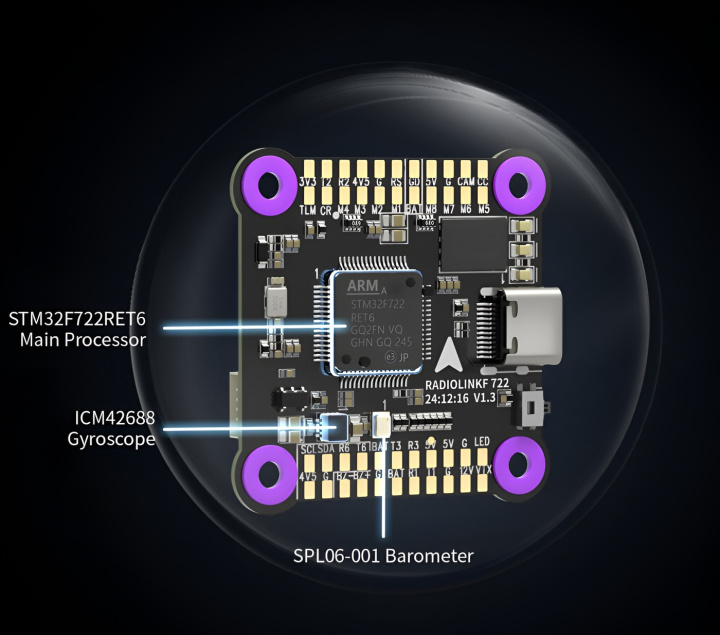

The F722, equipped with a STM32F722RET6 main processor, ICM42688 gyroscope, BMP280 Barometer, 128MB capacity of Black Box, and MP2491C switching power supply chip from MPS.
Get Source Code from GitHub for Redevelopment:
Optimal PCB Layout and Routing
With more than 10 years of experience in independent flight control design, repeated optimization of PCB layout and routing, achieving a perfect combination of high current and low noise, ensuring sensor accuracy.
Unique Automation Software Testing System
Through independent research and development of multiple unique flight control systems, we have designed a comprehensive automation software testing system, encompassing sensors, connection ports, and interfaces. The test efficiency and quality assurance are far superior to traditional manual tests, ensuring the quality of every function of every F722.
Multiple Image Transmission Support

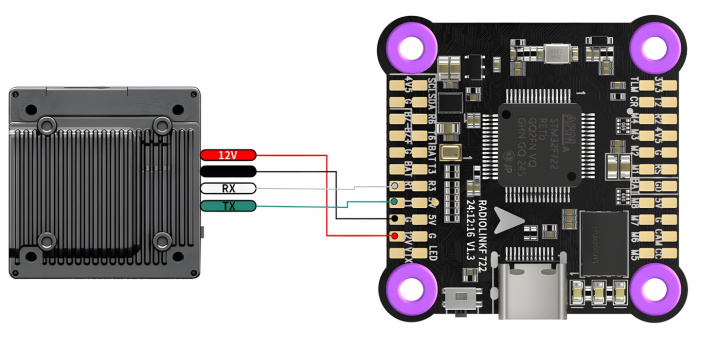

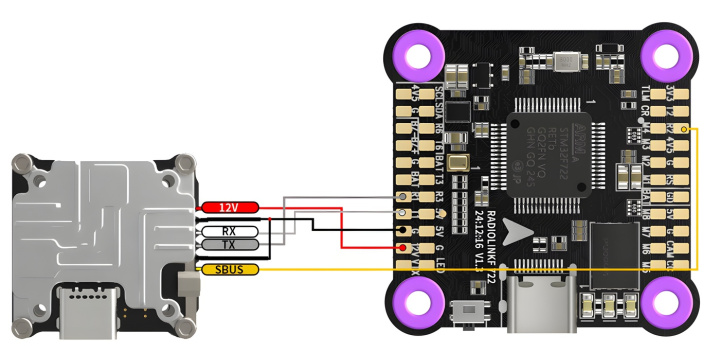

The F722 supports the DJI and CADDX high-definition digital image transmission plug-and-play. Built-in 3.3V/4.5V/5V/12V multiple BEC.
A switch can be set as the 12V BEC switch, which is used to turn on or off the image transmission power supply, allowing the transmitter to directly set the parameters of the flight controller, such as power and image transmission frequency.

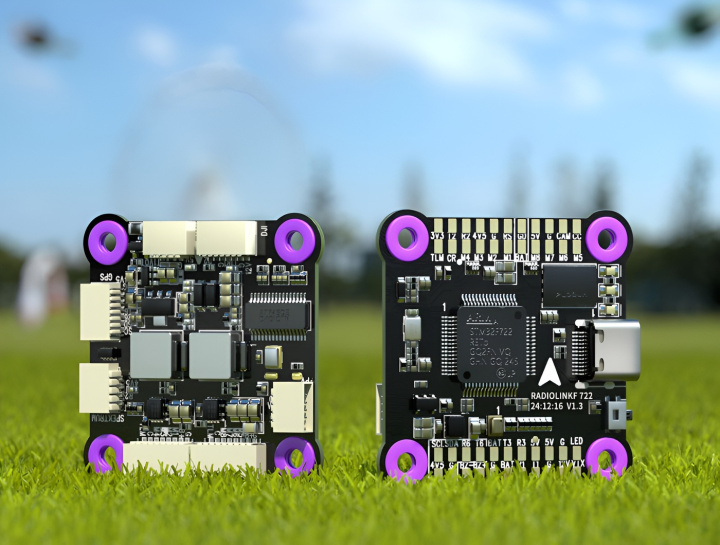

Multiple Interfaces
Supports up to 8 channels of output and is adaptable to a 2-8 axis multi-rotor, including X8 models. A combination of socket interface and solder pad makes it more convenient to connect external devices.

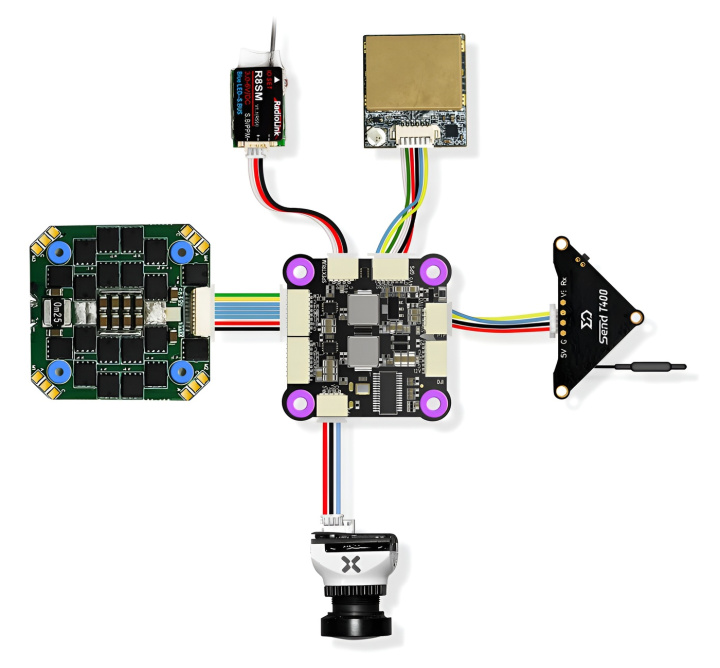

Socket Interface, HD Digital and Analog Video Transmission Plug-and-play
A 6-pin socket interface designed for DJI high-definition digital image transmission plug-and-play. A 4-pin VOUT socket interface is designed for analog image transmission connections.

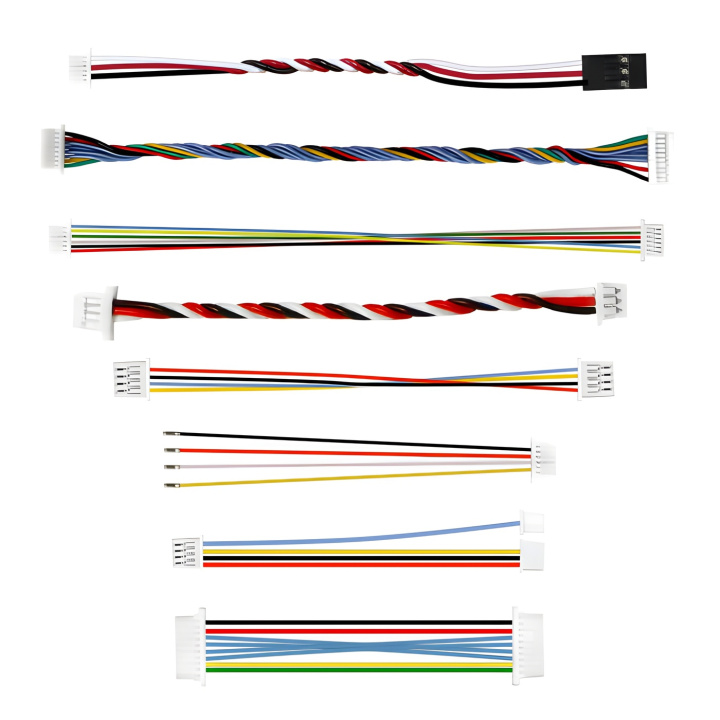

More Interfaces can be Expanded as You Need
By combining socket interfaces and soldering pads, more interfaces can be expanded without changing the size of the flight controller to meet the needs of more DIY functions.
- Support Current Various Mainstream Throttle Signals - ESC Information Telemetry Supported
- Support two-way DShot, OneShot, and PWM signals.
OSD Module Integrated - Real-time Gesture Visualization Display
F722 can graphically display OSD information such as the flight direction and position of the aircraft in real-time without the need for an external OSD module. The pilot can intuitively grasp the status and coordinates* of the aircraft at any time during the first-view (FPV) flight. Achieve a more comfortable flying experience.
* Real-time display of flight information such as flight mode, distance, GPS sats, longitude and latitude, battery voltage, current, GPS speed, home direction, Blackbox log status, stick overlay left, throttle position, etc. Rich parameters display and thoughtful setup make the safer flight.
Cost-effective Solution

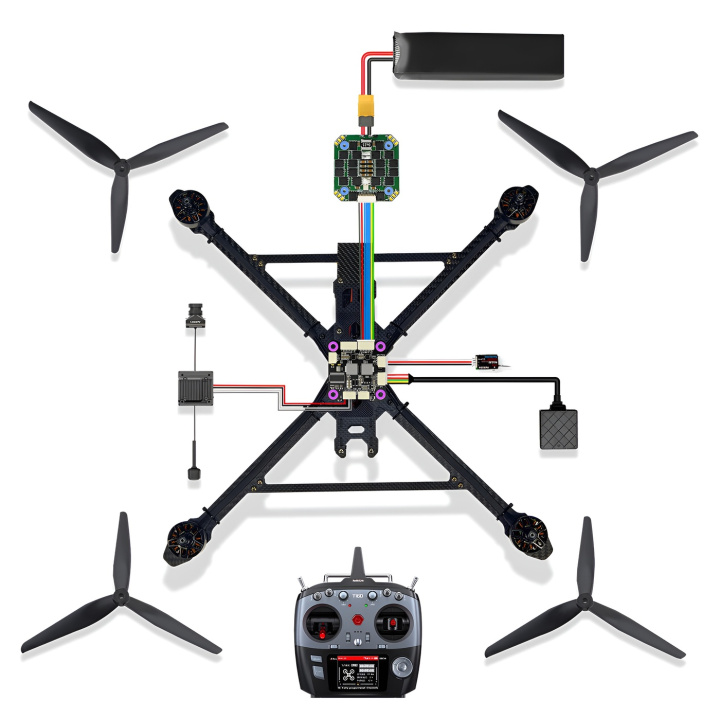

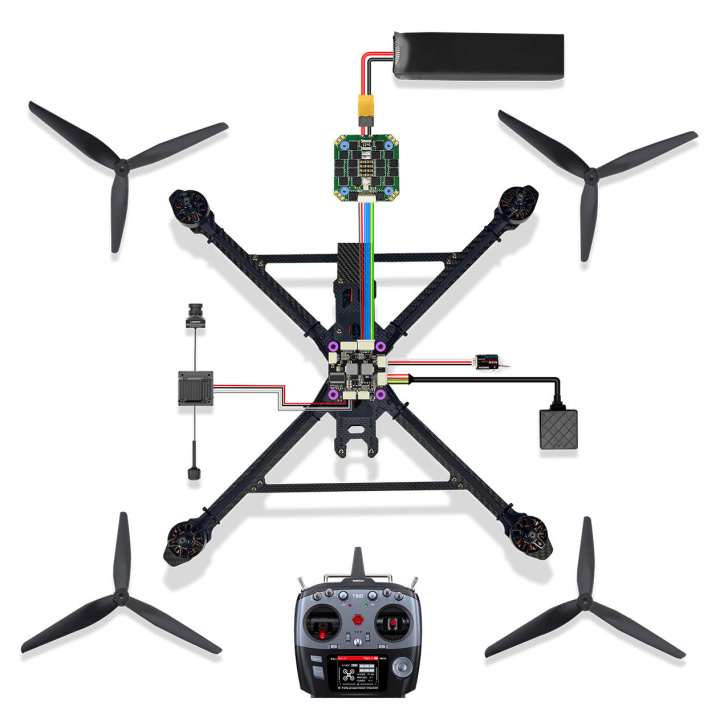

The Flight controller F722 works with the 16 channels remote control system T16D, the 16 channels receiver R16F, the 50 Centimeters Positioning Accuracy GPS TS100, the DJI/CADDX high-definition digital image transmission, and HD Goggles, and the ELRS long-range module, almost all the parts of the RC drone you need we can offer, realizing the super adaptability of various cost-effective solutions such as high-speed aerial photography and cinematography solutions.

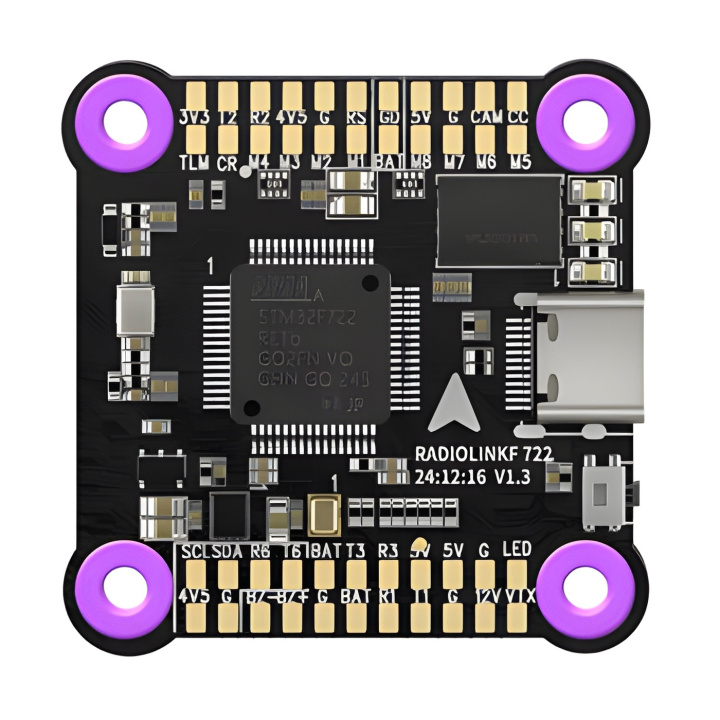

F722 Flight Controller Specs:
- Size: 30.5x30.5mm
- Weight: 9.5g
- Processor: STM32F722RET6
- Gyro: ICM42688
- Barometer: SPL06
- Blackbox: 128MB, record and store flight logs
- OSD Module: AT7456E
- Channel Output: M1 - M8
- HD Digital Video Transmission: Support HD digital video transmission plug-and-play
- Analog Video Transmission: Support analog video transmission plug-and-play
- Betaflight Camera Parameter Setup Soldering Pads: Supported
- Battery Scale: 110
- UART Port: 5
- ESC Features: Supported
- I2C: Supported (SCL, SDA)
- LED Strip: Supported, have LED strip soldering pads
- Buzzer: Supported, have a buzzer soldering pads
- RSSI Output: Supported, have RSSI soldering pads
- USB Port: 1 (Type-C)
- Signal Input: SBUS/CRSF
- OSD Telemetry: Supported, OSD Module Integrated
- ESC Protocol: PWM, two-way DShot, and OneShot Protocol
- Firmware Type: Betaflight, INAV
- Firmware Name: RADIOLINKF722
- Input Voltage: 3-6S
- BEC: 3.3V/300mA; 4.5V/500mA; 5V/3A; 12V/3A
- 12V BEC Switch: Support (USER1)
- Adaptable Models: 2-8 axis multi-rotors, Airplanes, Helicopters, flying wings, Cars, Boats, Robots, bait boats, Lawn
- Operating Temp: -30~85℃
