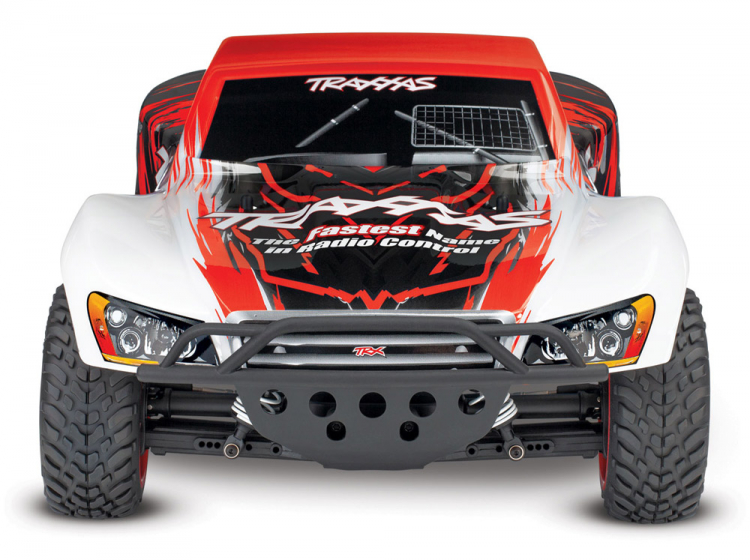

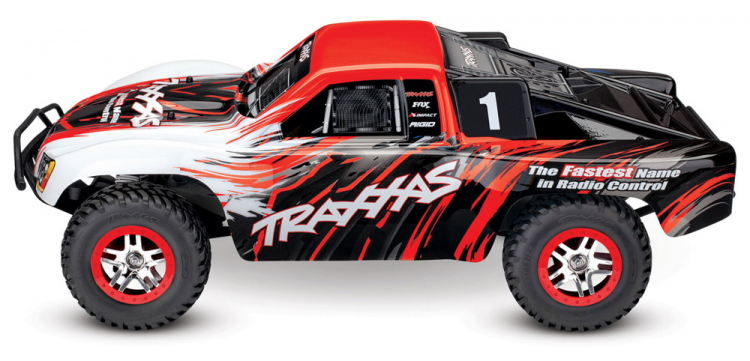

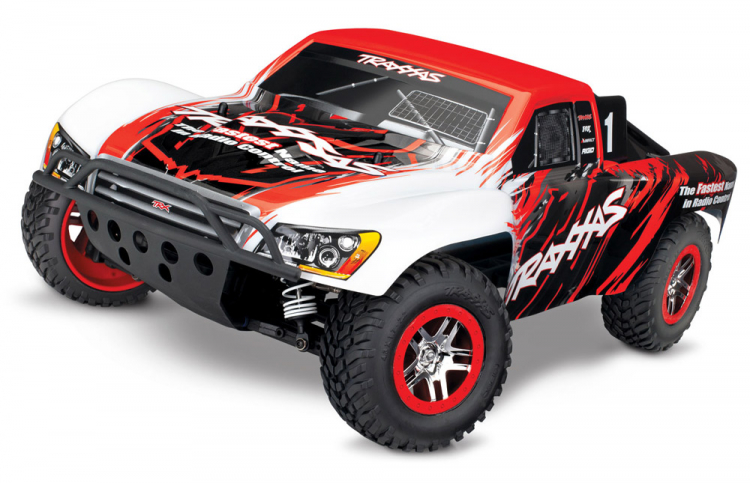

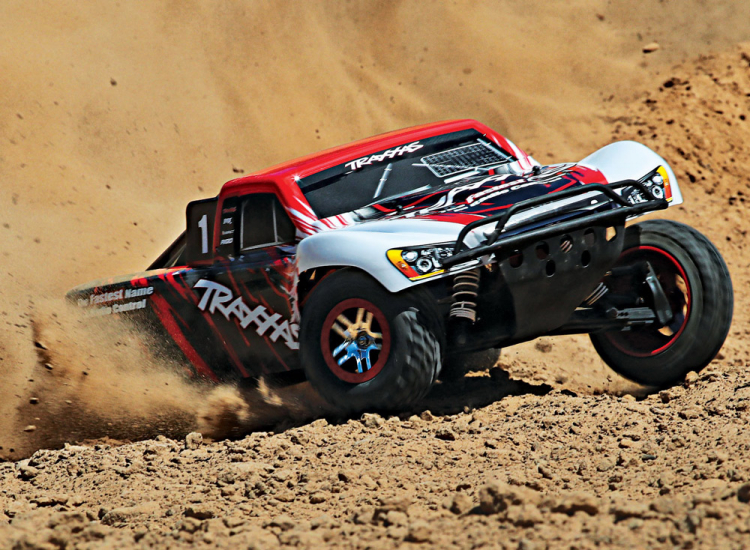

Traxxas 68086-4-RED - Slash 4x4 with Red Graphics
The Traxxas Slash defines the short course truck segment and sets the standard for durability, performance, and technology. Innovative features like Traxxas Stability Management® (TSM), modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision and rock-solid durability. Slash 4X4’s extreme Velineon brushless power provides screaming 96+kph speed posebilities while the TQi radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash 4X4 elevates short course performance to a whole new level.Features:
- Traxxas Stability ManagementTM (TSM)
- Powered by the Velineon® Brushless Power System
- Slash 4X4 reaches speeds in excess of 96+kph!*

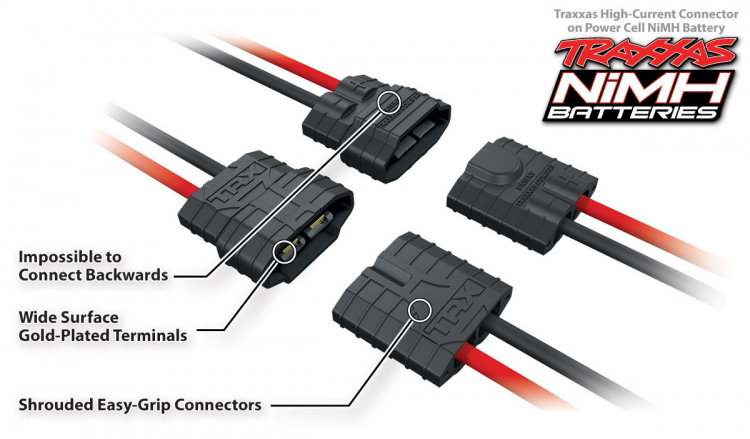

- Traxxas High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
SLASH 4X4 (#68086-4-RED) SPECS
- Length: 568 mm
- Front Track: 296 mm
- Rear Track: 296 mm
- Center Ground Clearance: 72 mm
- Weight: 2.64 kg
- Height (overall): 193 mm
- Wheelbase: 324 mm

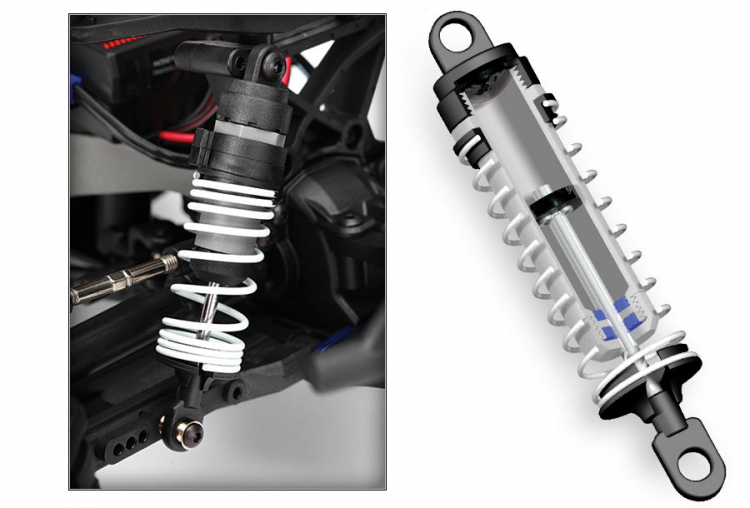

- Shock Length: Long (front), XXLong (rear)

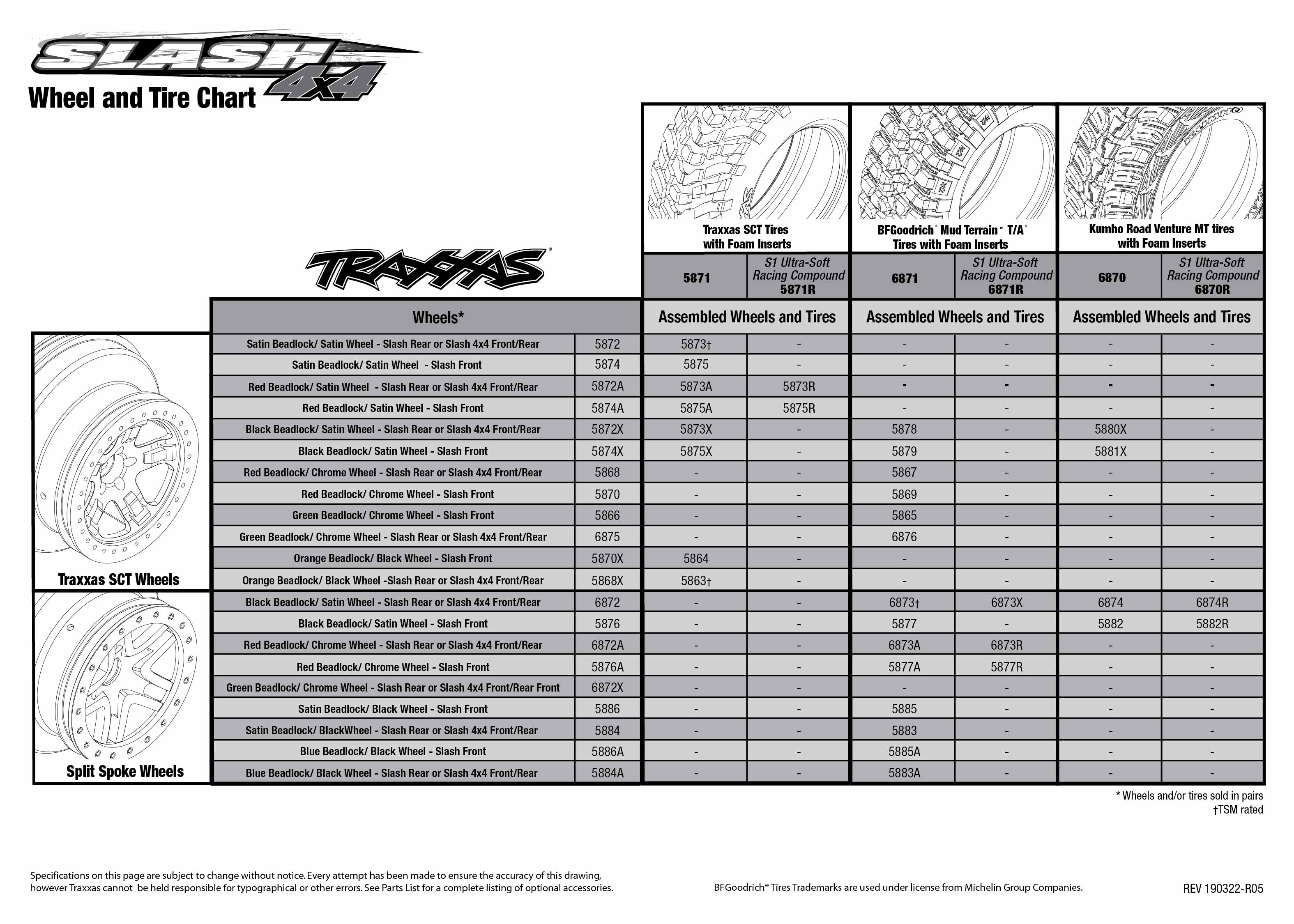

- Tires: Traxxas 2.2 inch pre-glued with foam inserts
- Tire Diameter: 4.31 inches (109.5 mm) (front and rear)
- Wheels (front/rear): 2.2 inch Split-Spoke, black or red beadlock
- Wheel Diameter: 2.2 inches (56 mm) outer / 3.0 inches (76 mm) inner
- Speed Control Type: VXL-3s™ Electronic Speed Control

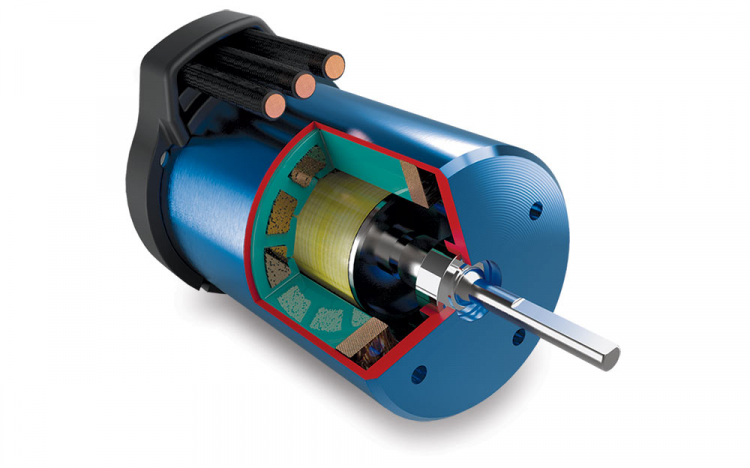

- Motor (electric): Velineon® 3500 brushless
- Overall Drive Ratio: 11.82 (stock, out-of-box)

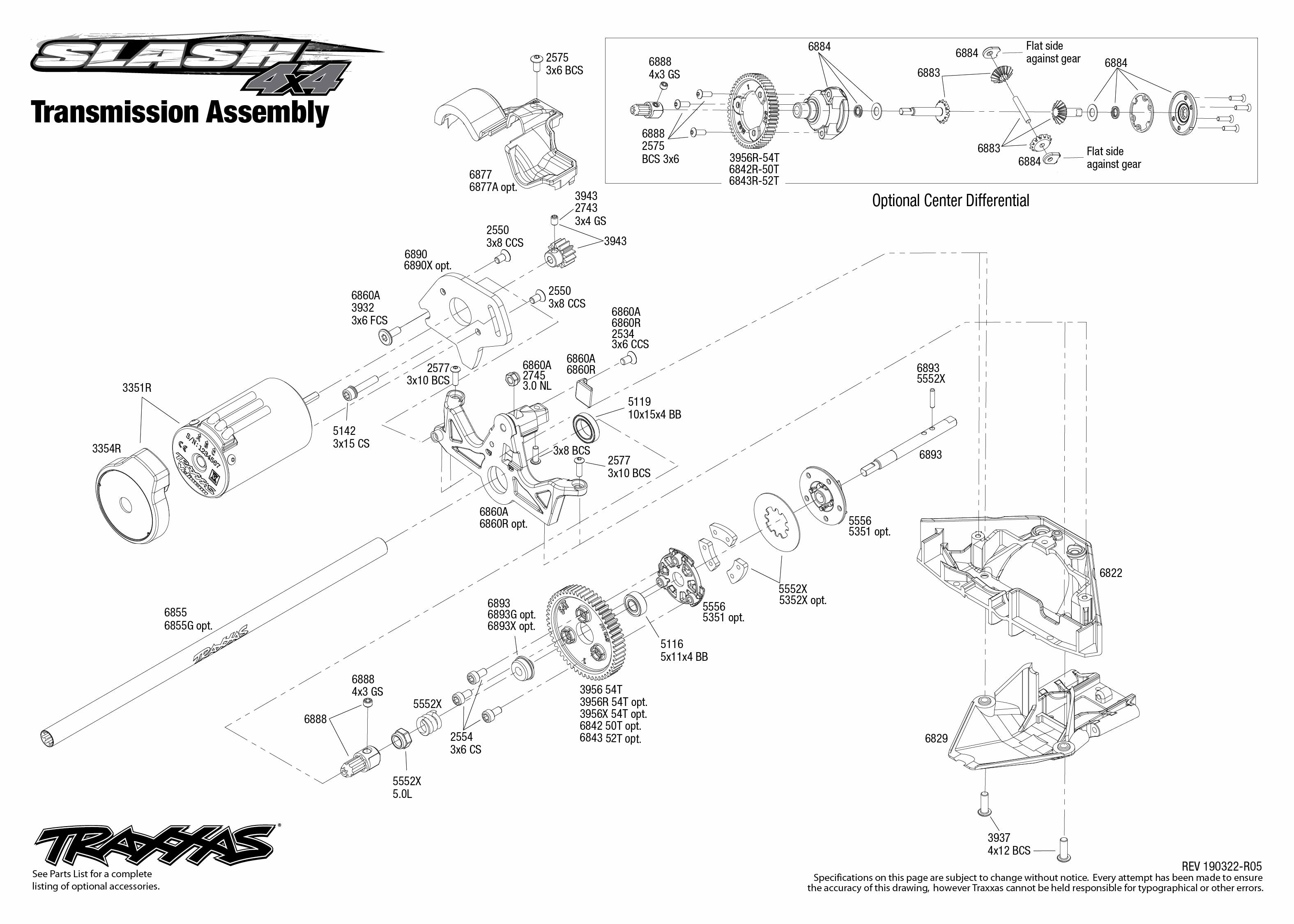

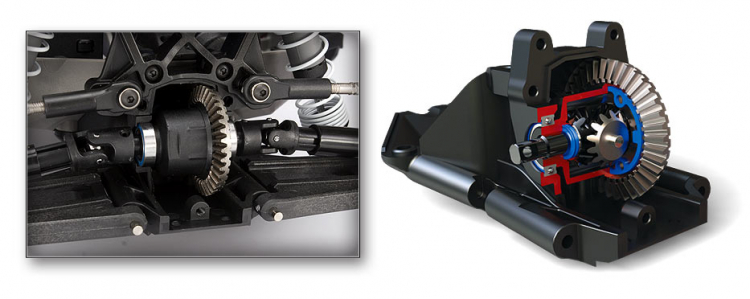

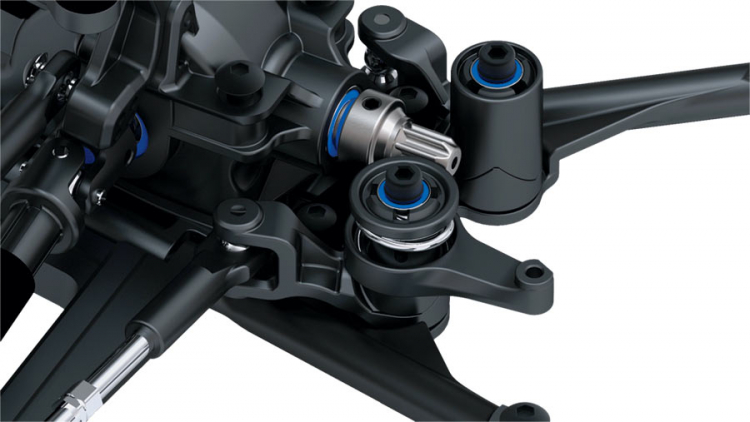

- Differential Type: Hardened steel bevel, sealed, limited slip

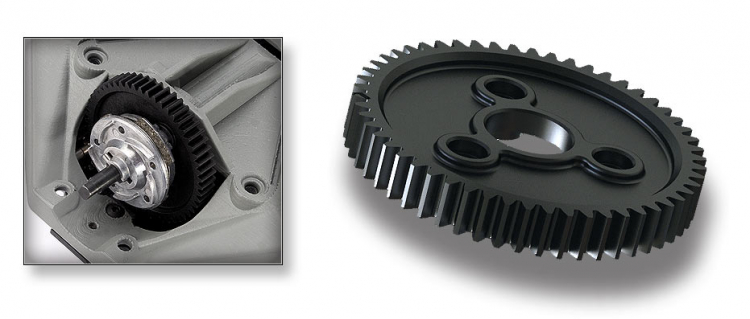

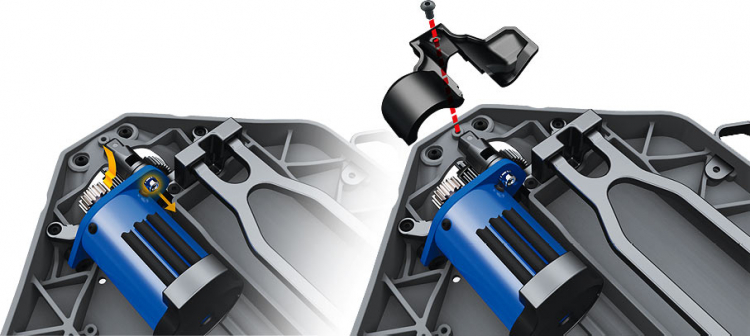

- Gear Pitch: 32

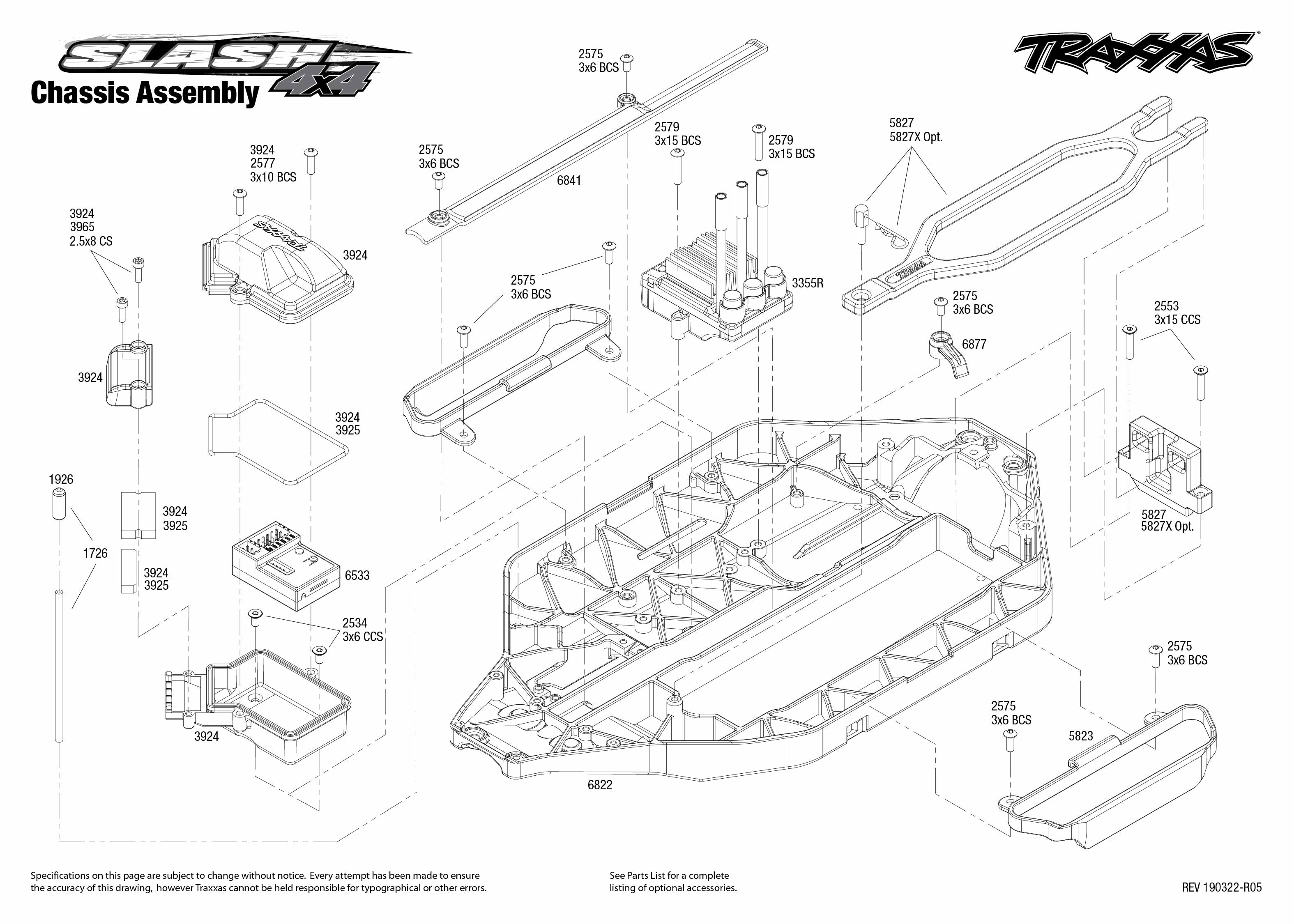

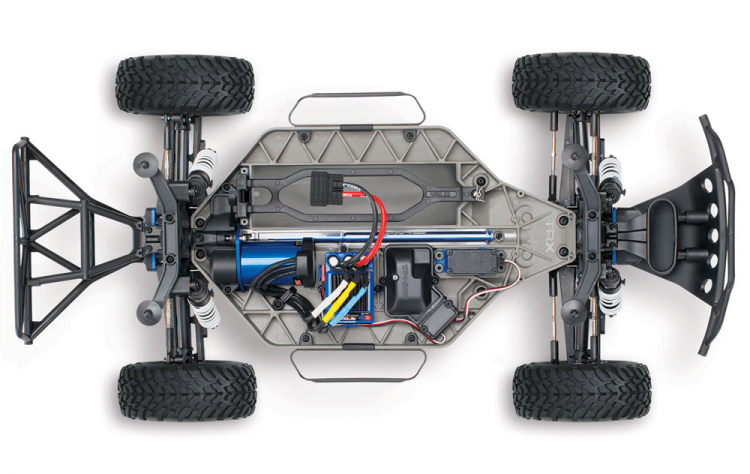

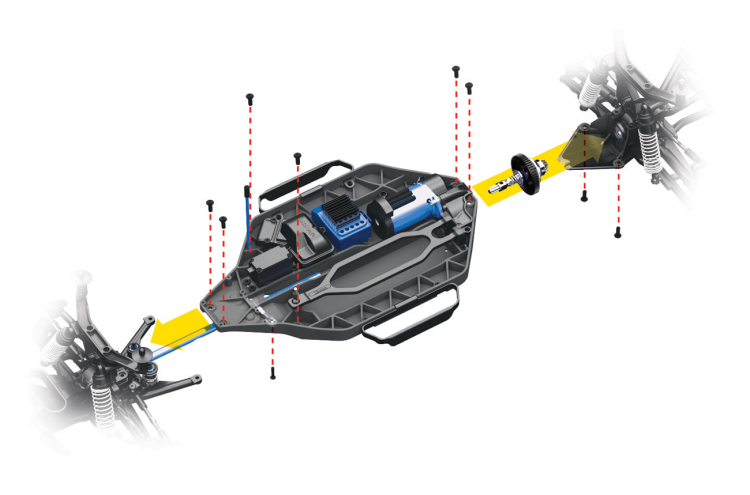

- Chassis Structure/Material: Molded tub / Nylon composite

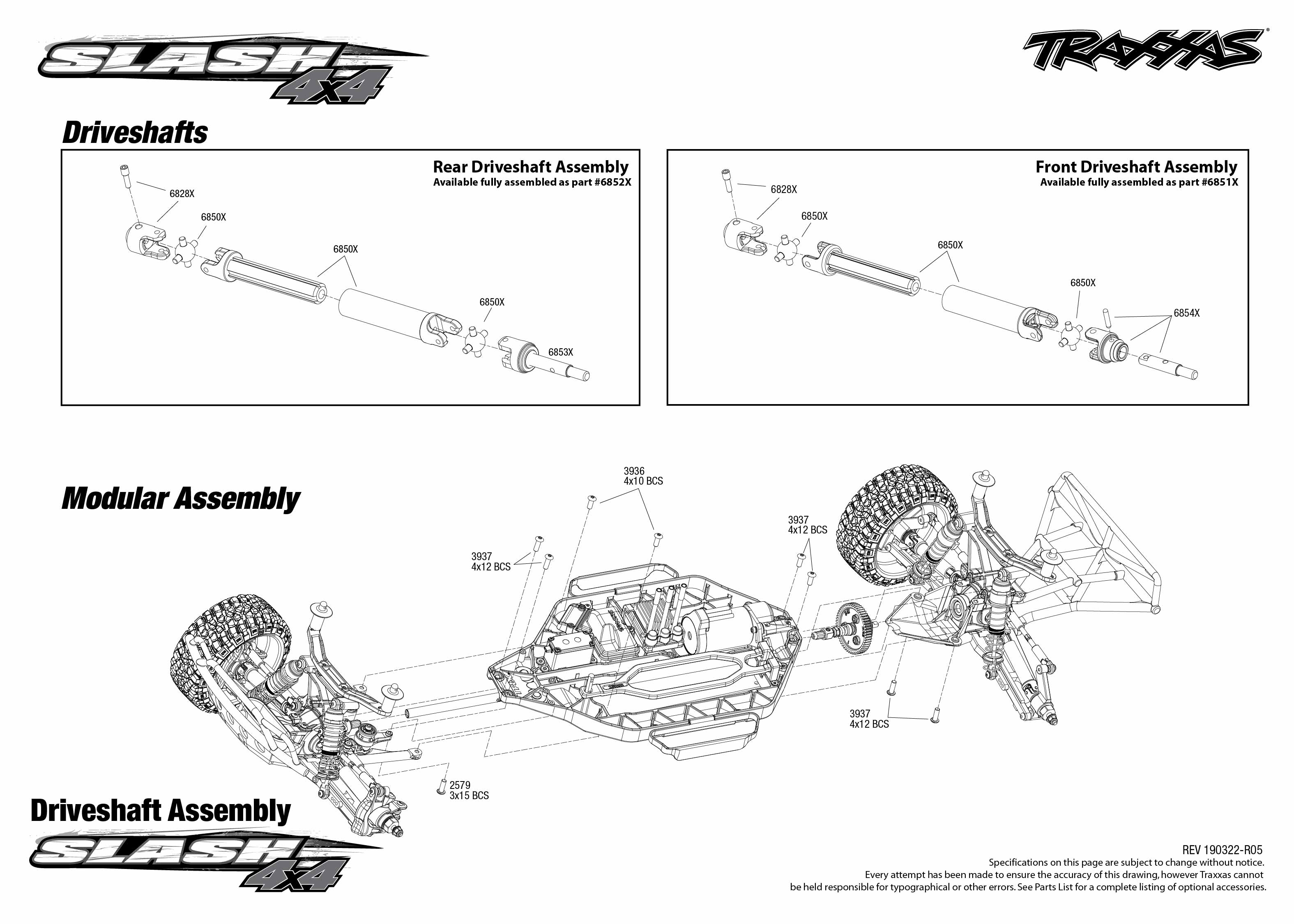

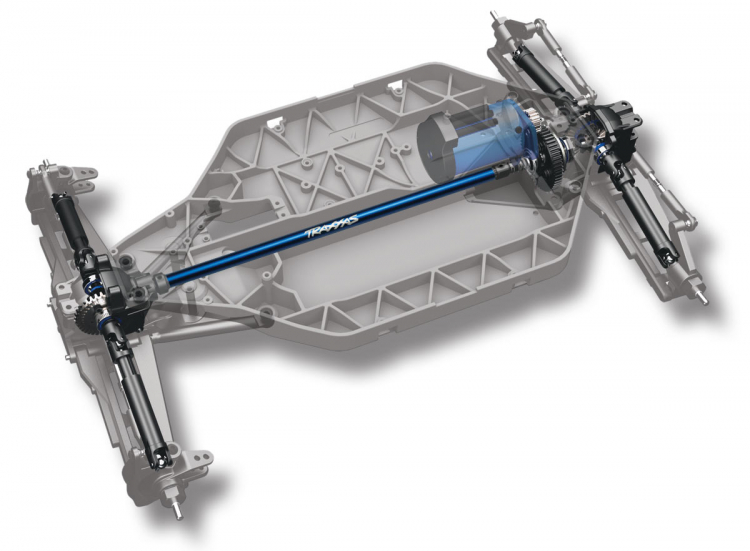

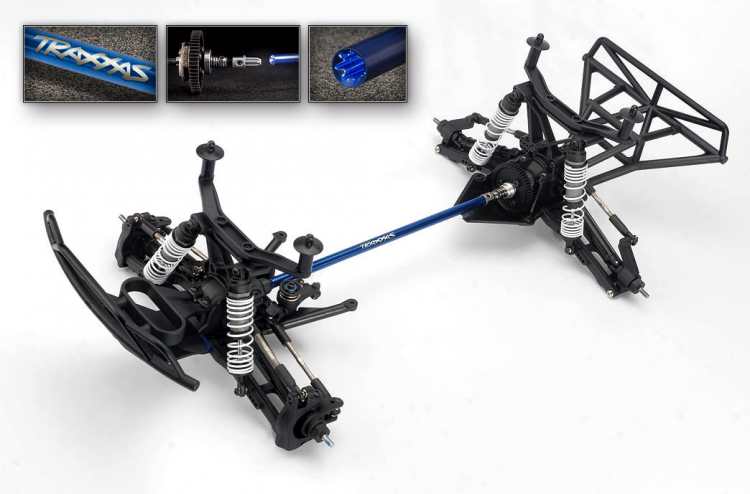

- Drive System: Shaft-driven, direct drive 4WD

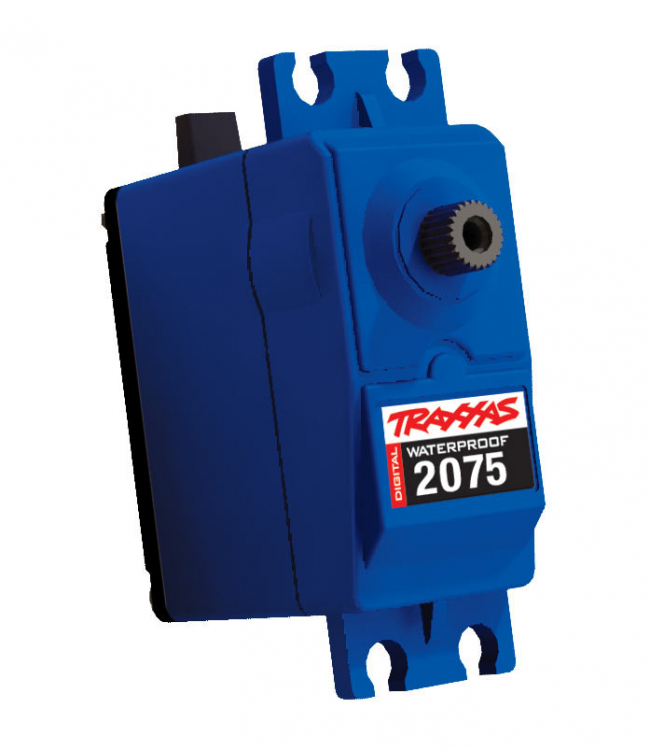

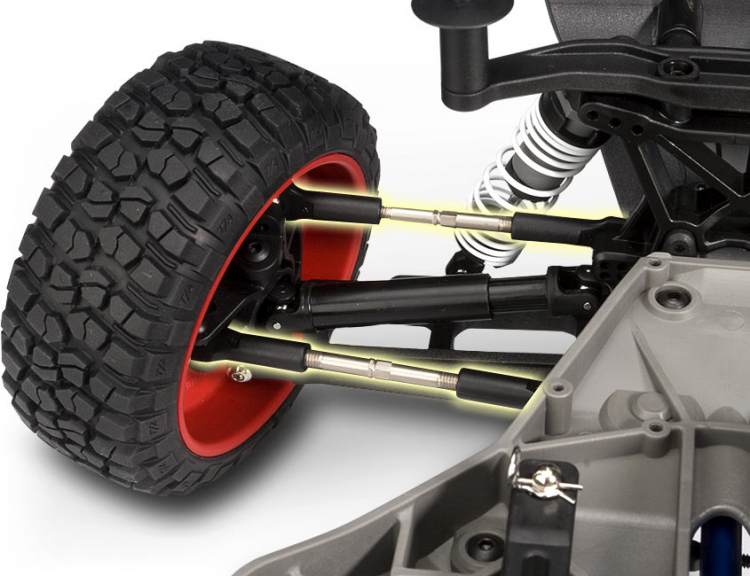

- Steering: Dual-bellcrank with integrated servo saver

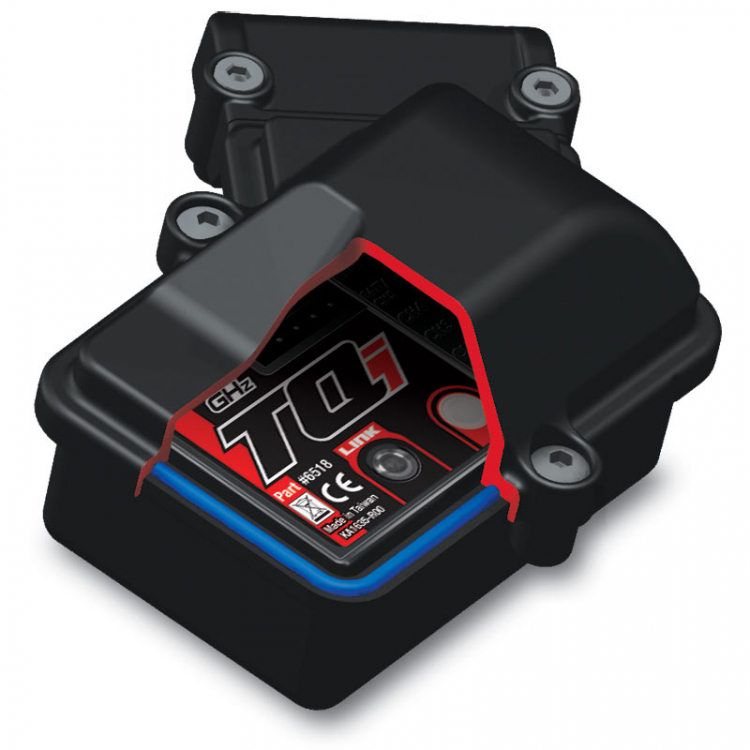

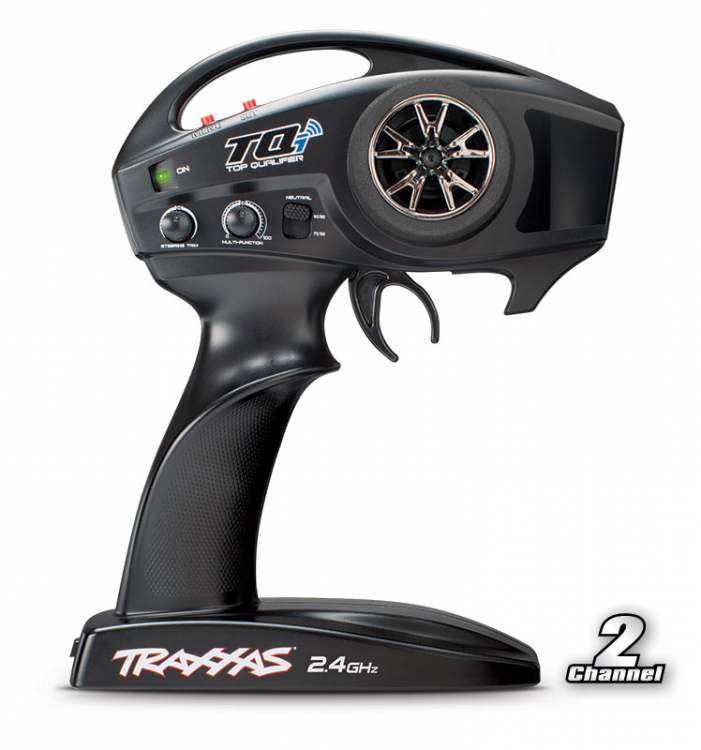

- Radio System (transmitter) TQi™ 2.4GHz (2-channel)
- Radio System (receiver) Traxxas Stability Management™ (#6533)
- Top Speed: 96+kph*
- Skill Level: 1-5 (depending on what battery and gearing you use)
- Battery Tray Dimensions:** 165 x 49.5 x 23/25 mm
- Required Items: NiMH or LiPo battery, charger, 4 "AA" batteries (for transmitter)
**Battery expansion kit available

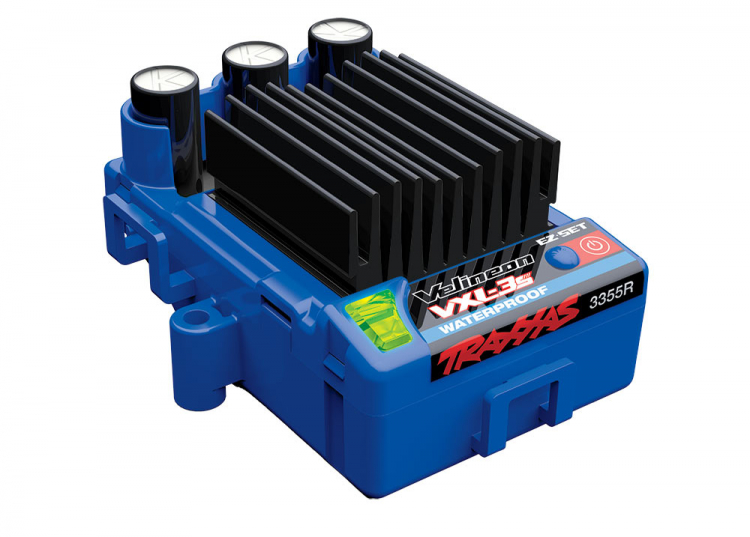

VXL-3s WATERPROOF ESC SPECIFICATIONS
- Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC) / LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
- Case Size: 39 x 55 x 33 mm
- Weight: 90 gr
- Motor Limit (Brushless): No motor limit
- On Resistance Forward: 0.00075 Ohms
- On Resistance Reverse: 0.00075 Ohms
- BEC Voltage: 6.0 V
- BEC Current: 2.5A
- Power Wire: 12-Gauge Maxx® Cable
- Input Harness Wire: 26 Gauge / 100 mm
- Low Voltage Detection: 2-stage indicators, switchable (on or off)
- Thermal Protection: 2-stage thermal shutdown
- Single-Button Setup: Yes, Traxxas EZ-Set®
- Battery Input Connector : Traxxas High-Current Connector
- Motor Types : Brushless
- Ports: RX input, auxiliary fan
Profile selection:
- Sport Mode: 100% FWD, 100% BRAKES, 100% REV
- Race Mode: 100% FWD, 100% BRAKES, NO REV
- Training Mode:* 50% FWD, 100% BRAKES, 50% REV
