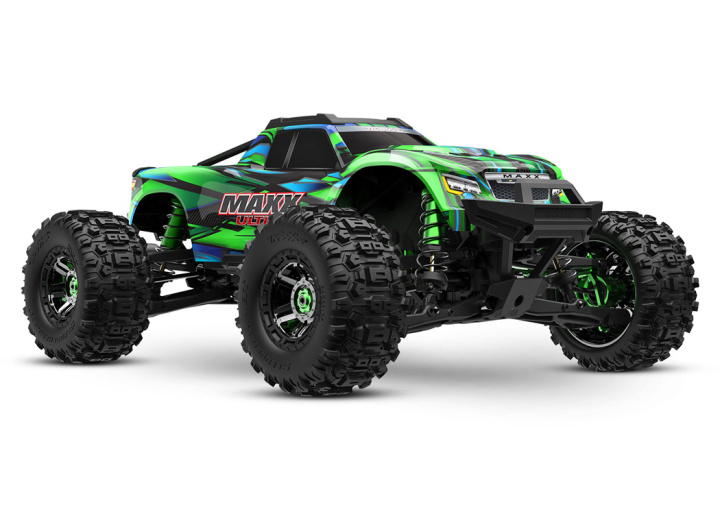

Traxxas 89087-4-GRN - Maxx Ultimate 4x4 4s Brushless - Green
The Ultimate Monster Truck Experience

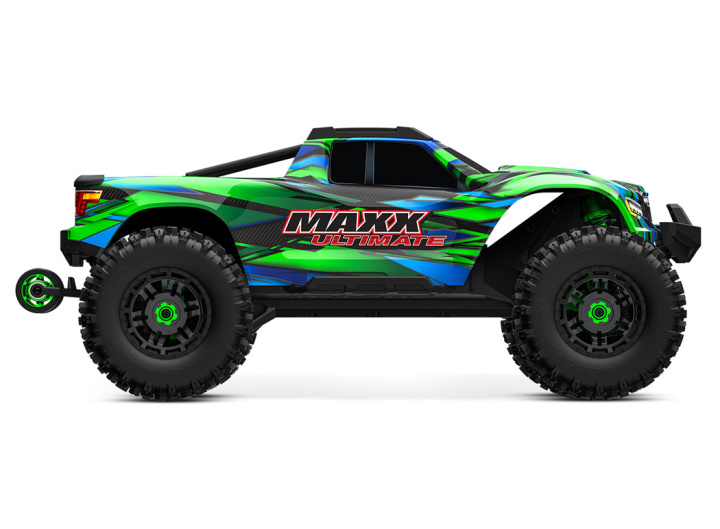

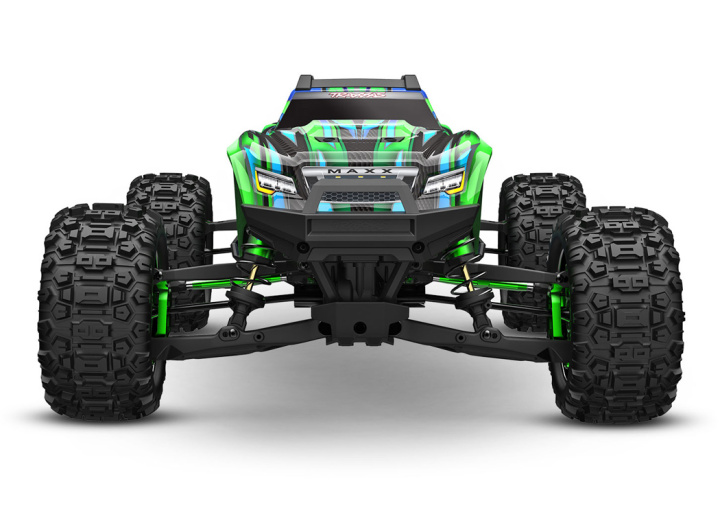

Traxxas Maxx® broke the mold by combining X-Truck® strength and durability into a 1/10 scale chassis. Maxx Ultimate steps up to elite status with unique graphics, a full complement of premium aluminum upgrades, steel CV driveshafts, and Traxxas’ most powerful steering servo. Discover Maxx Ultimate, the most extreme Maxx-scale monster truck ever to wear the Traxxas name.
Ultimate Durability

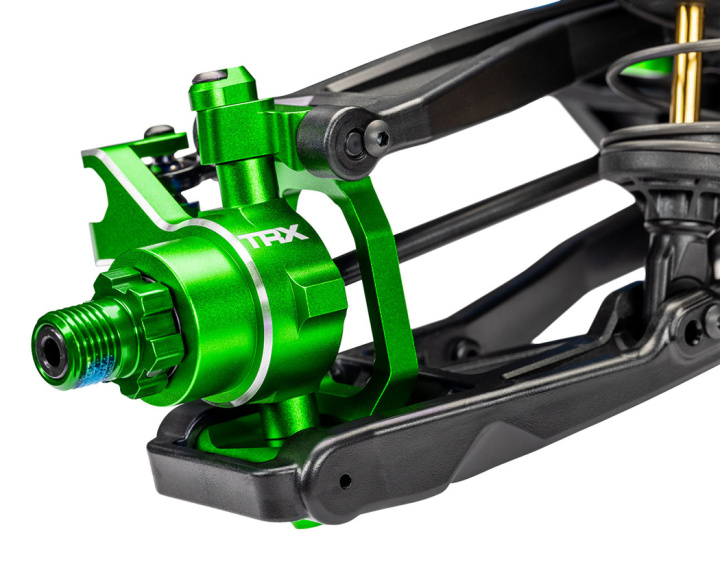

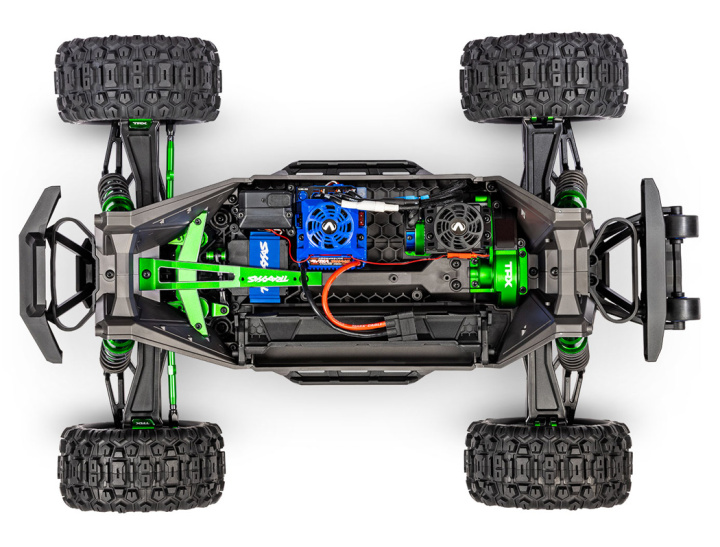

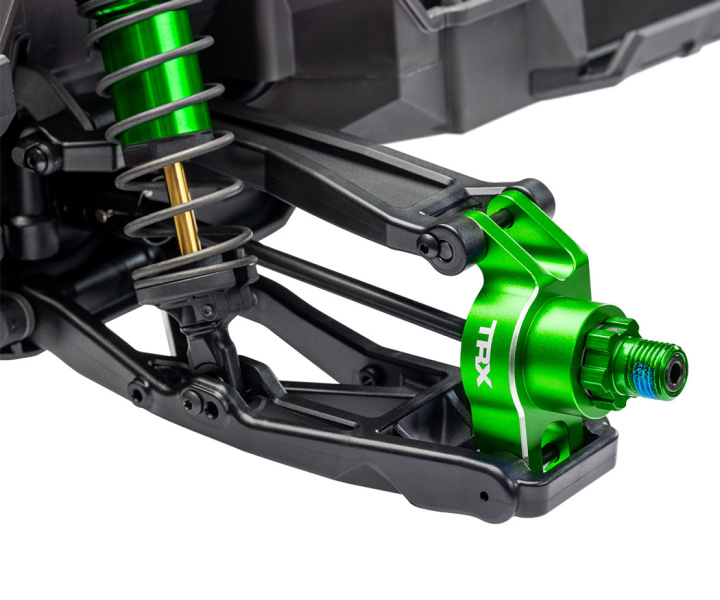

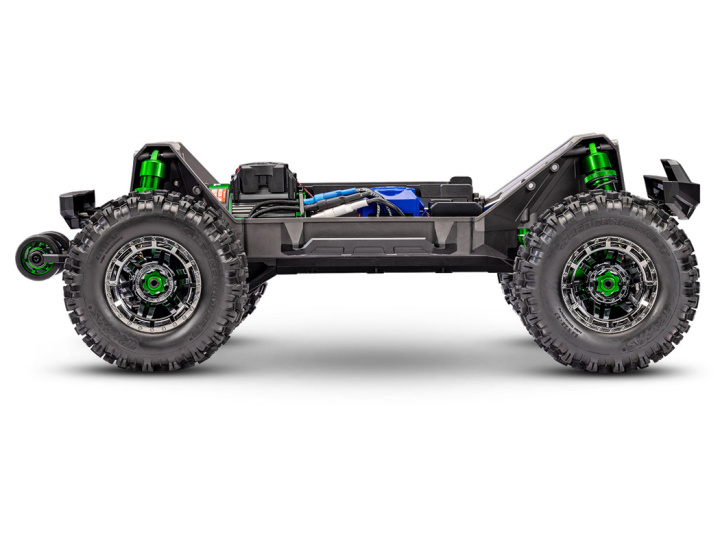

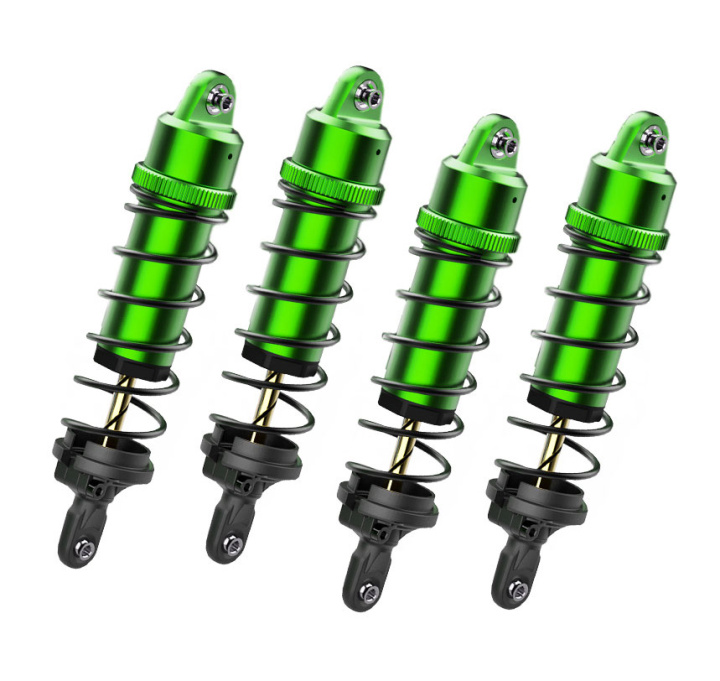

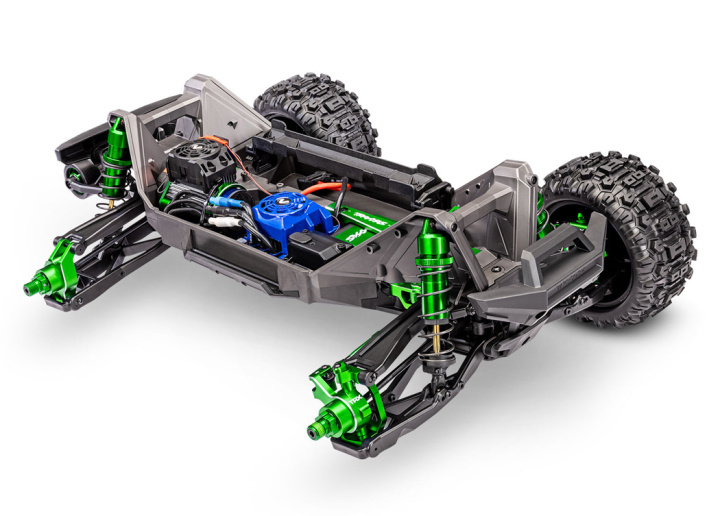

Maxx Ultimate receives substantial upgrades in key areas of performance: suspension, chassis, and driveline. Tough 6061-T6 aluminium chassis and suspension parts deliver bombproof strength with show-stopping looks. Steel CV driveshafts and Mod-1 steel gears offer maximum torque handling and durability.
Included Wireless Module
A Traxxas Link™ Wireless Module comes pre-installed in Maxx Ultimate’s TQi™ transmitter to take full advantage of the on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.
Sledgehammer Tires
Huge 5.6" Sledgehammer tires feature an aggressive open-block tread design that clears away mud and debris for unrivaled traction. New black chrome wheels give Maxx a menacing look to match its unrivaled performance. The 2.8" wheels utilize a splined 17mm hex mount for a stronger connection to the aluminium axles.
Maximum Steering Authority
With a staggering 46kg/cm of torque and full steel gears, the High Torque Maxx Servo gives Maxx Ultimate complete steering authority, even with its huge Sledgehammer tires. The case features an anodizes aluminium center section with cooling fins and ball bearings for increased precision.
What’s In The Box:
- Maxx Ultimate with Velineon® 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- TQi 2.4 GHz radio system with factory-installed wireless module
- Quick Start Guide
- High quality maintenance tools
What You’ll Need:
- LiPo Battery: Traxxas recommends a 4-cell 14.8 volt Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- Charger: LiPo Balance Charger with iD®
- Alkaline Batteries: Four AA alkaline batteries for the transmitter.
SPECS:
- Model Name: Maxx Ultimate
- Type: Monster Truck
- Top Speed: 96+ kph with 4s LiPo battery and optional gearing
- Model Skill Level: 4
- Scale: 1/10
- Weight: 4.63kg
- Length: 572mm
- Width: 405mm
- Height: 232mm
- Wheelbase: 352mm
- Center Ground Clearance: 67mm
- Drivetrain: Shaft-driven 4WD
- Transmission: Single speed
- Differential Type: Sealed, hardened steel bevel, limited slip
- Gear Ratio (Internal): 12.37:1
- Gear Pitch: 1.0 metric pitch
- Servo: 2085RL metal gear ultra-high-torque (46kg/cm)
- Radio System: TQi™ 2.4 GHz 2-channel transmitter with wireless module
- Battery Compartment Specs: 186x48x43mm
MOTOR SPECS:
- Motor Name: Velineon® 540XL
- Type: 2400Kv sensorless brushless
- Weight: 317g
- Length: 91mm
- Diameter: 36mm
- Shaft Size: 5mm
- Connector Type: 6.5mm bullet connectors
ESC SPECS:
- ESC Name: Velineon® VXL-4s
- Type: Brushless
- Motor Connectors: 6.5mm bullet connectors
- Battery Connectors: Traxxas High-Current Connectors
