Traxxas 85086-4-FOX1 – Unlimited Desert Racer 6S 4WD Brushless Pro Scale RTR – FOX1
Pro Scale® 4WD brushless desert race truck with Velineon® VXL-6s power system, factory-installed LED light kit, solid rear axle, TQi™ 2.4 GHz radio and Traxxas Stability Management (TSM®). Batteries and charger sold separately.

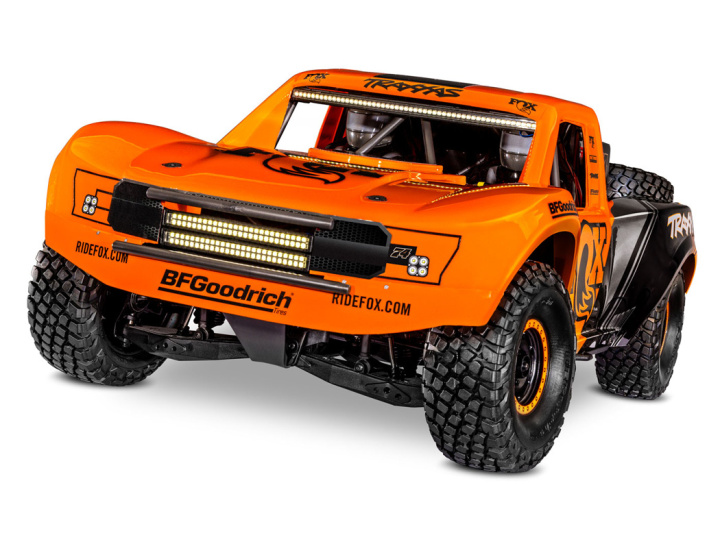

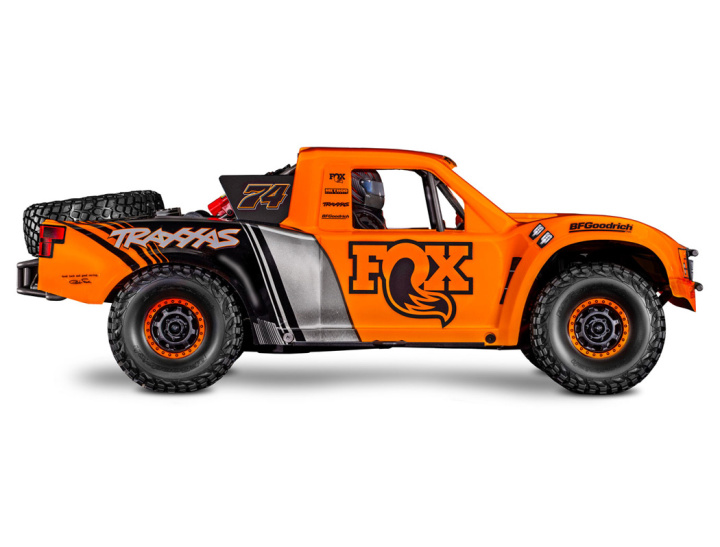

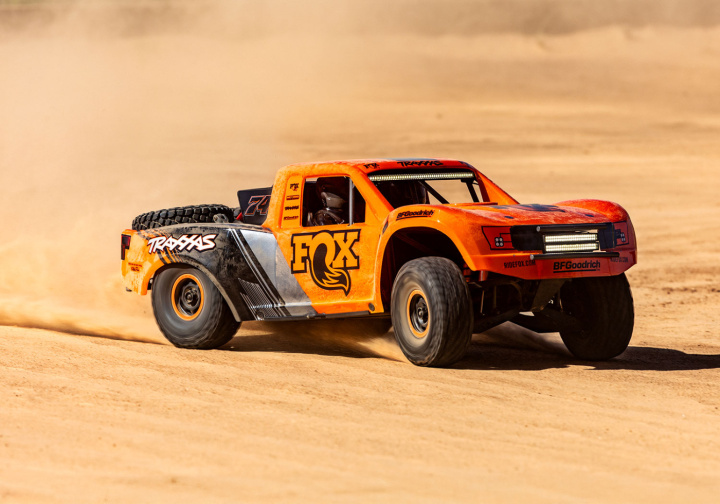

The Unlimited Desert Racer® drives like a real desert truck because it is engineered like one. A 4-link solid rear axle gives huge suspension travel with authentic driving dynamics, and the VXL-6s system gives 30+ mph (48+ km/h) on 4S LiPo and 50+ mph (80+ km/h) on 6S LiPo. The large Pro Scale® body has a tube frame, detailed cabin with driver figures, two functional spare tires and a factory-installed LED light kit with bumper light bars, roof light bar and brake lights. This version has the FOX1 livery.
Unlimited Desert Racer is rated skill level 5 and is intended for experienced drivers. Batteries and charger are not included. The truck takes one 4S LiPo or two 2S or 3S LiPo batteries, and Traxxas recommends the EZ-Peak® Live charger 2971.
Features

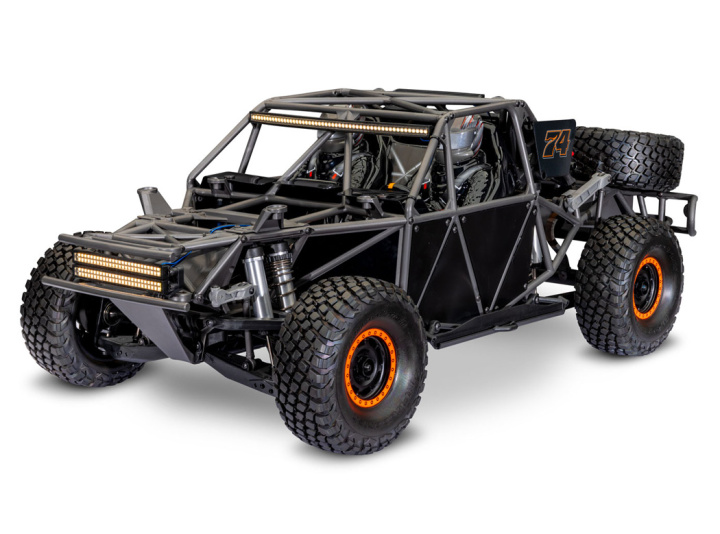

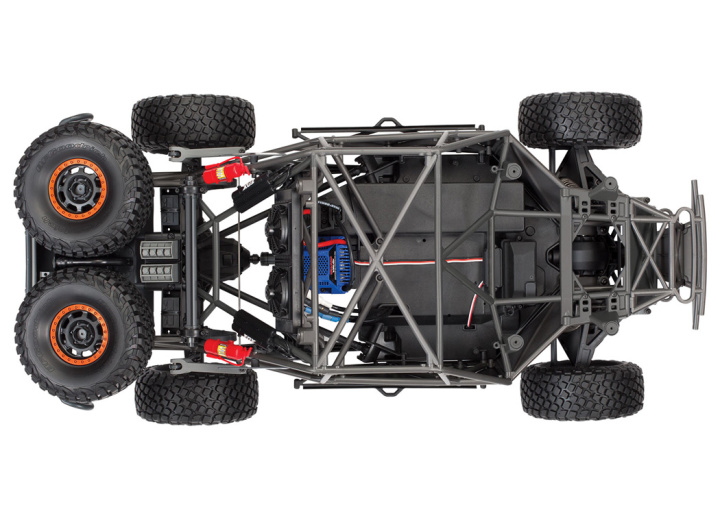

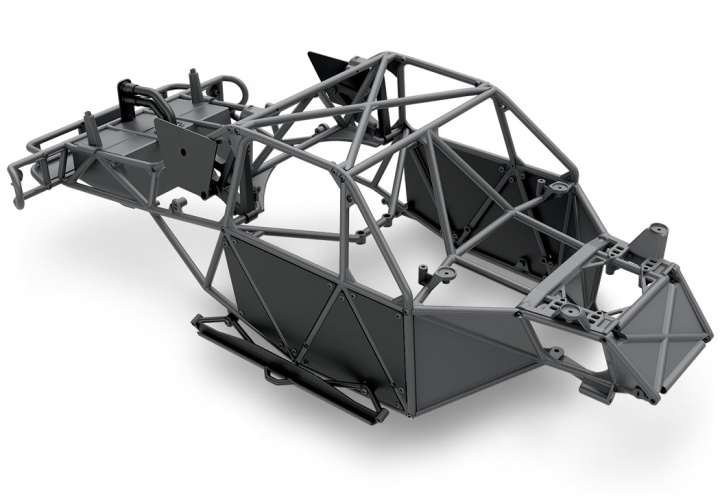

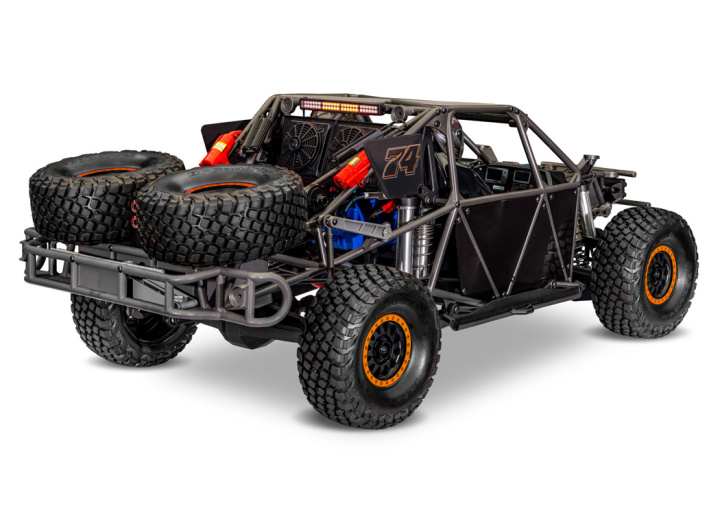

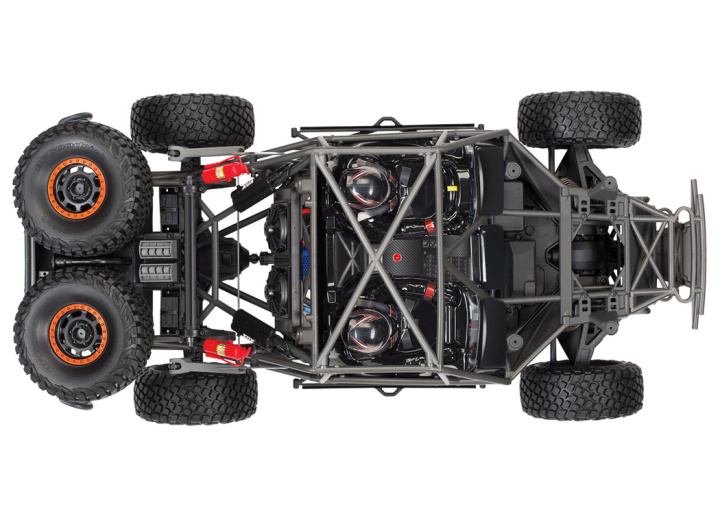

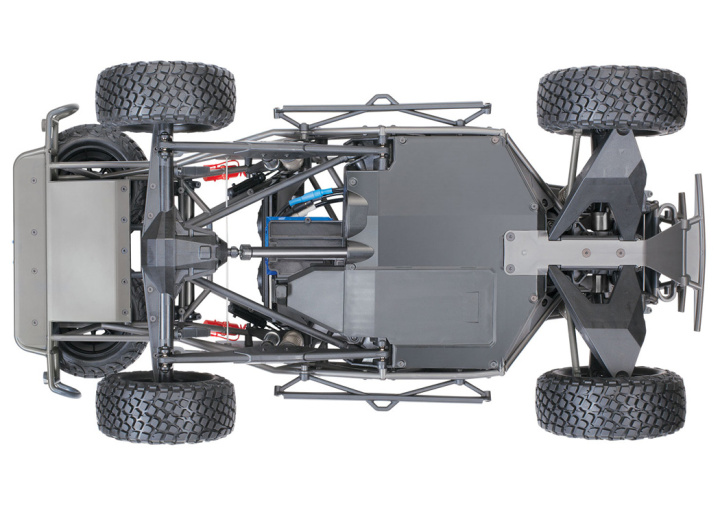

- Large Pro Scale® body with strong tube frame, detailed cabin with driver figures and replica parts such as fire extinguishers, shock reservoirs, jack and tools

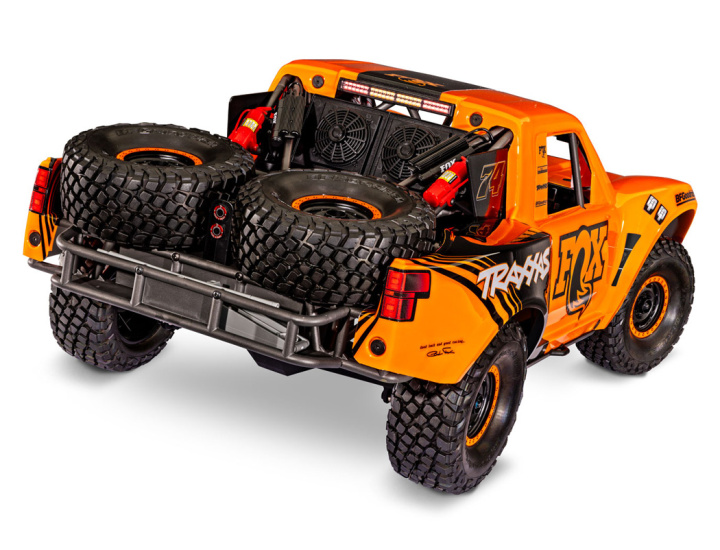

- Two functional spare tires, functional spare driveshaft and replica brake calipers and discs

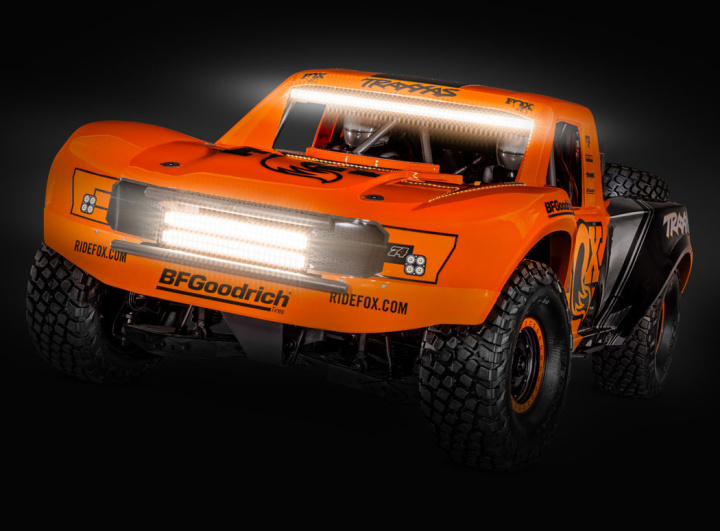

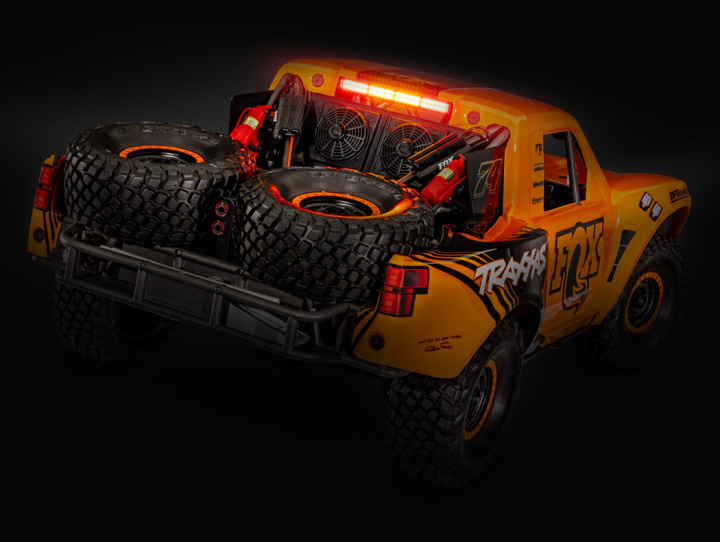

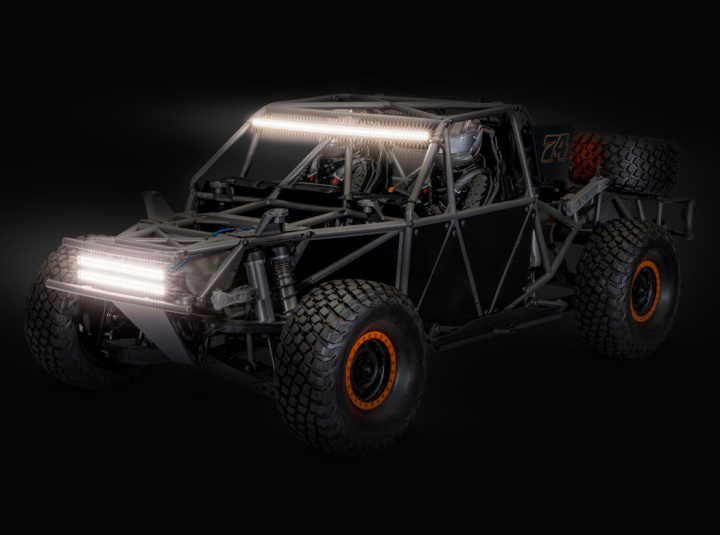

- Factory-installed LED light kit: two bumper light bars and a curved roof light bar with 52 LEDs each, plus red and amber brake and class lights

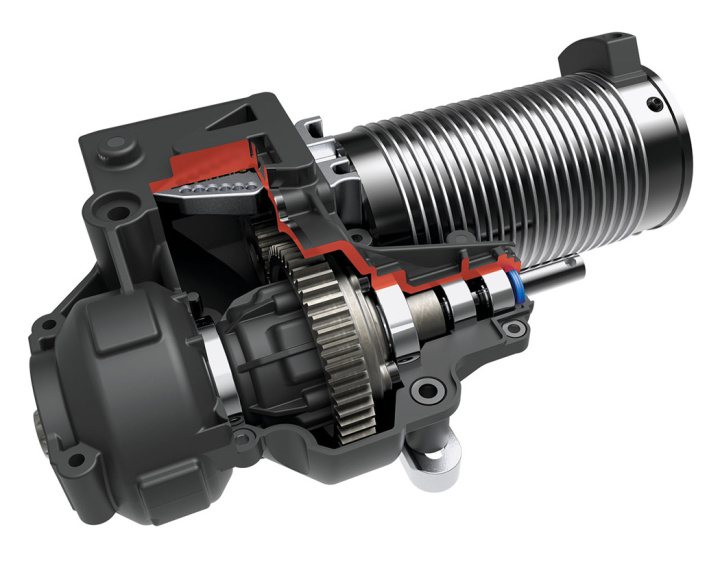

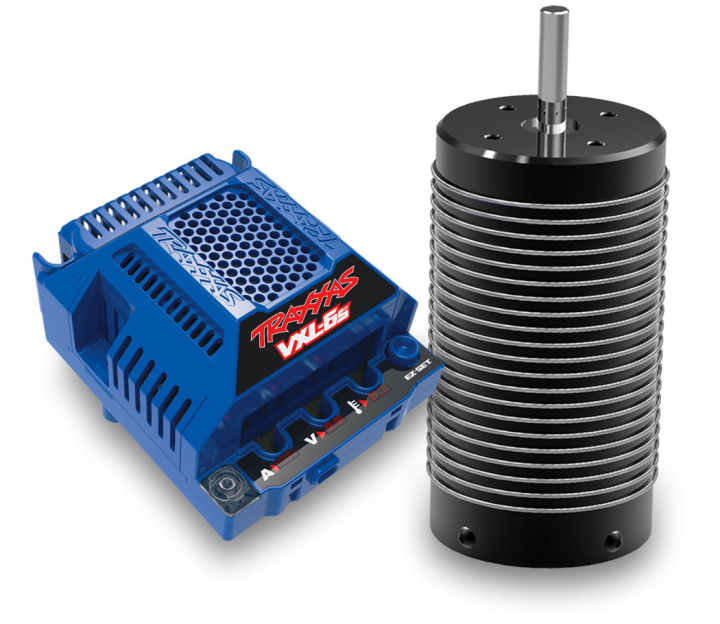

- Velineon® brushless motor, 4-pole 2200 Kv, with finned can and 5 mm shaft
- Waterproof VXL-6s™ ESC with cooling fan, real-time telemetry via Traxxas Link™, 3-LED status indicators and 10-gauge wire
- TQi™ 2.4 GHz radio with 5-channel receiver (6533) and Traxxas Stability Management® (TSM)

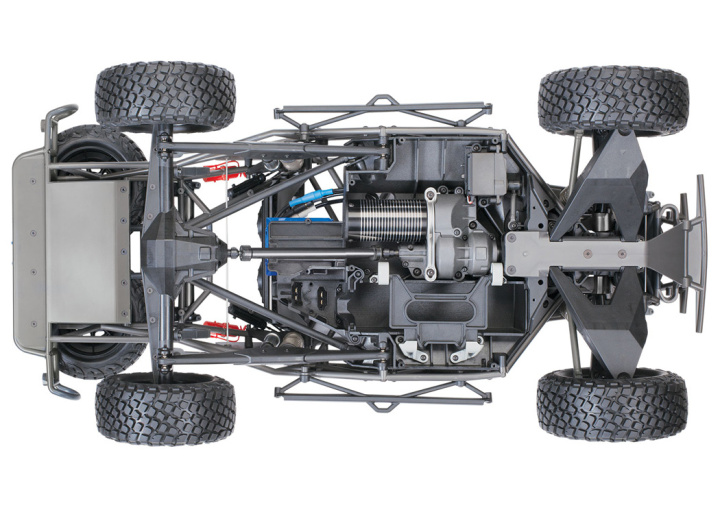

- Full-time 4WD with Torque-Biasing Center Drive, steel front CV driveshafts with 6 mm stub axles and steel straight rear axle
- Oil-filled limited-slip front differential and locked rear axle

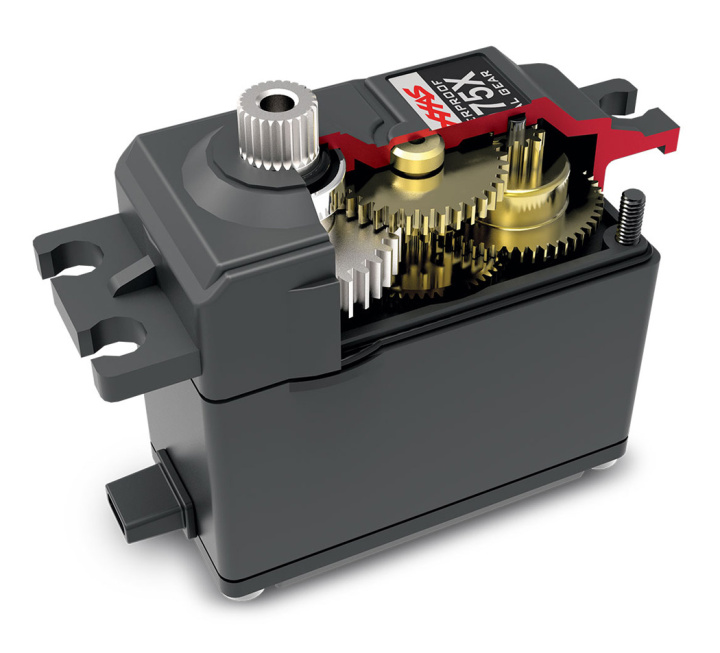

- Chassis-mounted 2270 metal-gear servo with dual bellcrank steering and integrated servo saver

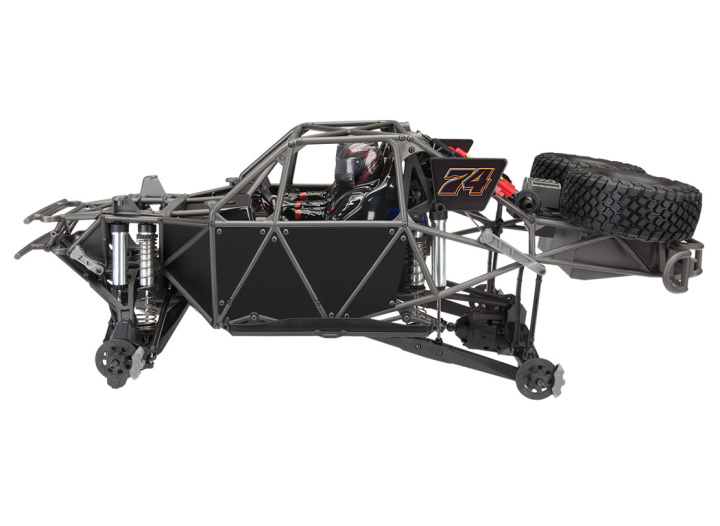

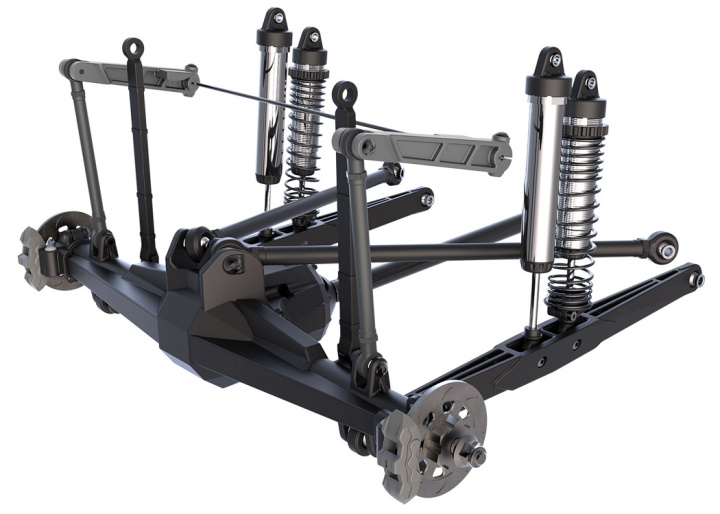

- Triangulated 4-link rear suspension with solid axle and three optional upper link positions

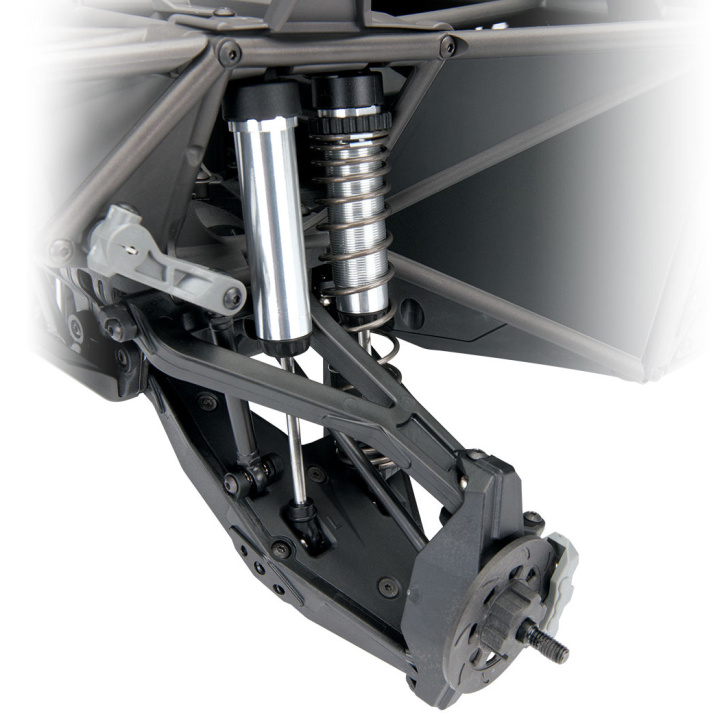

- Eight long-travel aluminum GTR shocks, four with springs and adjustable ride height collars, plus functional limit straps on the rear axle

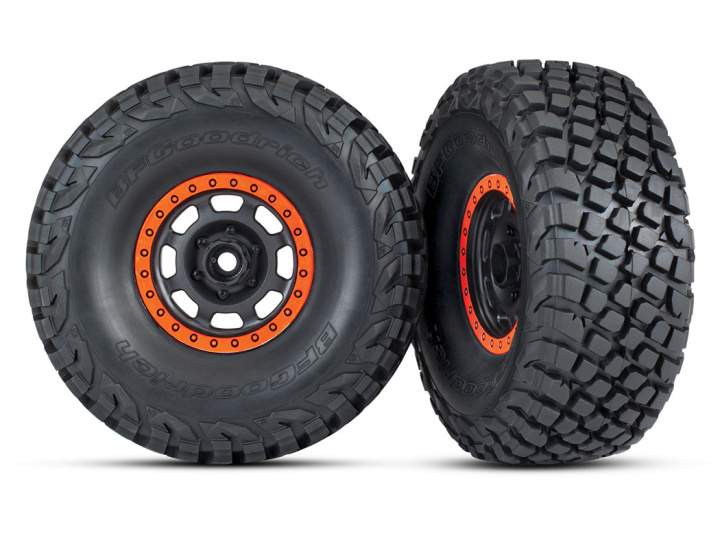

- Replica BFGoodrich® KR3 off-road tires on beadlock-style wheels
Included
- Unlimited Desert Racer with VXL-6s ESC and 2200 Kv brushless motor
- Factory-installed LED light kit
- TQi™ 2.4 GHz radio system with TSM®
- Quick start guide and maintenance tools
Required (not included)
- 1 x 4S LiPo, or 2 x 2S or 2 x 3S LiPo battery
- LiPo charger, for example Traxxas EZ-Peak® Live 2971
- 4 x AA alkaline batteries for the transmitter
Specifications
- Scale: Pro Scale®
- Type: Desert race truck, 4WD
- Skill level: 5
- Top speed: 30+ mph (48+ km/h) with 4S LiPo, 50+ mph (80+ km/h) with 6S LiPo
- Length: 694 mm
- Width / track: 345 mm
- Height: 261 mm
- Wheelbase: 420 mm
- Ground clearance: 58 mm
- Weight: 6.1 kg
- Driveline: Shaft-driven 4WD, direct drive with Torque-Biasing Center Drive
- Differentials: Sealed 4-gear (front and center), locked spool (rear)
- Gear pitch: 32 pitch
- Steering servo: 2270, metal gears, digital, waterproof
- Motor: Velineon® 2200 Kv, sensorless brushless
- ESC: VXL-6s™, brushless, waterproof
- Battery: Not included (4S or 2 x 2S/3S LiPo)
- Battery compartment: 181 x 46 x 56 mm
- Radio system: TQi™ 2.4 GHz with TSM®
