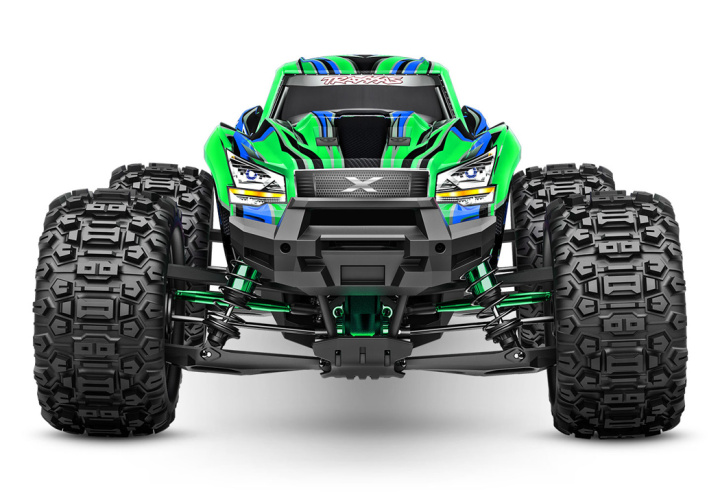

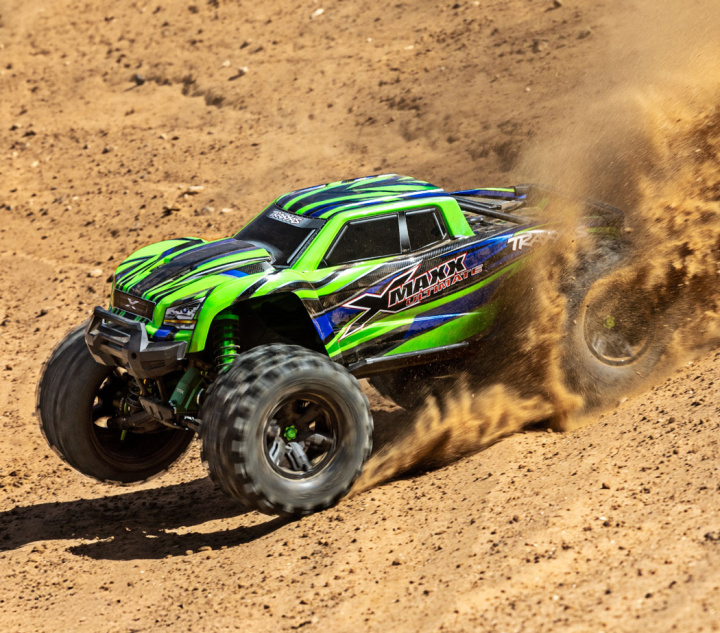

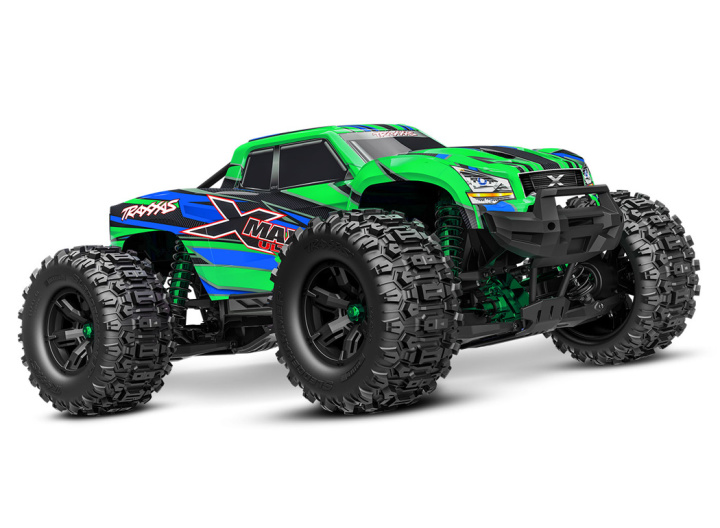

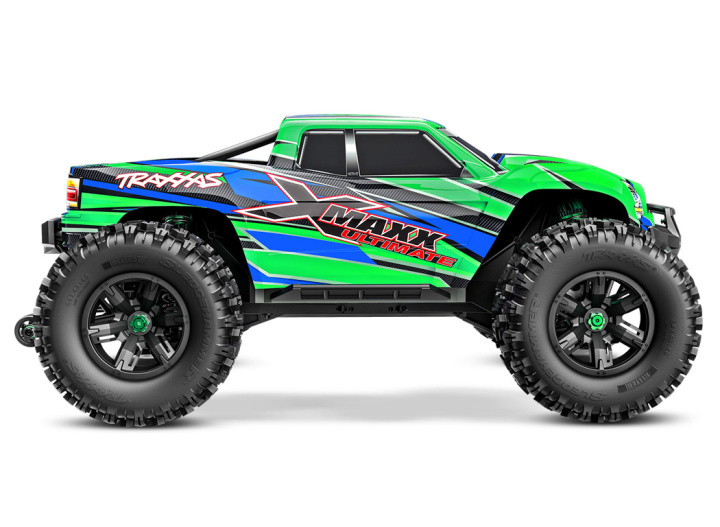

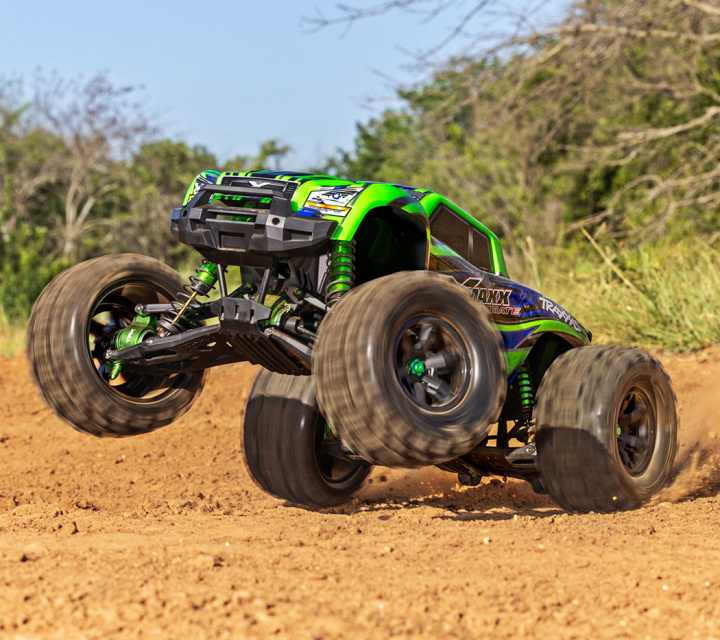

Traxxas 77097-4-GRNX - X-Maxx ULTIMATE 4WD Brushless TQi TSM GREEN-X Limited Edition
Ultimate Toughness
X-Maxx® is the truck that redefined Traxxas Tough. X-Maxx Ultimate combines that legendary toughness with over $1,000 in aluminum upgrades and performance parts for maximum strength and precision. The 2025 X-Maxx Ultimate goes even further with new bold graphics, upgraded axles, and our most powerful steering servo. Don’t miss your chance to own the Ultimate monster truck!
Ultimate Durability

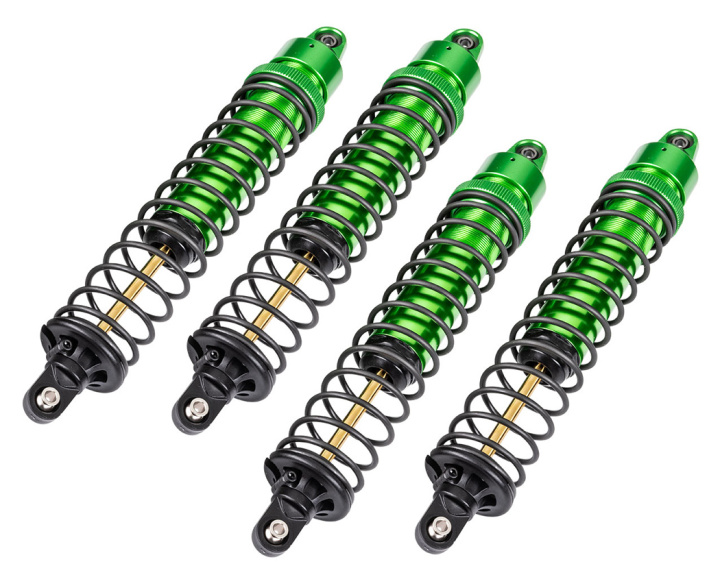

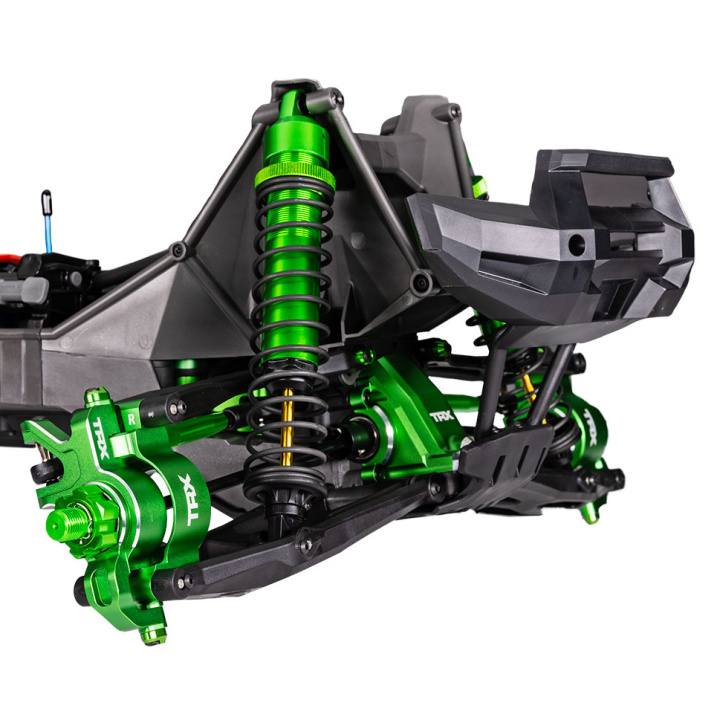

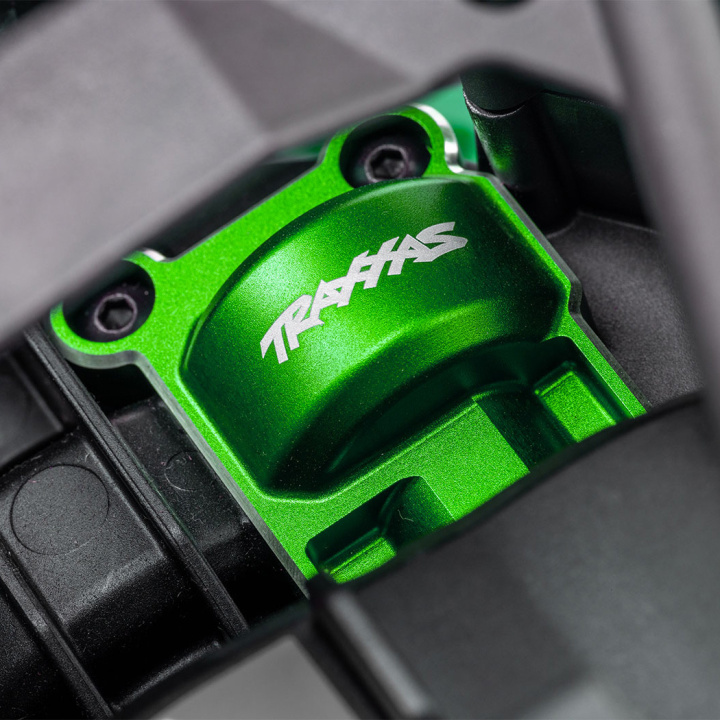

How do you improve the toughest truck ever to wear the Traxxas name? You add aluminum—lots of aluminum! X-Maxx Ultimate receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of strength and durability.
Included Wireless Module
A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.
Belted Tires
X-Maxx Ultimate’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

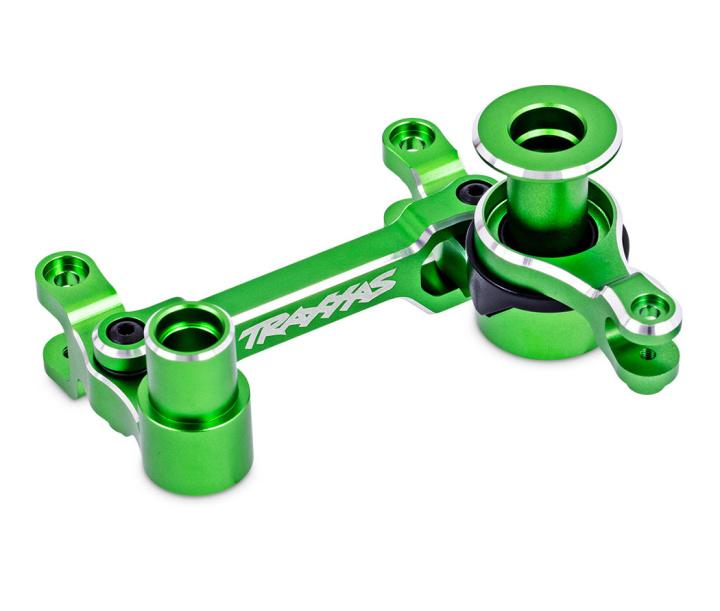

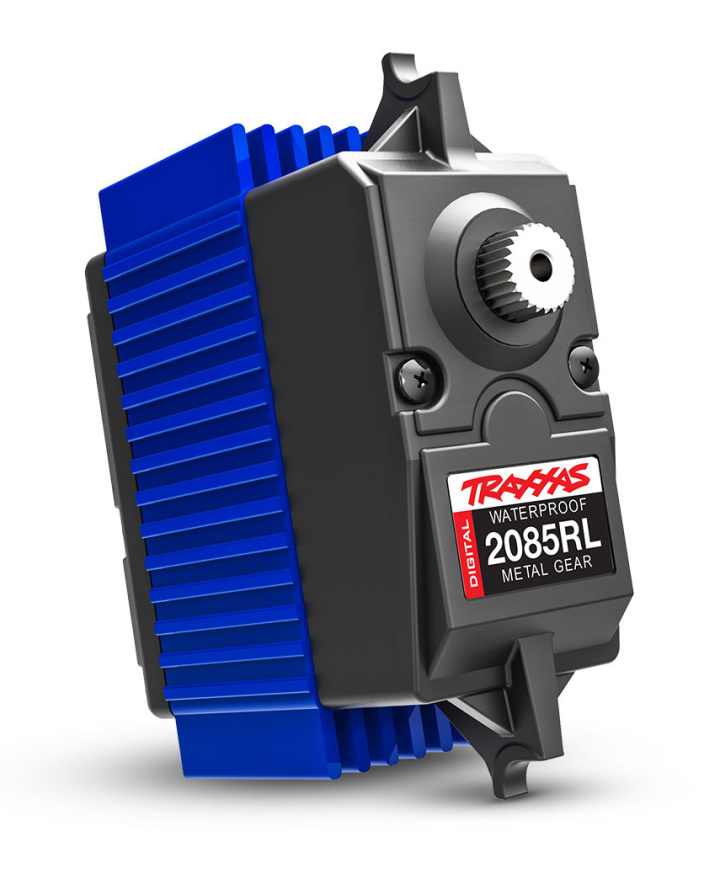

Maximum Steering Authority
With a staggering 46.8kg/cm torque and full steel gears, the High Torque Maxx Servo gives X-Maxx Ultimate complete steering authority on even the largest Sledgehammer® tires. The case features an anodized aluminum center section with cooling fins and ball bearings for increased precision.
What’s In The Box:
- X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system with factory-installed wireless module
- High quality maintenance tools
What You’ll Need:
- Batteries: Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (part 2997)
- Charger: 4s LiPo Balance Charger with iD®
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
Truck Specs:
- Model Name: X-Maxx Ultimate
- Model Type: Monster Truck
- Top Speed: 80+ kph with two 4s LiPo batteries and optional speed gear (sold separately)
- Skill Level: 6
- Scale: X-Truck®
- Weight: 9.5 kg
- Length: 779 mm
- Width: 540 mm
- Height: 355 mm
- Wheelbase: 480 mm
- Center Ground Clearance: 107 mm
- Drivetrain: Shaft-driven 4WD
- Transmission: Single speed
- Differential Type: Sealed, hardened steel bevel, limited slip
- Gear Ratio (Internal): 8.11 (stock, out-of-box)
- Gear Pitch: 1.0 metric pitch (Mod 1)
- Steering Servo: 2085RL metal gear ultra-high-torque waterproof
- Radio System: TQi™ 2.4 GHz 2-channel transmitter with wireless module
- Battery Compartment Specs: L197 x W52 x 44 mm
MOTOR SPECS:
- Motor Name: Velineon® 1200XL
- Motor Type: 1275 Kv sensorless brushless
- Motor Length: 110 mm
- Motor Diameter: 48 mm
- Motor Shaft Size: 5 mm
- Motor Connector Type: 6.5 mm bullet connectors
ESC SPECS:
- ESC Name: Velineon® VXL-8s™
- ESC Type: Brushless
- Motor Connectors: 6.5 mm bullet connectors
- Battery Connectors: Traxxas High-Current Connectors
- ESC Power Wire: 10 gauge Maxx® Cable
