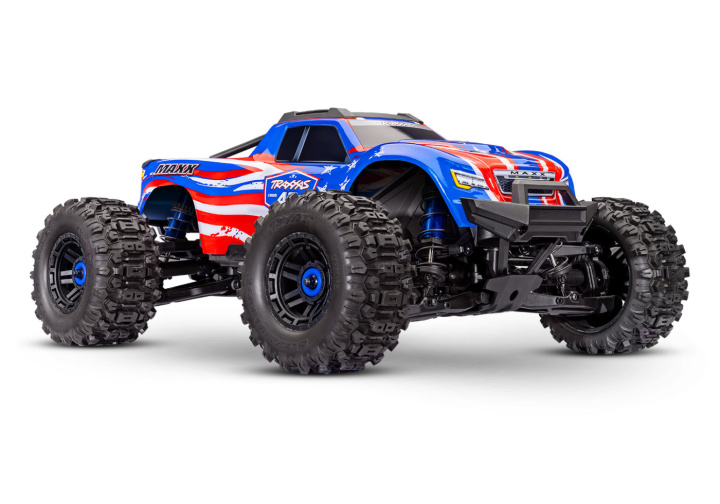

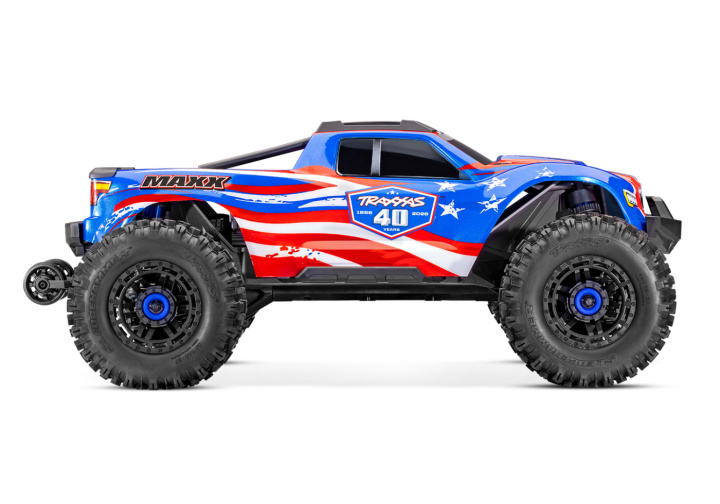

To mark 40 years of Traxxas (1986–2026), Maxx is available as a 40th Anniversary Limited Edition with exclusive red, white and blue anniversary graphics and the Traxxas “40 Years” emblem. The edition is produced for a limited period only. Technically it is identical to the standard Maxx with WideMaxx.
Maxx takes the design principles and strength of the larger X-Maxx® and packs them into a lighter, more compact 1/10 scale truck. WideMaxx® suspension and Sledgehammer® tires come factory fitted, and the 4S brushless power system delivers 88+ km/h out of the box and 96+ km/h with optional gearing.
Features
- 40th Anniversary graphics on a painted, reinforced clipless body
- Velineon® 540XL brushless motor, 2400 Kv, 5 mm shaft, aluminium heat sink and cooling fan
- VXL-4s™ waterproof ESC for 3S–4S LiPo with cooling fan and built-in telemetry (speed, temperature, voltage)
- WideMaxx® double-shear suspension arms – 40 mm wider for improved stability and cornering
- GT-Maxx® shocks with threaded aluminium bodies and large-diameter shafts
- Sledgehammer® tires on 2.8" wheels with 17 mm hex, pre-glued with foam inserts, TSM® rated
- Shaft-driven 4WD with Torque-Biasing Center Drive™, Cush Drive™ and sealed, oil-filled steel gear differentials

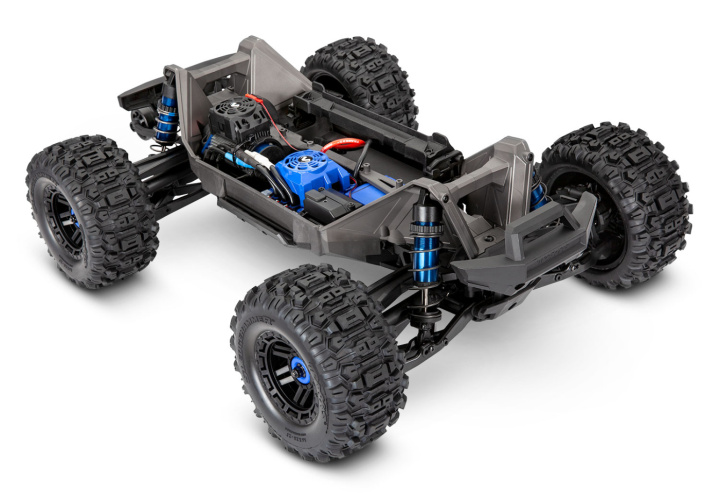

- Extended modular composite chassis – accepts the Traxxas 6700 mAh 4S LiPo
- Traxxas Stability Management® (TSM®), adjustable from off to 100 % from the transmitter
- Traxxas Self-Righting – uses 4S power to flip the truck back onto its wheels
- 2090 digital high-torque waterproof steering servo (285 oz-in / approx. 20.5 kg-cm)
- Integrated wheelie bar with carry handle, energy-absorbing front and rear bumpers
- Fully waterproof electronics and full-contact sealed bearings in exposed locations
- TQi™ 2.4 GHz radio system, Traxxas Link™ enabled (Wireless Module 6511 sold separately)
Included
- Maxx with WideMaxx 40th Anniversary Edition, Ready-To-Race®, with 540XL brushless motor
- VXL-4s waterproof ESC with integrated telemetry
- TQi™ 2.4 GHz radio system
- Maintenance tools
Required (not included)
- LiPo battery: 4S 14.8 V Traxxas Power Cell LiPo for full performance (3S 11.1 V works with reduced performance). NiMH batteries are not supported.
- LiPo balance charger with iD™ – Traxxas EZ-Peak® Live (2971) recommended
- 4 × AA batteries for the transmitter
Specifications
- Scale: 1/10
- Type: Monster truck, 4WD
- Top speed: 88+ km/h out of the box, 96+ km/h with optional gearing (4S LiPo)
- Length: 572 mm
- Width: 405 mm
- Height: 232 mm
- Wheelbase: 352 mm
- Ground clearance: 67 mm
- Weight: 4.7 kg
- Transmission: Single speed, internal gear ratio 12.37:1
- Differentials: Sealed, hardened steel bevel gears, limited slip
- Gear pitch: Module 1.0
- Motor: Velineon 540XL, 2400 Kv sensorless brushless, 91 × 36 mm, 317 g, 6.5 mm bullet connectors
- ESC: Velineon VXL-4s, 3S–4S LiPo, 72 × 59 × 49 mm, 201 g, Traxxas High-Current Connector
- Radio system: TQi™ 2.4 GHz with TSM® receiver
- Battery compartment: 186 × 48 × 43 mm
- Skill level: 4
